Certified JBL Synthesis Dolby Atmos Surround System Delivers an Immersive Audio Experience for Thanh Tung Audio’s New Showroom in Ho Chi Minh City

Hearing Is Believing

Certified JBL Synthesis Dolby Atmos Surround System Delivers an Immersive Audio Experience for Thanh Tung Audio’s New Showroom in Ho Chi Minh City

Description of Project:

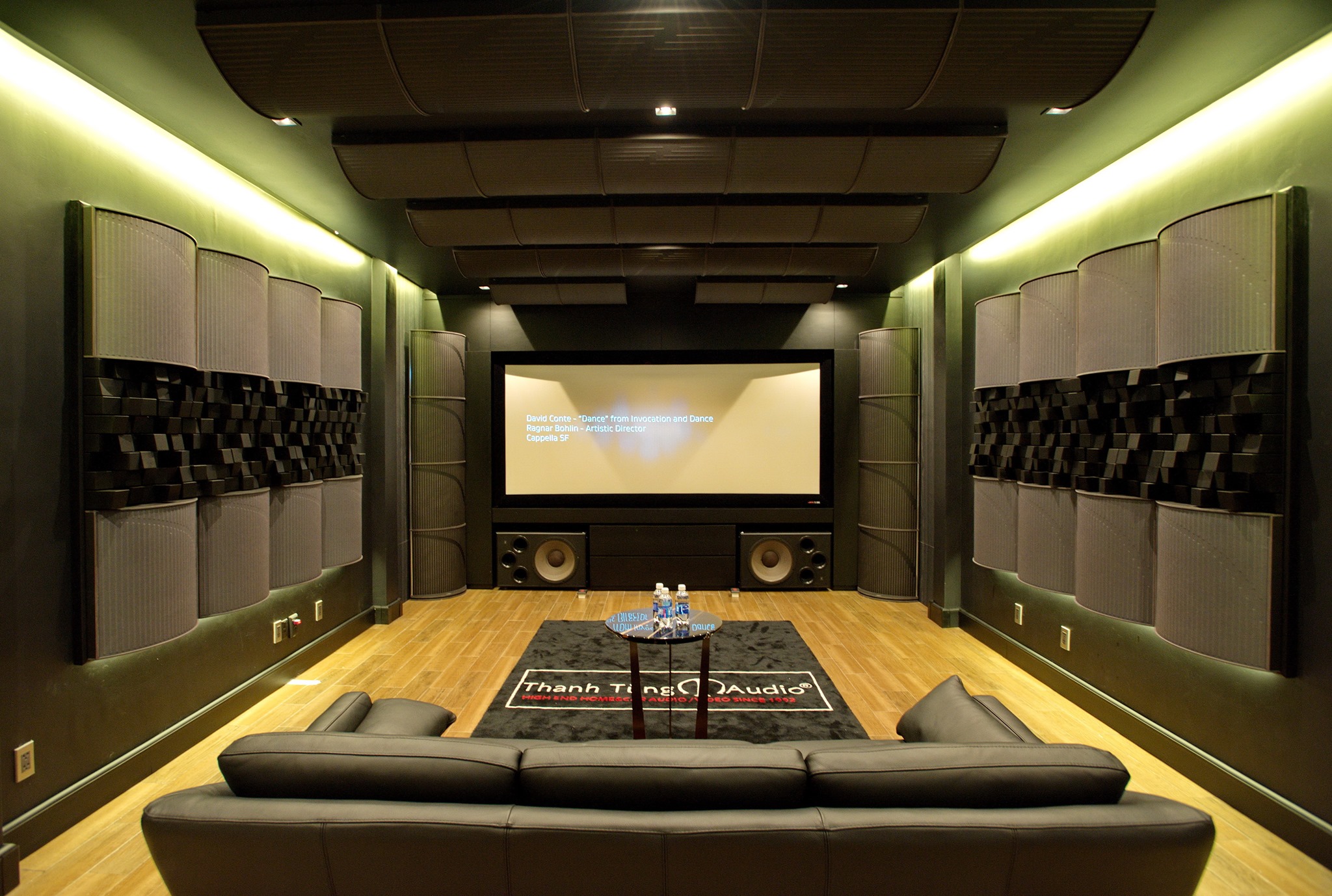

In April 2020, Thanh Tung Audio — a Vietnamese specialist in home and car audio — broke ground on a new showroom in Ho Chi Minh City. The high-end space was designed to provide the company’s customers with the ultimate environment for experiencing HARMAN Luxury Audio’s solutions for home theater and stereo listening. The dazzling new showroom consists of seven separate listening rooms. Two are dedicated to home theater, one to stereo listening, and three feature both. In these rooms, Thanh Tung Audio’s customers can experience a range of speakers, subwoofers, amplifiers, processors, and more from JBL Synthesis, Mark Levinson, Revel, JBL, and ARCAM. The crown jewel of the showroom, however, is the JBL Synthesis Experience Center, a high-end home theater featuring a certified JBL Synthesis Dolby Atmos surround system that delivers an immersive audio experience.

Challenge

“HARMAN Luxury Audio’s brands have been headlining our lineup of high-end home audio solutions since 2006,” said Nguyen Thanh Tung, manager, Thanh Tung Audio. “With Vietnam rapidly transforming into a tech hub akin to Singapore, it has become increasingly important for us to provide new and existing customers across the Southeast Asia region with a unique space to experience these products first-hand for both analog and digital audio, whether it’s watching a movie, streaming HiFi music, or enjoying jazz or classical music on vinyl. As the star of the show, we wanted the top of the line in our Experience Center. We needed a complete system that could be custom tailored to the Center’s size and acoustics to deliver a jaw-dropping immersive audio experience for visitors. To meet these requirements, JBL Synthesis was an easy choice.”

Solution

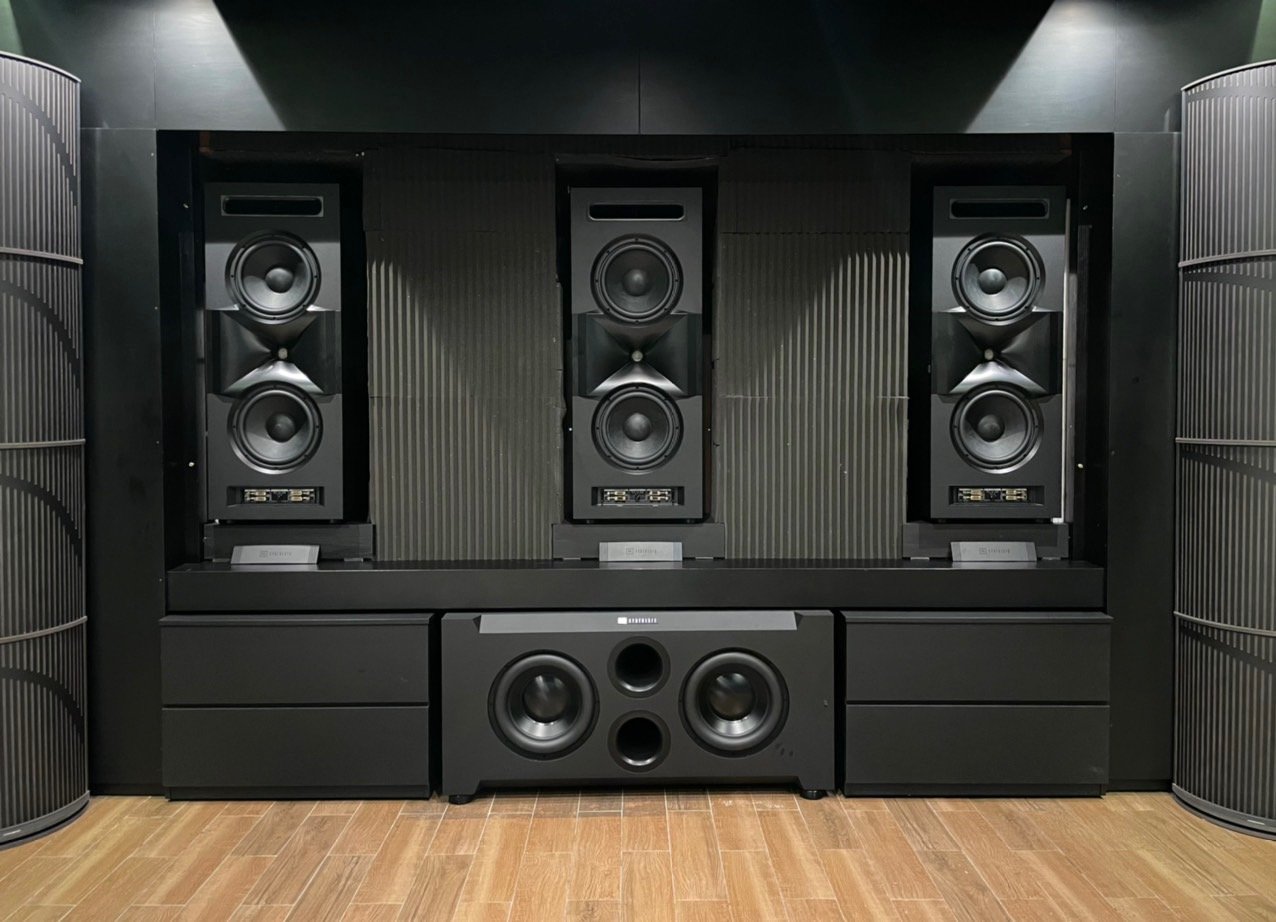

In the JBL Synthesis Experience Center, Thanh Tung Audio is utilizing three of the flagship SCL-1 dual 12-inch LCR loudspeakers for the theater’s front right, left, and center channels. Four SCL-4 2-way in-wall speakers are being used for the surround channels, while four SCL-5 2-way in-ceiling speakers deliver the Dolby Atmos experience. The SCL-1 utilizes the patented JBL D2430K dual 3-inch compression driver tweeter with its HDI waveguide and 12-inch cast-frame woofers, while the SCL-4 and SCL-5 utilize the patented JBL 2410H 1-inch compression driver and 7-inch Advanced Aluminum Matrix cone woofers. The result is a seamless surround sound experience that covers the entire room.

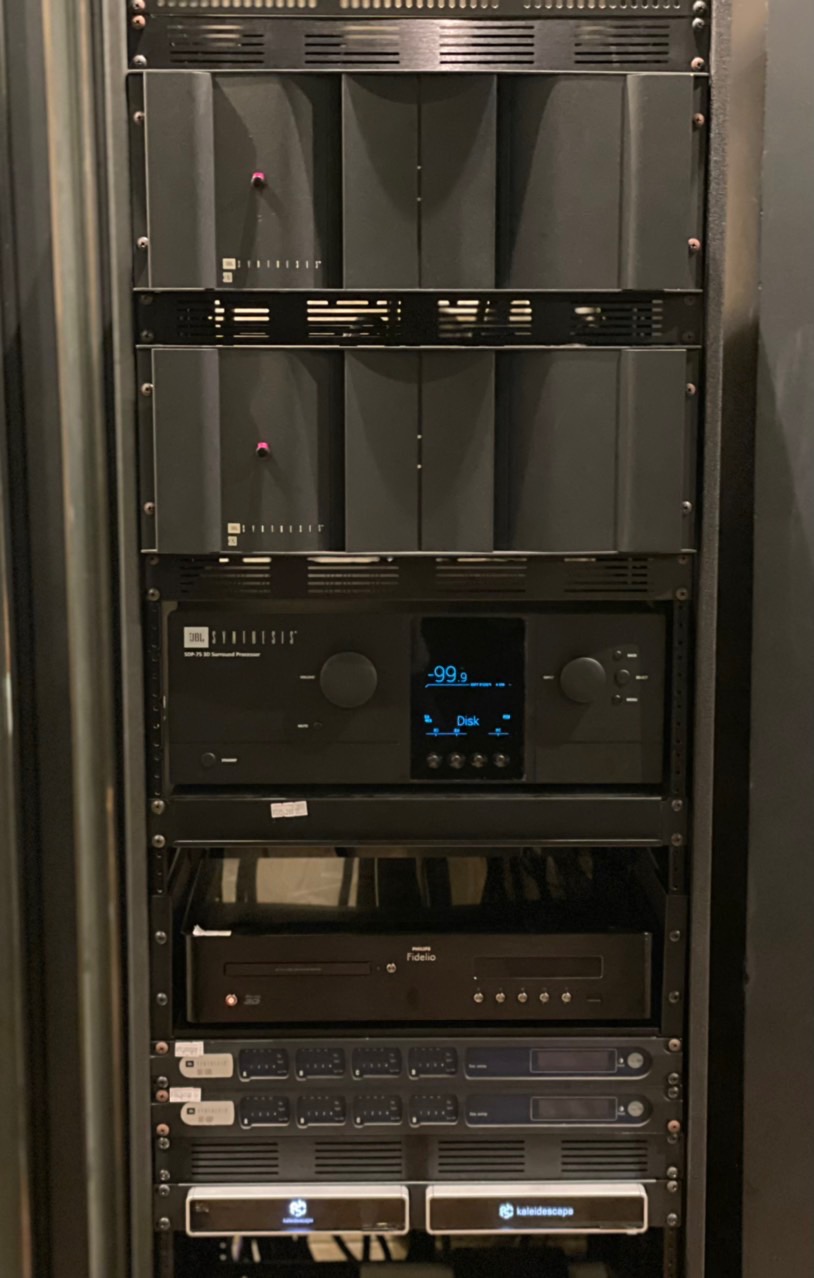

To deliver powerful bass, Thanh Tung Audio is relying on JBL Synthesis’ flagship SSW-1 dual 15-inch passive subwoofer. The system is completed by an SDP-75 immersive surround sound processor, seven S820 stereo audio amplifiers, a SDEC-4500P 12-channel digital equalizer, and a DSi 2.0 MA4-D 4-channel power amplifier. The company calibrated the surround system using the SDP-75’s built-in room calibration function.

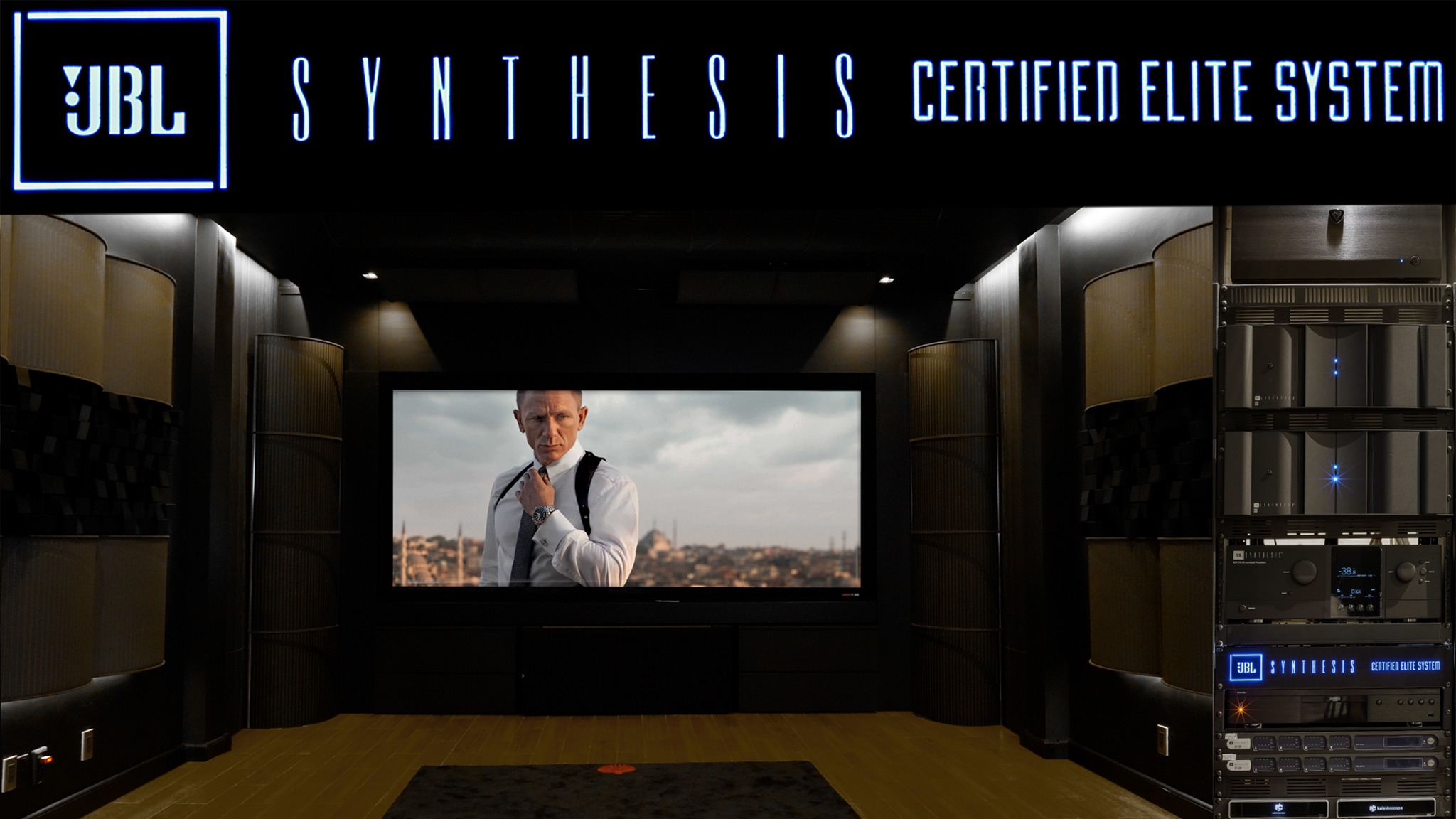

For certification, HARMAN Luxury Audio offers JBL Synthesis Certified System and Certified Elite System certification programs for systems ranging from small-scale, intimate rooms to large-scale, high-channel-count immersive spaces. The program mandates specified calibration services and processes, while acoustically proven tuning methods guarantee in-room performance. The Certified Elite System program is designed for more challenging room environments and more expansive and complex setups, such as the system in the JBL Synthesis Experience Center. In fact, Thanh Tung Audio’s immersive surround system is one of the first in the world to earn the custom, laser-etched face plate denoting its status as a Certified Elite System.

Results

“Our new showroom officially opened in January of last year, and our customers have been thrilled with the new space and the unique experiences it offers them,” added Thanh Tung. “Not surprisingly, our JBL Synthesis Experience Center quickly became the main attraction. A must-see for everyone who passes through our doors, the Center’s certified JBL Synthesis Dolby Atmos surround system was expertly calibrated to guarantee exceptional performance for every seat in the house, and we continually adjust the system with the SDP-75’s built-in room calibration function to maintain the level of audio quality our visitors have come to expect. A powerful promotional tool, not only does the certified system allow us to deliver the wow factor that helps set us apart in an increasingly competitive market, but it also reaffirms our position as a leading audio provider.”

List of HARMAN Luxury Audio products used:

• - 3 x JBL Synthesis SCL-1 2-way dual 12-inch speakers
• - 4 x JBL Synthesis SCL-4 2-way 7-inch in-wall speakers
• - 4 x JBL Synthesis SCL-5 2-way 7-inch in-ceiling speakers
• - 1 x JBL Synthesis SSW-1 15-inch passive subwoofer
• - 1 x JBL Synthesis SDP-75 immersive surround sound processor
• - 7 x JBL Synthesis S820 stereo audio amplifier
• - 1 x JBL Synthesis SDEC-4500P 12-channel digital equalizer
• - 1 x JBL DSi 2.0 MA4-D 4-channel power amplifier
