SCL-10XL

2 -way Dual 10 -inch Built-In Loudspeaker

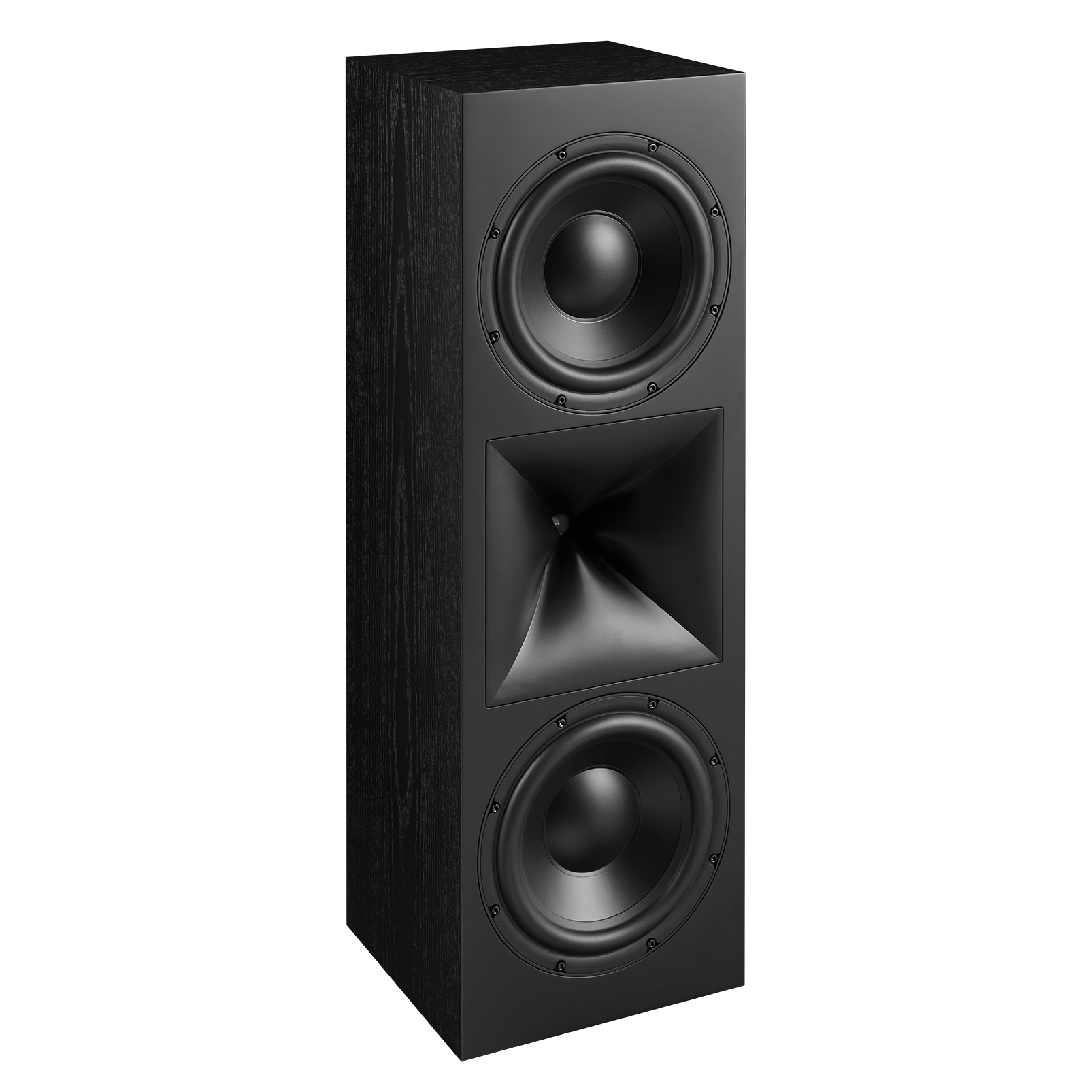

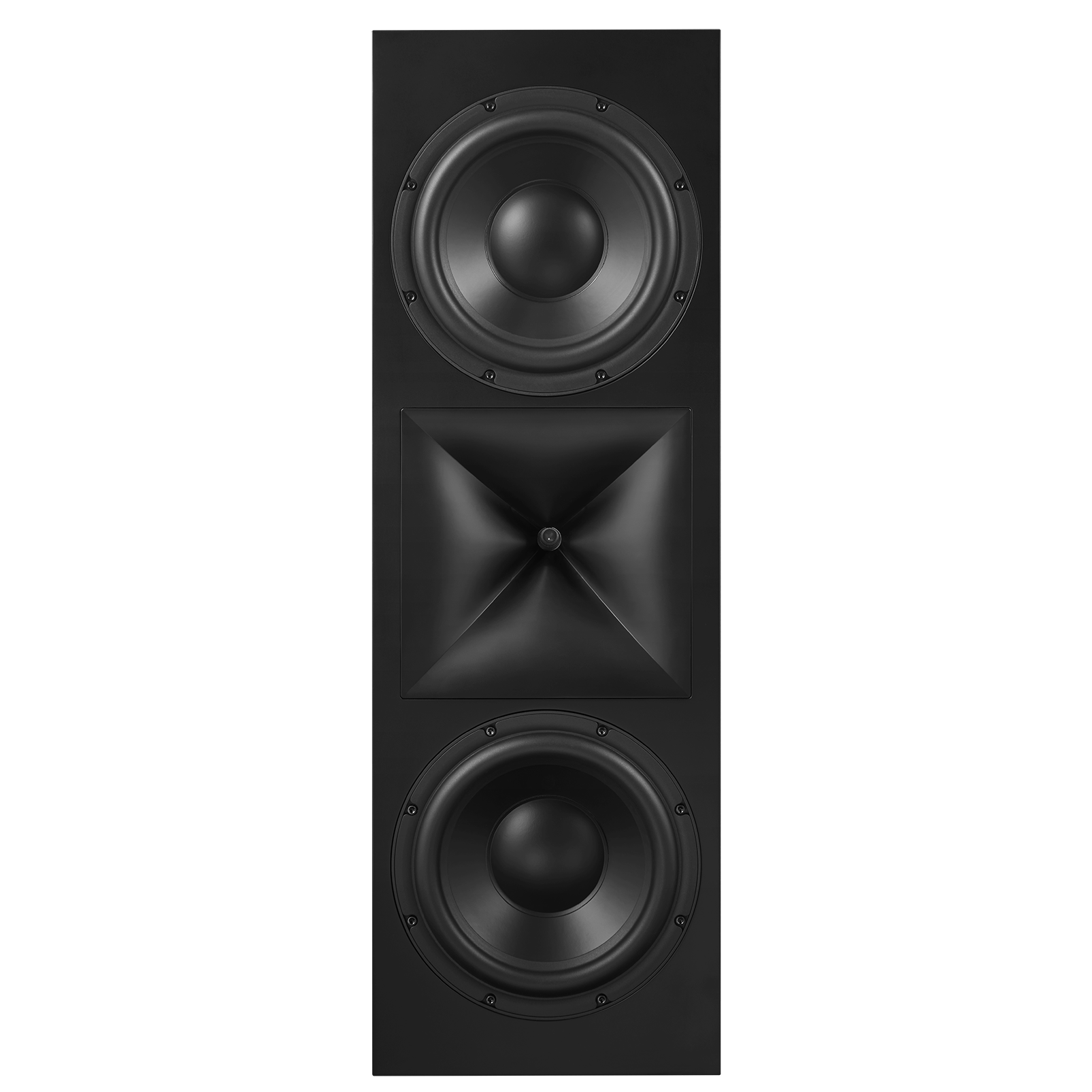

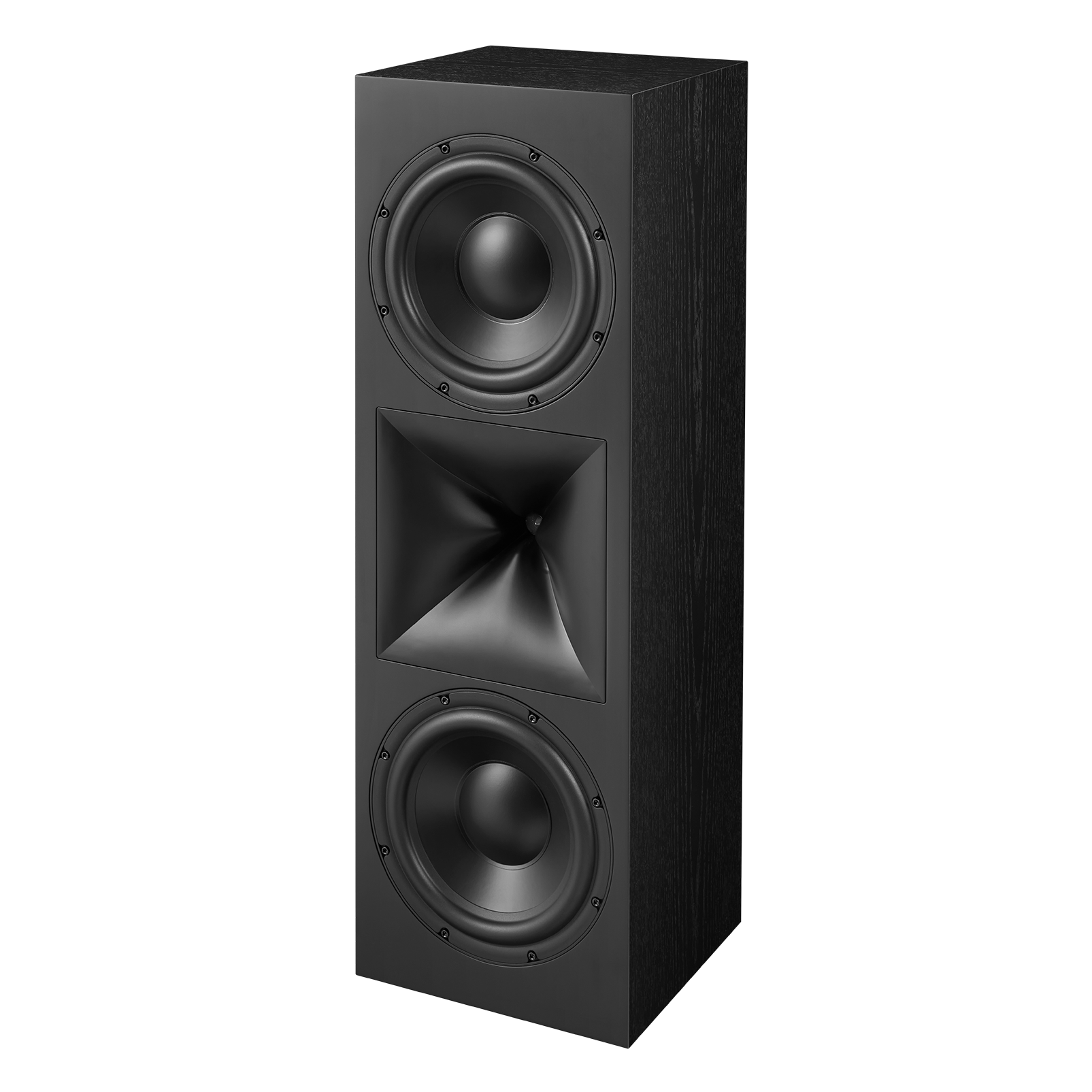

The SCL-10XL is a custom in-room/built-in loudspeaker designed as a built-in solution as LCR behind a projection screen, or in-room in custom cabinetry vertically or horizontally. It features JBL’s patented D2815K 1.5-inch (38mm) compression driver mated to a High-Definition Imaging (HDI™) horn. Dual 10-inch (250mm) Carbon Cellulose Composite Cone (C4) cast-frame woofers operate in a 2 -way network configuration allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. The SCL-10XL delivers unparalleled performance in a wide variety of applications and is ideal for use in medium, large, and extra-large rooms.

Find a Dealer

SCL-10XL - Black - 2 -way Dual 10 -inch Built-In Loudspeaker - Hero

Patented D2815 1.5-inch (38mm) dual diaphragm, dual motor compression driver

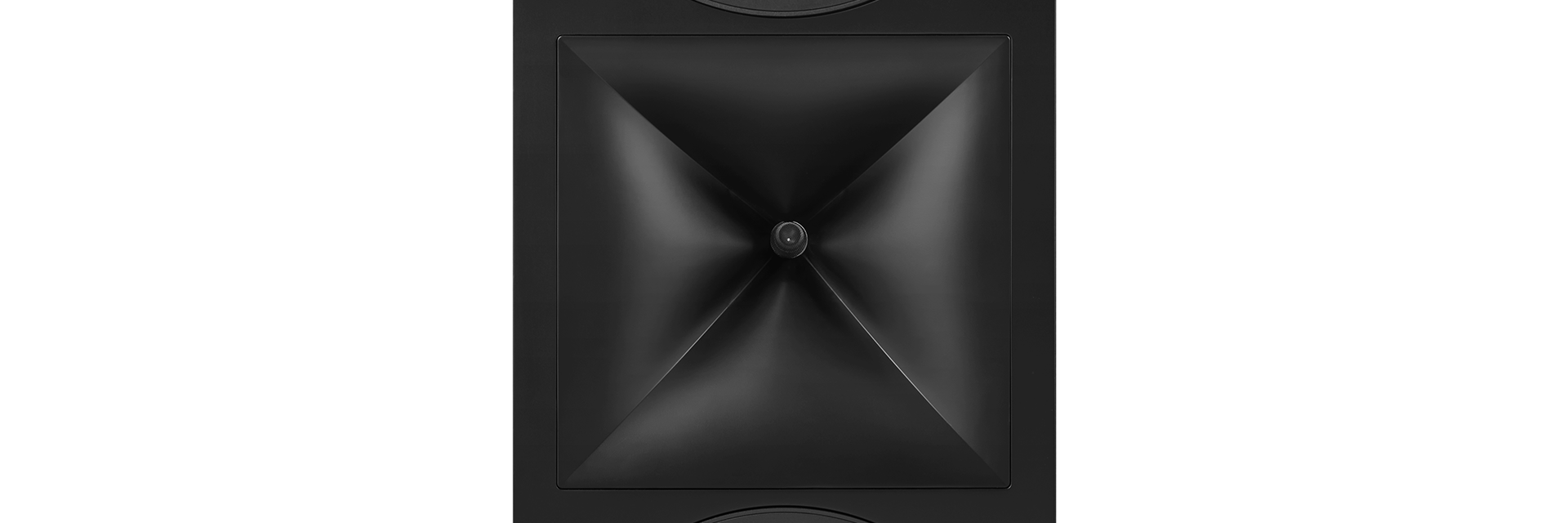

Patented High-Definition Imaging (HDI™) waveguide geometry

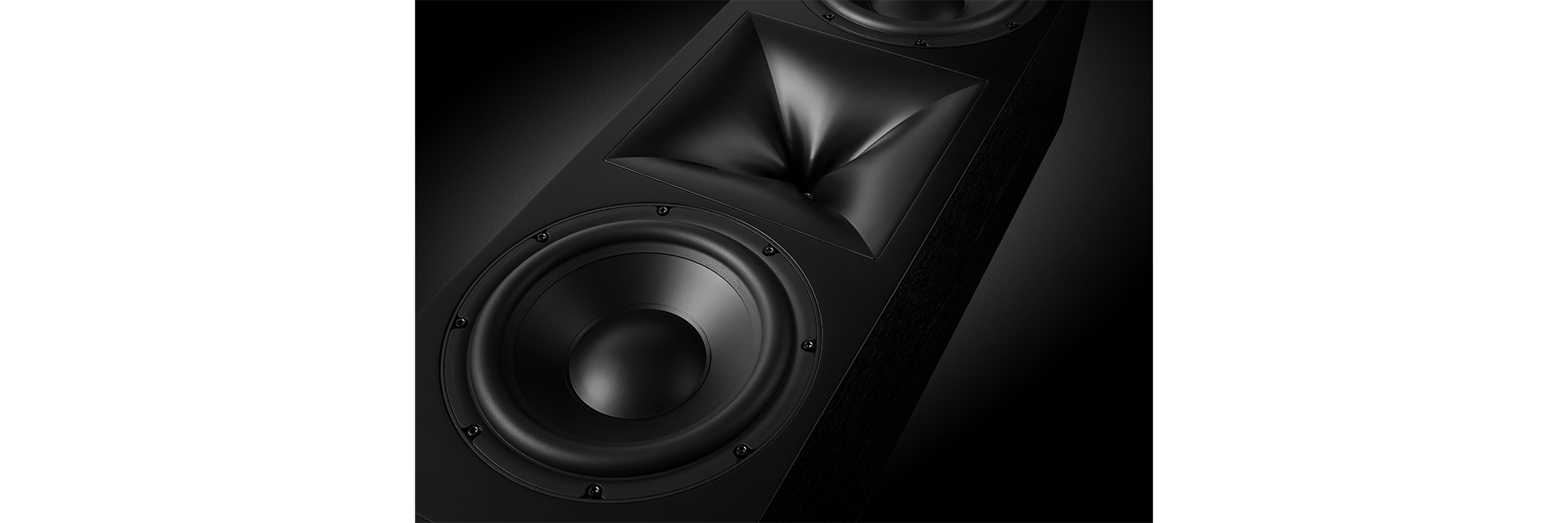

Dual 10-inch (250mm) Carbon Cellulose Composite Cone (C4), cast-frame woofers

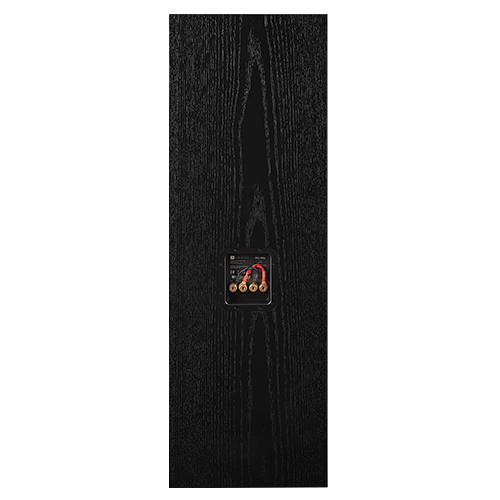

Advanced MultiCap crossover network with bi-wire/bi-amp capability

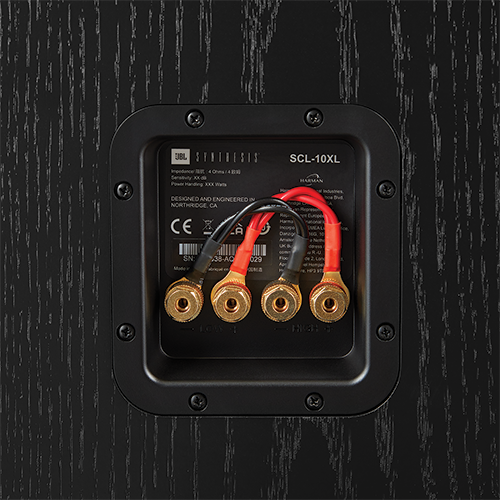

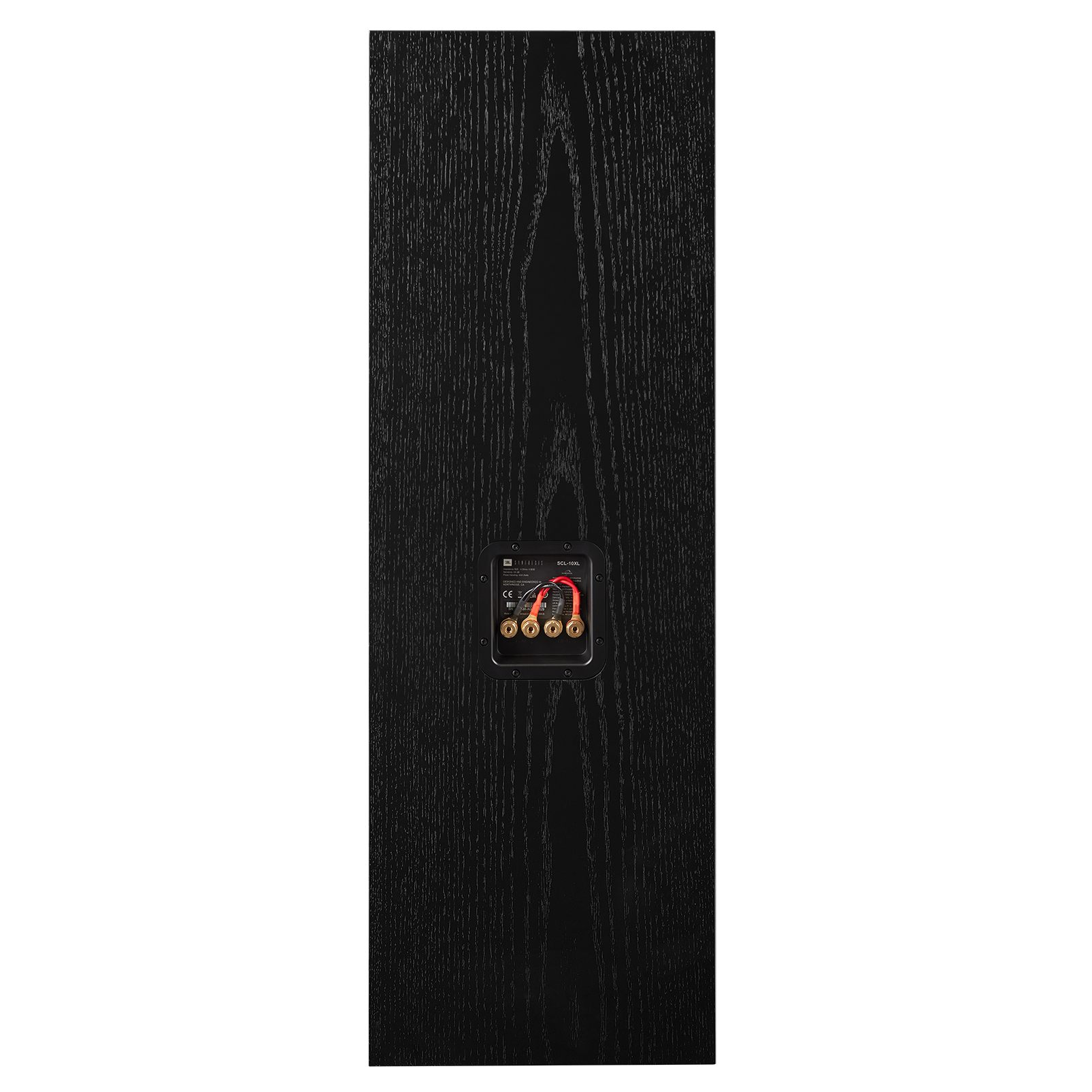

Dual set of gold-plated spring-loaded binding post input terminals

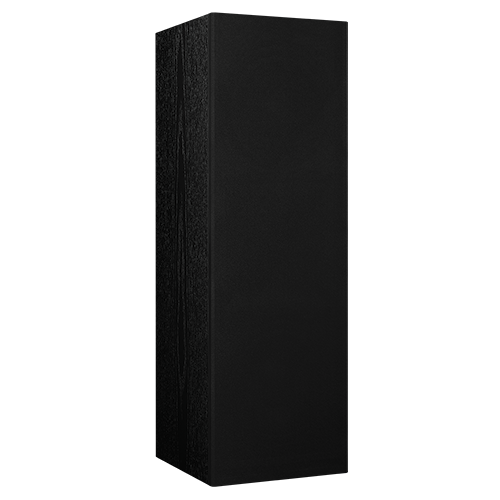

Magnetically attachable cloth grille

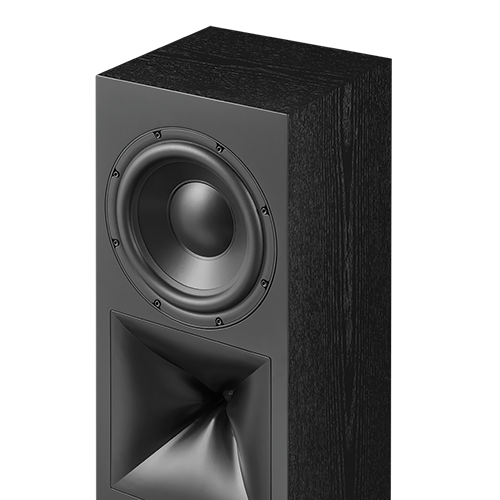

Satin black ash wood veneer finish

Specifications

General Specifications

Type 2‑way built‑in loudspeaker

Low Frequency Driver Dual 10‑inch (250mm) Carbon Cellulose Composite Cone (C4) cast‑frame woofers

High Frequency Driver D2815, 1.5‑inch (38mm), dual annular ring Teonex® diaphragm compression driver with dual neodymium motor structure mated to an HDI™ horn

Inputs Dual sets of gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)

Power Handling 300 Watts RMS (CEA-426B specification, at rated load impedance)

Frequency Response 41Hz – 20kHz (-6dB)

Coverage Angle (-6dB) 100° Horizontal, 100° Vertical, averaged over 2kHz-10kHz

Sensitivity (2.83V@1m) 90dB

Impedance 4Ω nominal, 3.8Ω minimum @ 115Hz

Crossover Frequencies 815Hz

Finished Dimensions with Grille (H x W x D) 35.4” x 11.8” x 11.6” (900mm x 300mm x 296mm)

Product Weight 73.4lbs (33.3kg)

Shipping Weight 84.4lbs (38.3kg)

Enclosure type Sealed

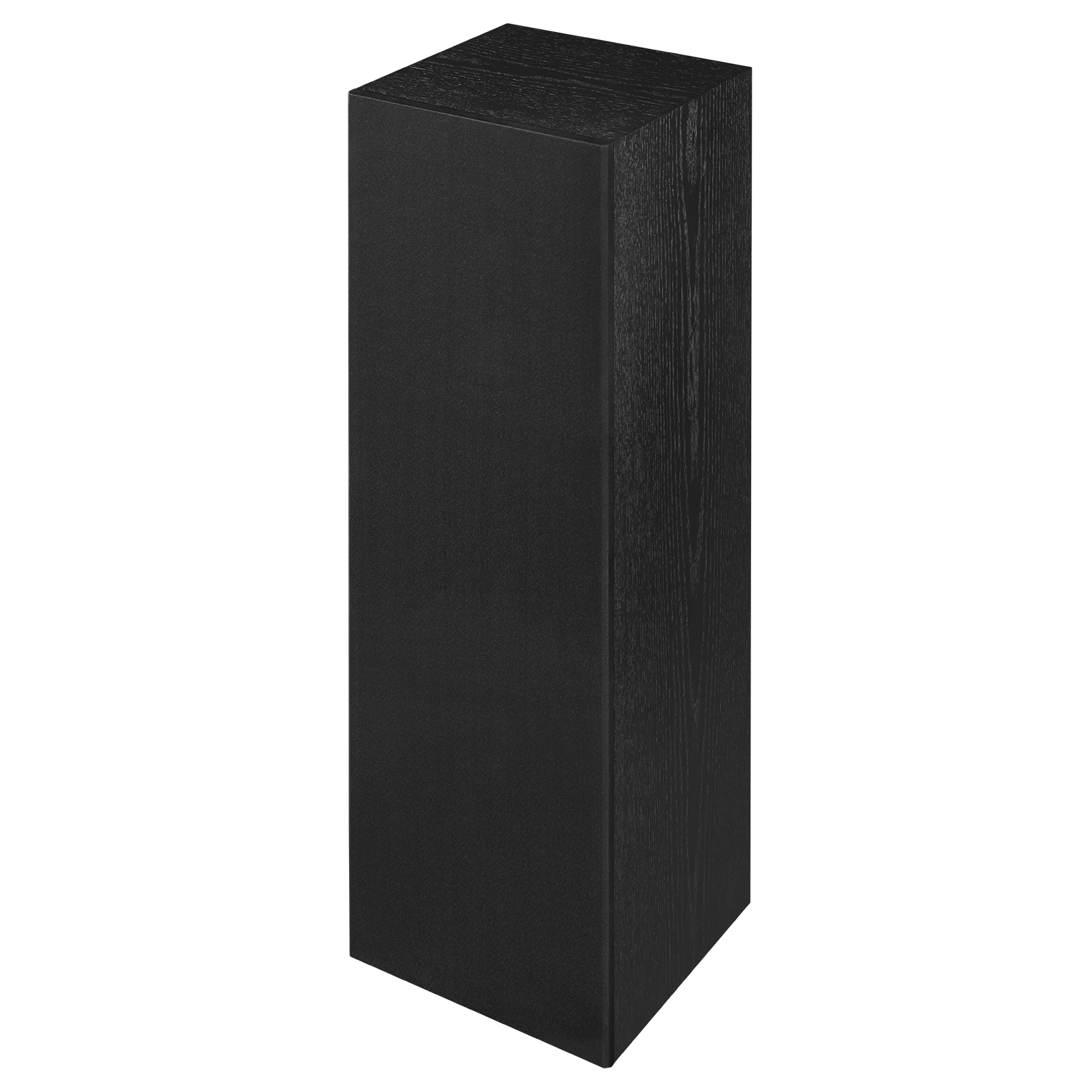

Finish Black ash wood veneer with magnetically attachable cloth grille
