SCL-2XL

2.5-way Quadruple 8-inch (200mm) In-Wall Loudspeaker

Designed to deliver high output, the SCL-2XL is a custom in-wall loudspeaker perfectly suited for use as an LCR behind an acoustically transparent projection screen or as surrounds in larger systems. It features JBL’s patented D2815 dual 1.5-inch (38mm) compression driver mated to a large format High-Definition Imaging (HDI™) horn. Quadruple 8-inch (200mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2.5-way network configuration allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. The integrated MDF enclosure is designed for installation in standard 2x6 wood frame construction, and internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-2XL delivers unparalleled performance in a wide variety of applications and is ideal for use in medium, large, and extra-large rooms.

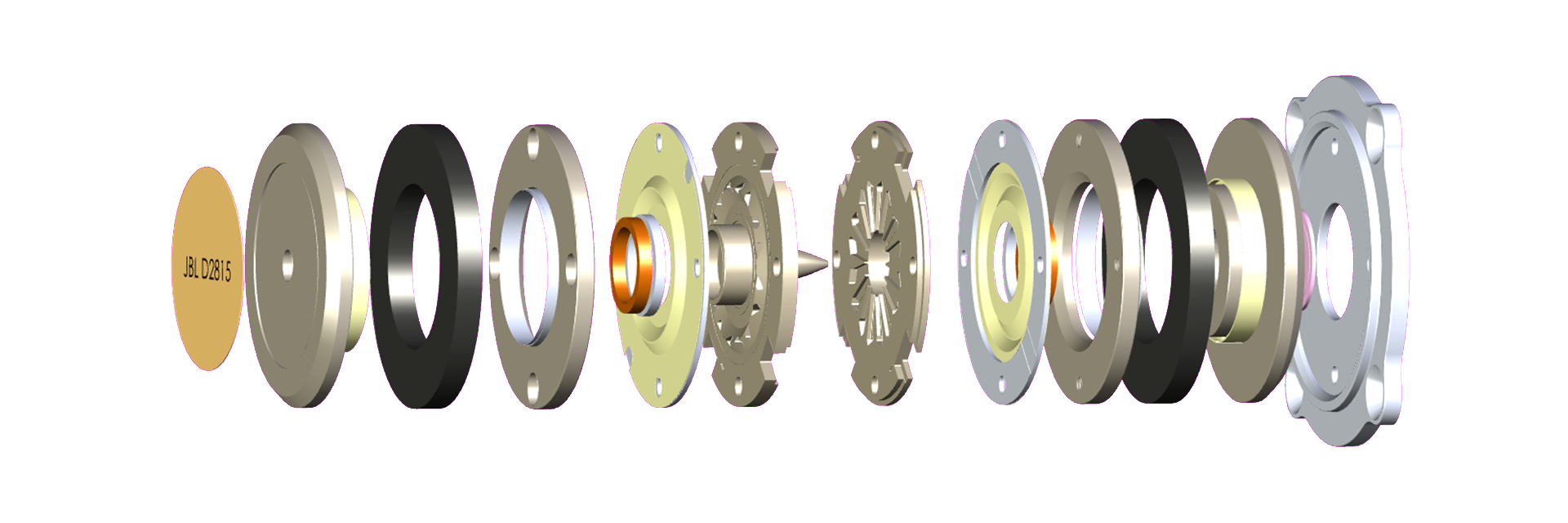

Patented D2815 1.5-inch (38mm) dual diaphragm, dual motor compression driver

Patented D2815 1.5-inch (38mm) dual diaphragm, dual motor compression driver

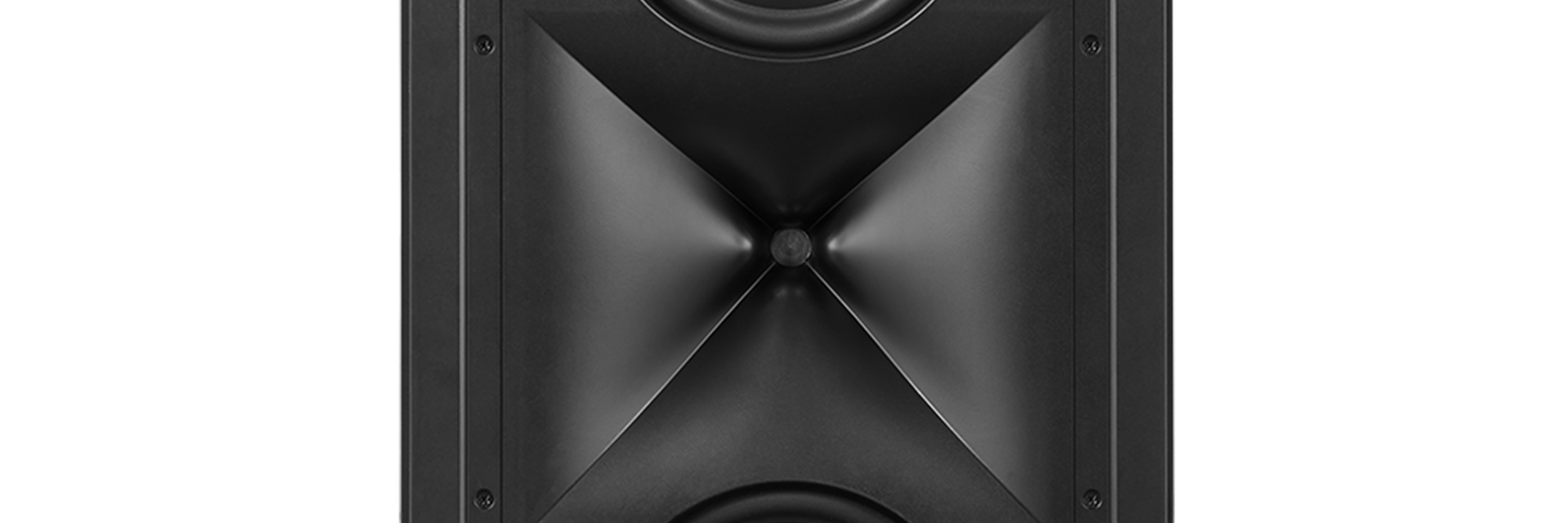

Patented High-Definition Imaging horn geometry

Patented High-Definition Imaging horn geometry

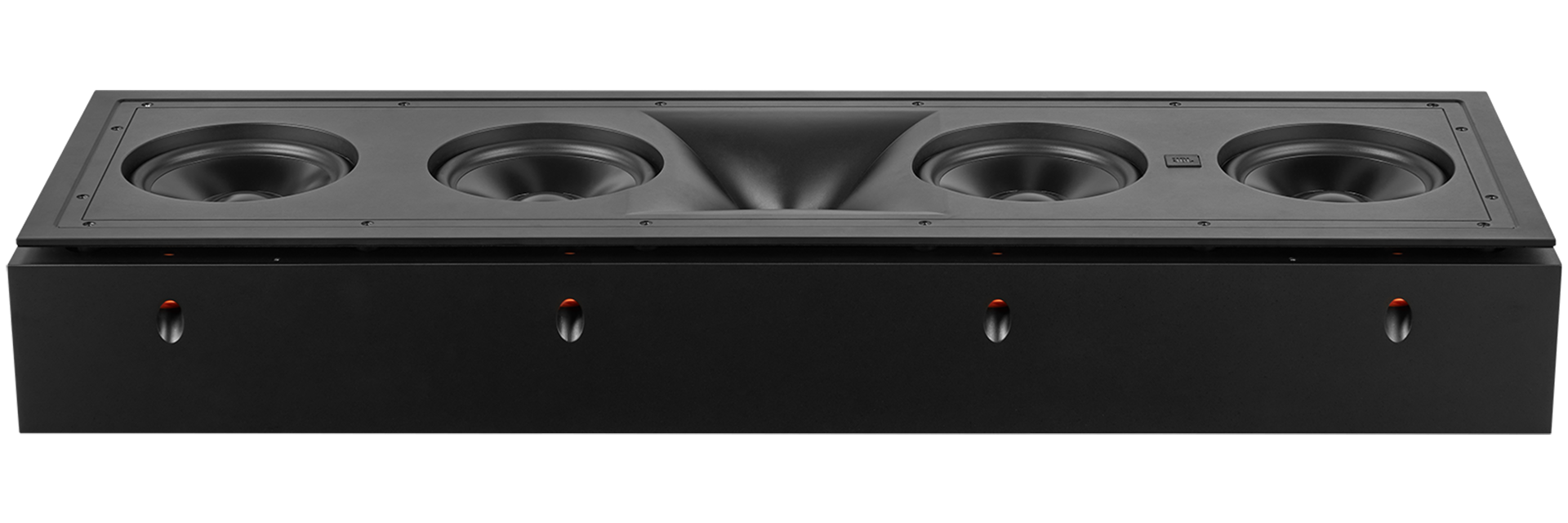

Sonoglass baffle with integrated MDF enclosure and isolation mounting system

Sonoglass baffle with integrated MDF enclosure and isolation mounting system

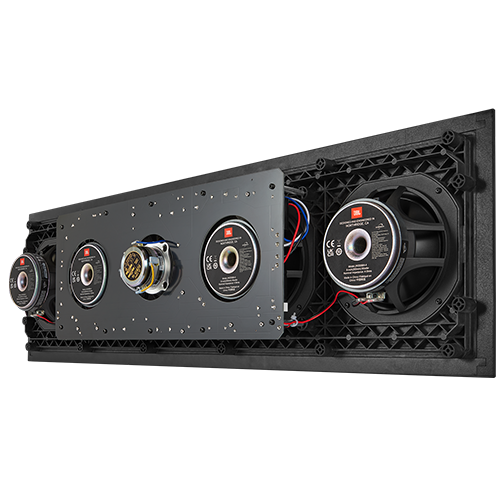

Quadruple 8-inch (200mm) Advanced Aluminum Matrix cone, cast-frame woofers

Quadruple 8-inch (200mm) Advanced Aluminum Matrix cone, cast-frame woofers

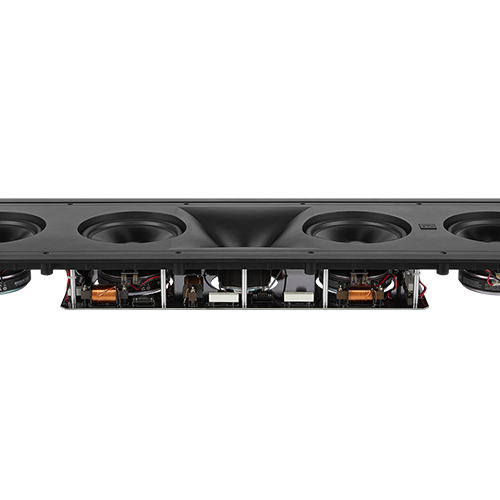

Premium crossover network components with bi-wire/bi-amp capability

Premium crossover network components with bi-wire/bi-amp capability

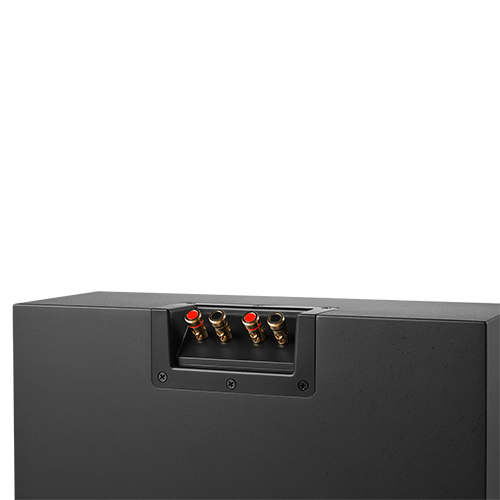

Dual gold-plated spring-loaded binding post input terminals

Dual gold-plated spring-loaded binding post input terminals

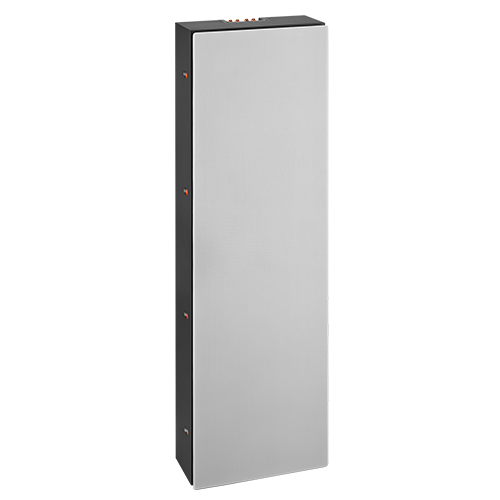

Zero-bezel, magnetically attached paintable grille

Zero-bezel, magnetically attached paintable grille

Specifications

General Specifications

Type 2½‑way in‑wall loudspeaker
Low Frequency Driver Quad 8-inch (200mm) cast-frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver D2815, 1.5" (38mm), dual annular ring Teonex® diaphragm compression driver mounted to Sonoglass® horn/baffle
Inputs Dual set of spring-loaded gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling 500 Watts RMS (CEA-426B specification, at rated load impedance)
Frequency Response 53Hz – 25kHz (-6dB)
Coverage Angle (-6dB) 110° Horizontal, 90° Vertical, averaged over 2kHz-10kHz
Sensitivity (2.83V@1m) 92dB
Impedance 4Ω nominal, 3.2Ω minimum @ 800Hz
Crossover Frequencies 450 Hz, 1.1 kHz
Finished Dimensions with Grille (H x W x D) 45.7” x 14.2” x 6.2” (1161mm x 361mm x 156.8mm)
Mounting Depth with Backbox 5.4” (136mm)
Product Weight 77lbs (35kg)
Shipping Weight 103lbs (47kg)
Enclosure type Sealed in-wall mount with included backbox
Finish Matte Black with white paintable grille

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.

  • SCL-2XL - Black - 2.5-way Quadruple 8-inch (200mm) In-Wall Loudspeaker - Hero

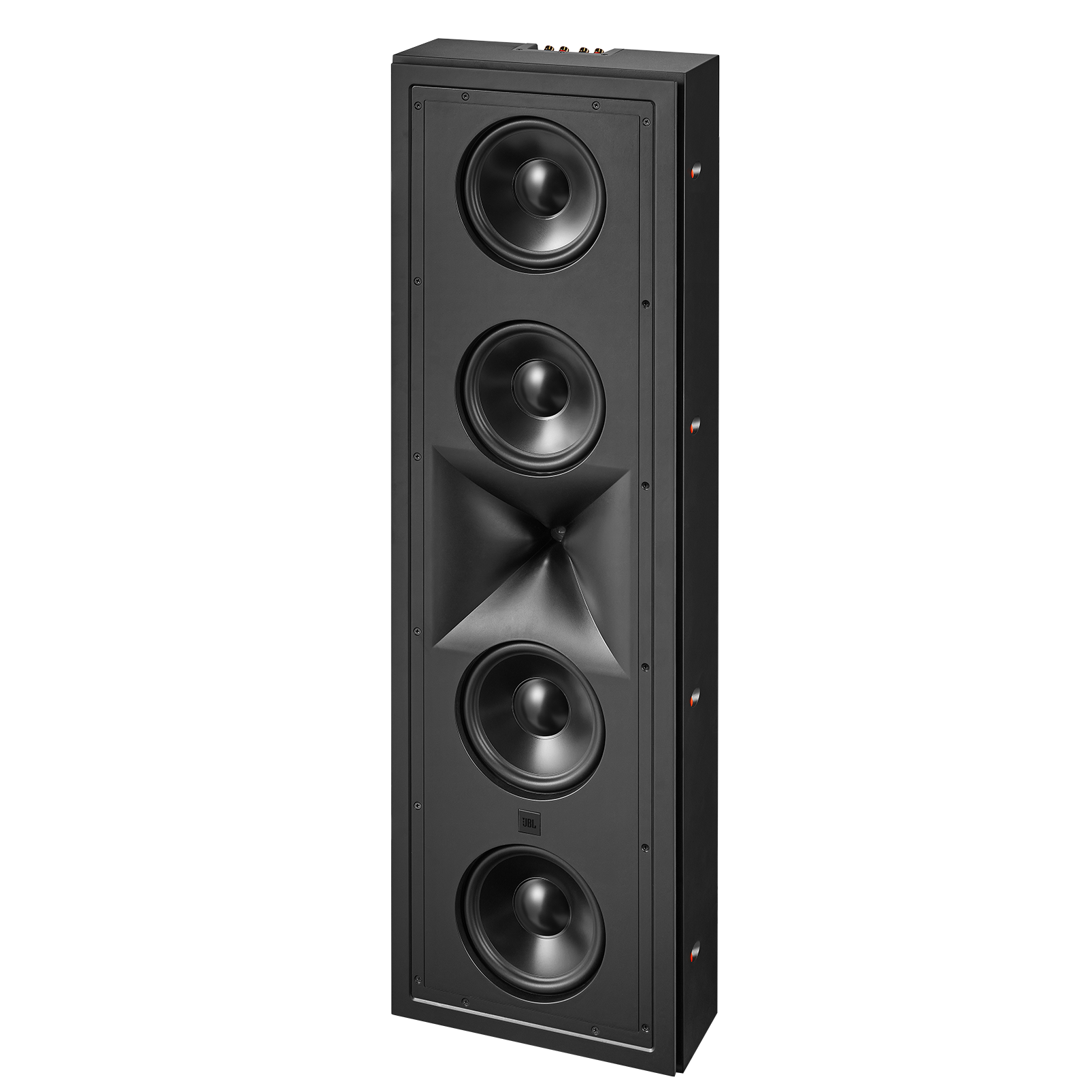

  • SCL-2XL - Black - 2.5-way Quadruple 8-inch (200mm) In-Wall Loudspeaker - Detailshot 1

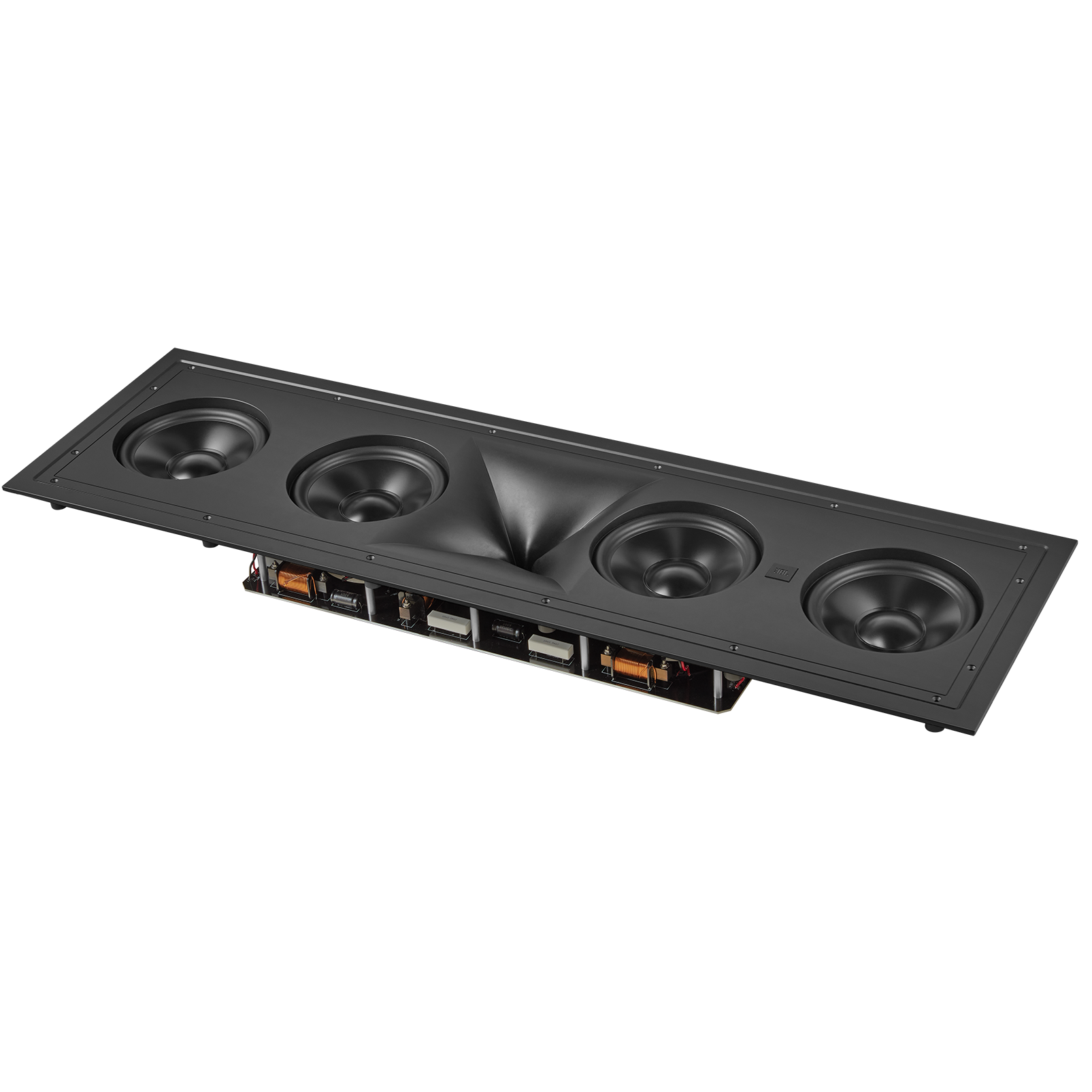

  • SCL-2XL - Black - 2.5-way Quadruple 8-inch (200mm) In-Wall Loudspeaker - Detailshot 2

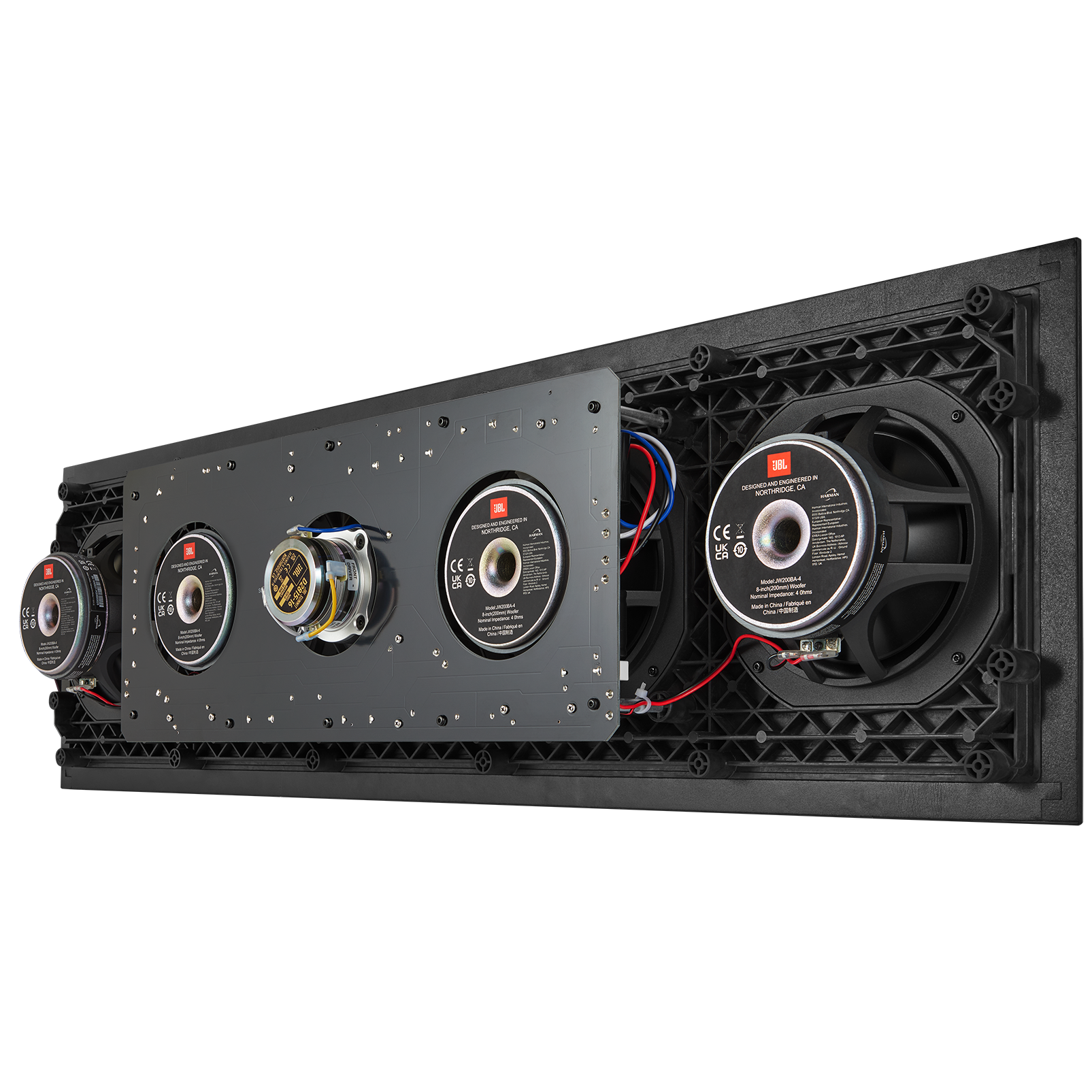

  • SCL-2XL - Black - 2.5-way Quadruple 8-inch (200mm) In-Wall Loudspeaker - Detailshot 3

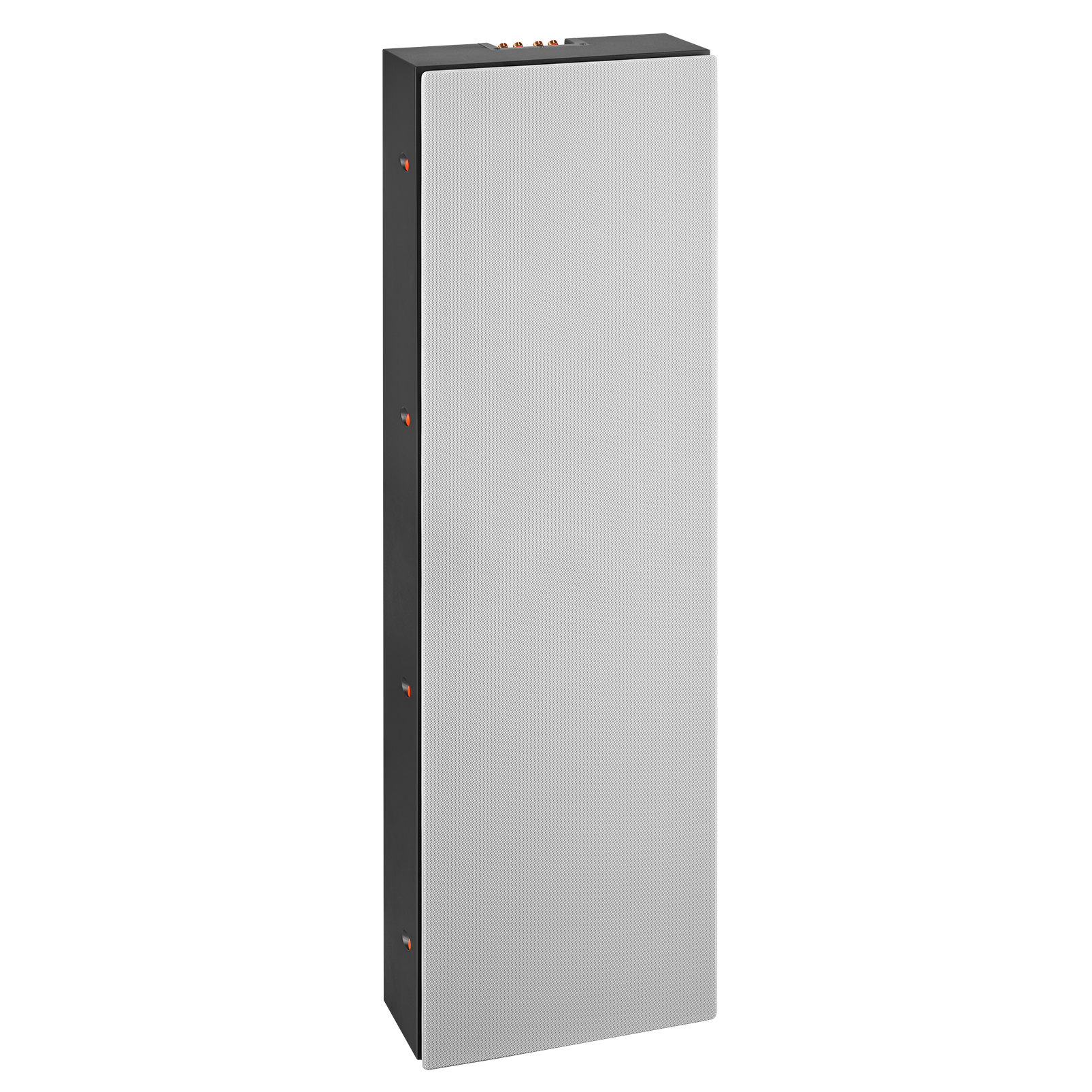

  • SCL-2XL - Black - 2.5-way Quadruple 8-inch (200mm) In-Wall Loudspeaker - Detailshot 4
