SDP-60

16-Channel Immersive AV Preamp/Processor

The SDP-60 redefines what an AV processor can achieve, delivering reference-grade performance for the most advanced home theaters. With 16-channel decoding and processing powered by a high-performance DAC architecture, it ensures uncompromising clarity and precision across every format. Balanced outputs guarantee pristine signal integrity when paired with external amplification, while Matrix Channel Assignment provides unmatched flexibility for any configuration. Support for Dolby Atmos, DTS:X, IMAX Enhanced, and AURO-3D brings true cinematic immersion, and Dirac Live room correction optimizes every detail for flawless accuracy. Designed for enthusiasts who demand absolute control, the SDP-60 transforms your space into a world-class listening environment. Intuitive menus, a vibrant full color display, and app-based control make operation simple and efficient. When performance matters most, the SDP-60 delivers.

Find a Dealer

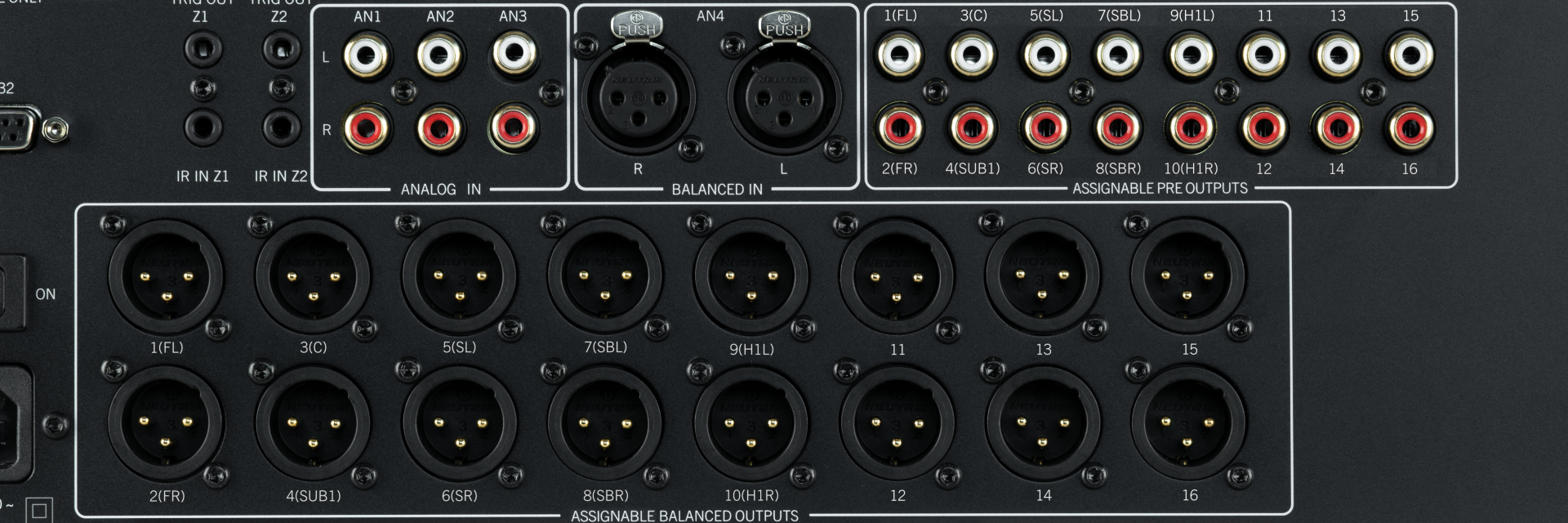

16-Channel hi-resolution audio processing for a wide selection of immersive speaker configurations, all with exceptional sound quality

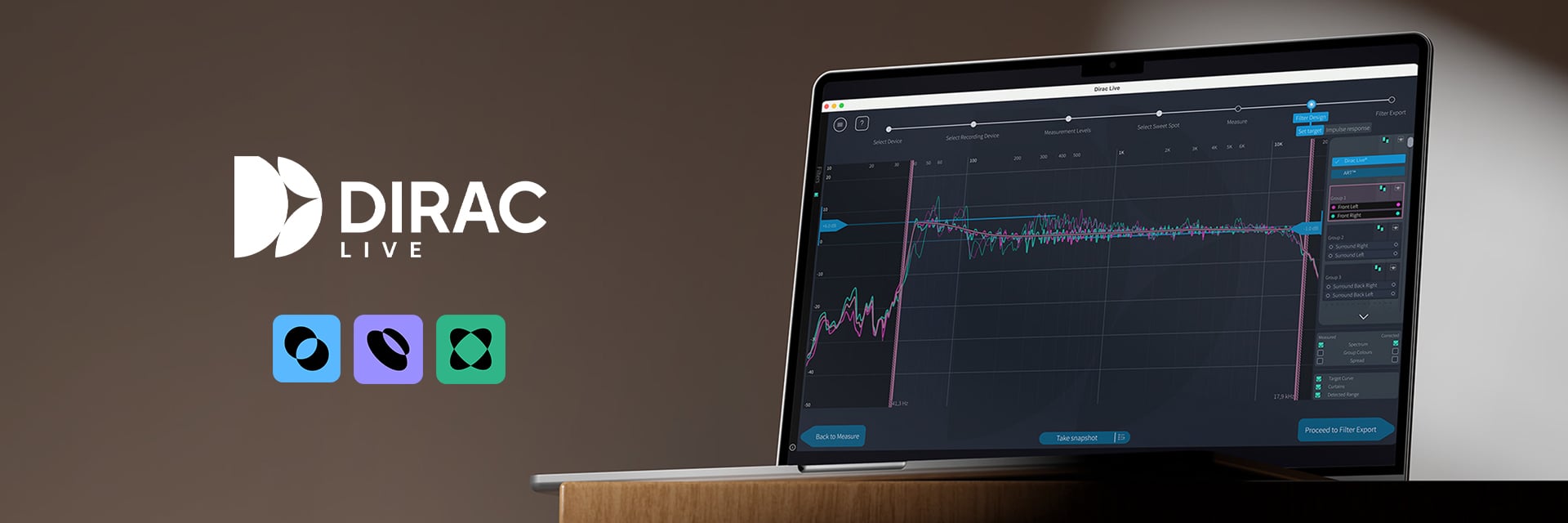

Dirac Live Room Correction & Bass Control Included

Matrix channel assignment provides flexibility to assign the surround channels you need for the best performance of your system

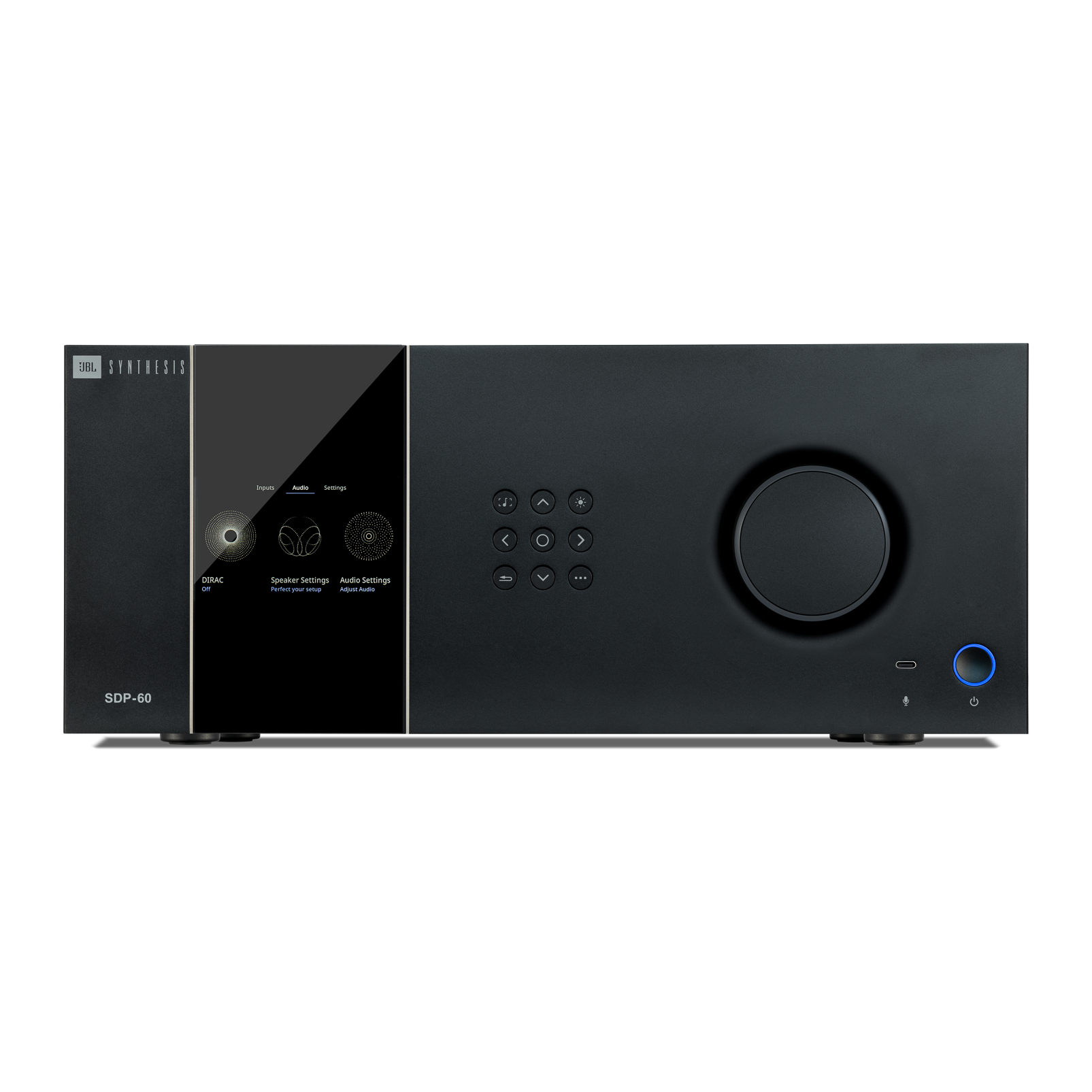

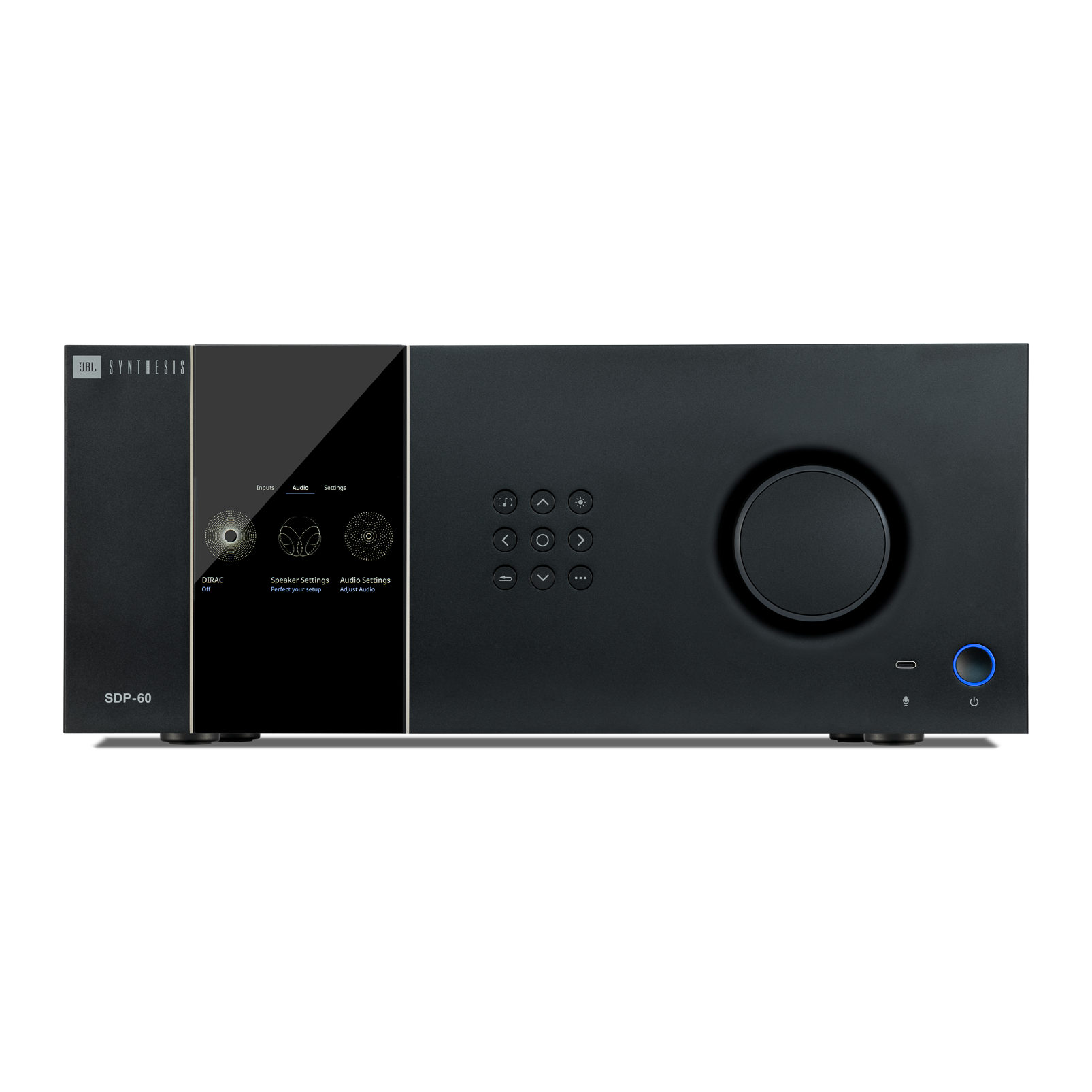

High-resolution display for clear visible status, metadata and setup

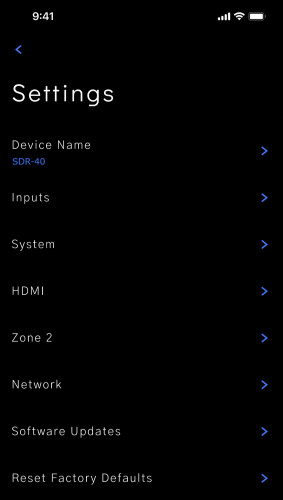

Works with the new JBL Synthesis Control app for setup, control, playback from iOS, Android and Windows devices and PCs

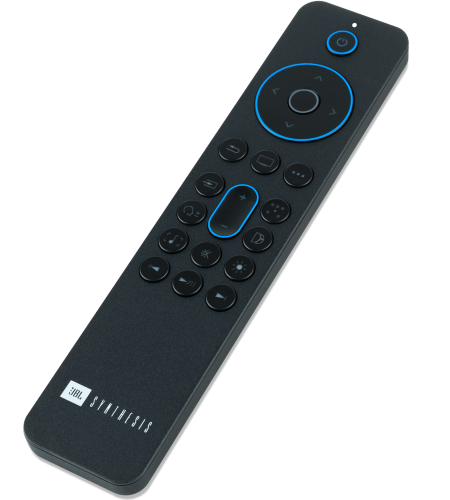

Bluetooth remote control for continuous out-of-sight control

Specifications

General Specifications

Type AV Processor and Pre-amplifier

Maximum Channel Count 16

Reassignable Channels All channels

Dolby Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround

DTS DTSX Pro, DTS HD Master, DTS NeuralX, DTS VirtualX

IMAX Enhanced Yes

Auro 3D Yes

MPEG H Yes

Inputs/Outputs 7/2 (Zone 1), 1 (Zone 2)

HDMI/HDCP Versions 2.1a/2.3

Resolution support resolution/framerate Up to 8K/60Hz or 4K 120Hz

Supported Dynamic Range Profiles HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG

Supported HDMI features Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1)

On Screen Display Yes

Works with (apps) JBL Synthesis Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)

Works with (services) Apple Airplay, Google Cast

JBL Synthesis Control app supported services Internet Radio, Podcasts, UPnP

Supported Hi-res media FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, DSD (up to 128), MP3, OGG, WMA

Supported Hi-res Bit depth 16, 24

Supported samples rates (kHz) Up to 192 kHz

Gapless Playback Yes

Frequency response 20Hz—20kHz ± 0.05dB

Number of inputs (Coaxial/Toslink) 2/2

Supported Sample Rates (kHz) 192, 176.4, 96, 88.2, 48, 44.1

Bit depths (bit) 24, 16

Frequency response 20Hz—20kHz ± 0.2dB

Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 100dB

Number of inputs 3 (RCA pairs)

Signal/noise ratio (A-wtd, ref. 50W, 1V input) 100dB

Number of Outputs XLR/RCA 16/16

Balanced (XLR) peak output level per channel 5V RMS*

Single-ended (RCA) peak output level per channel 2V RMS*

THD+N (20 Hz to 20 kHz) –100dB*

Mains voltage (V/Hz) 100–120V or 220–240V, 50–60Hz

Max Power consumption (W) 50W

Max Thermal dissipation (BTU/hour) 170BTU

Idle Power consumption (W) 37W

Idle Thermal dissipation (BTU/hour) 125BTU

Standby Power consumption (Default/Low Power) 2W/0.5W

Dimensions W x D (including speaker terminals) x H (including feet) W432 x D399.6 x H186mm

Weight (net) 13.6kg

Weight (packed) 19.15kg

Supplied accessories Mains lead(s), Rear panel cowl, Remote control with 2 x AAA batteries, Measurement Microphone, 5m USB Cable, Quick Start Guide, Important Safety Instructions,

Bluetooth Version 5.3

Bluetooth Profile BLE

Bluetooth Transmitter Frequency Range and Power 2,402 MHz to 2,480 MHz <Max 3.33 dBm

Wi-Fi Network IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi Transmitter Frequency Range and Power 2.400 GHz to 2.4835 GHz < Max 17.4dBm

5G Wi-Fi Transmitter Frequency Range and Power 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.26dBm
