SSW-5

12 -inch (300mm) 1,000W powered subwoofer

The SSW-5 is a high-performance powered subwoofer utilizing a front-firing 12-inch (300mm) pure pulp cone, cast-frame woofer with a 4-inch (100mm) voice coil and dual front-firing tuned ports. A 1,000-Watt RMS amplifier provides sonic impact, and a full complement of inputs and controls make for easy system integration. The cabinet design includes a black satin wood veneer finish with a magnetically attached cloth grille bringing an element of modest style to any room. Designed to complement any of the JBL Synthesis Custom Loudspeakers (SCL Series), the SSW-5 delivers powerful dynamics and incredibly accurate low frequency sound reproduction for true high-fidelity sound in medium to large rooms.

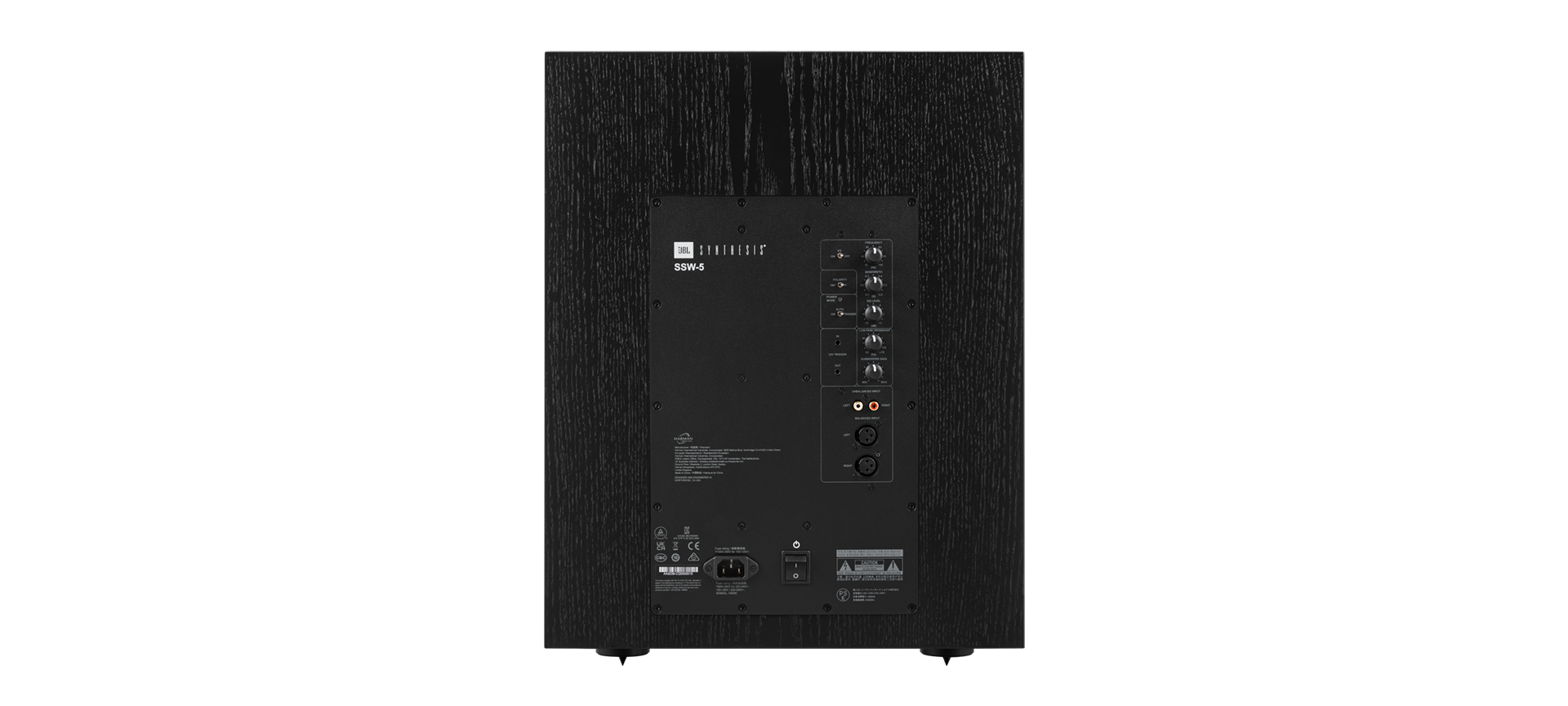

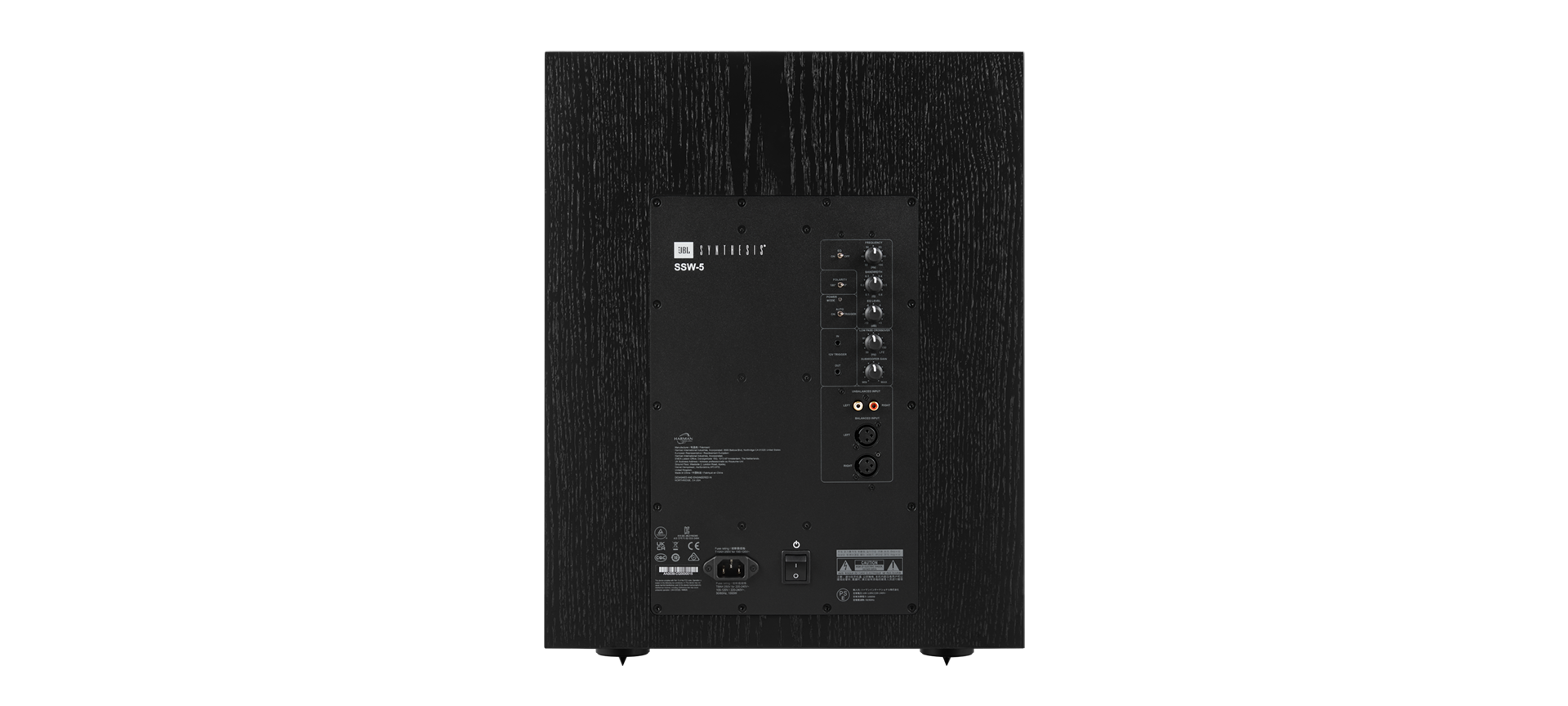

Advanced 1,000-Watt RMS amplifier for powerful dynamics

Advanced 1,000-Watt RMS amplifier for powerful dynamics

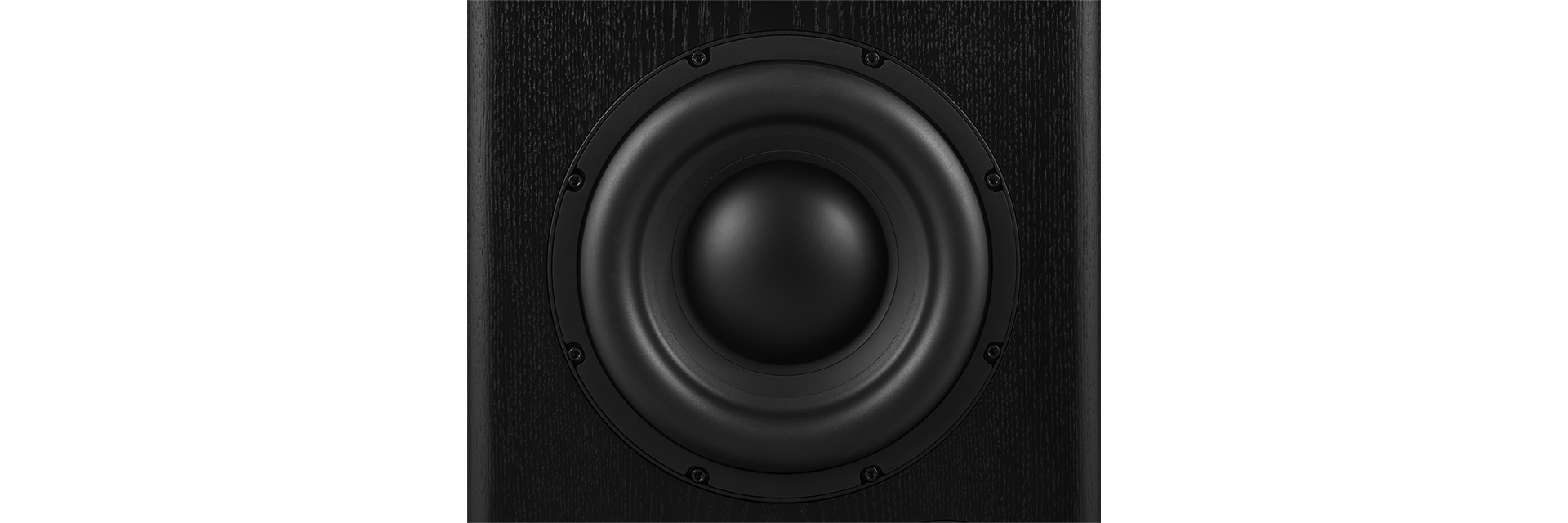

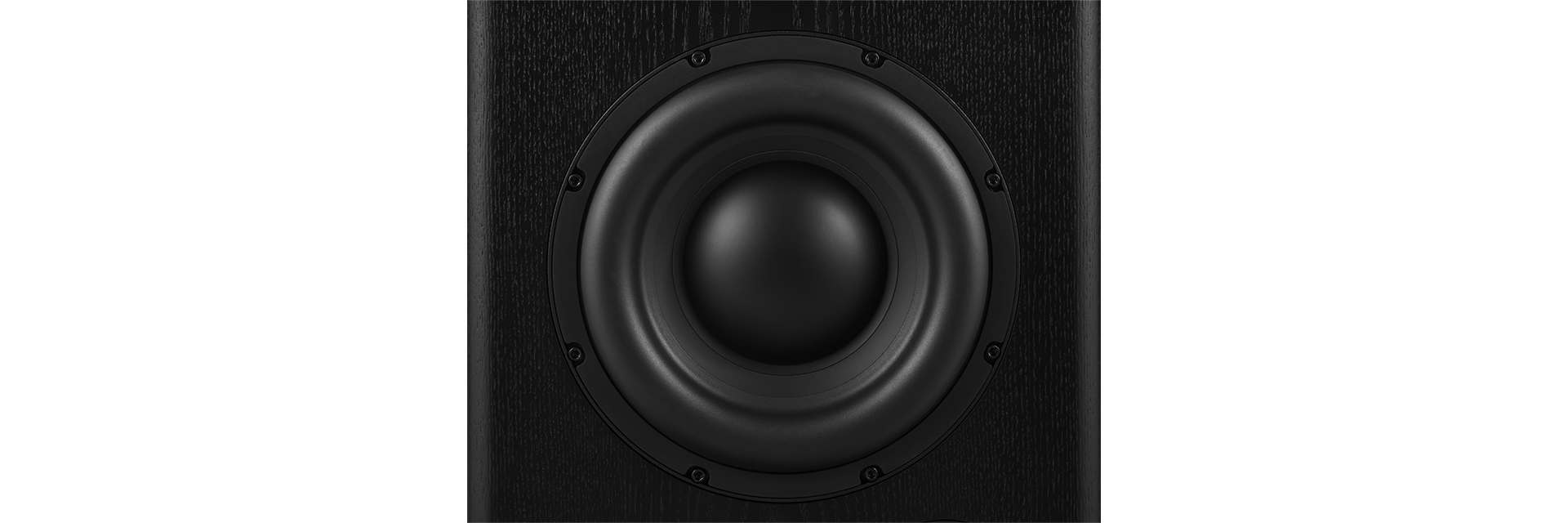

12-inch (300mm) black pure-pulp cone, cast frame woofer with 4-inch (100mm) voice coil

12-inch (300mm) black pure-pulp cone, cast frame woofer with 4-inch (100mm) voice coil

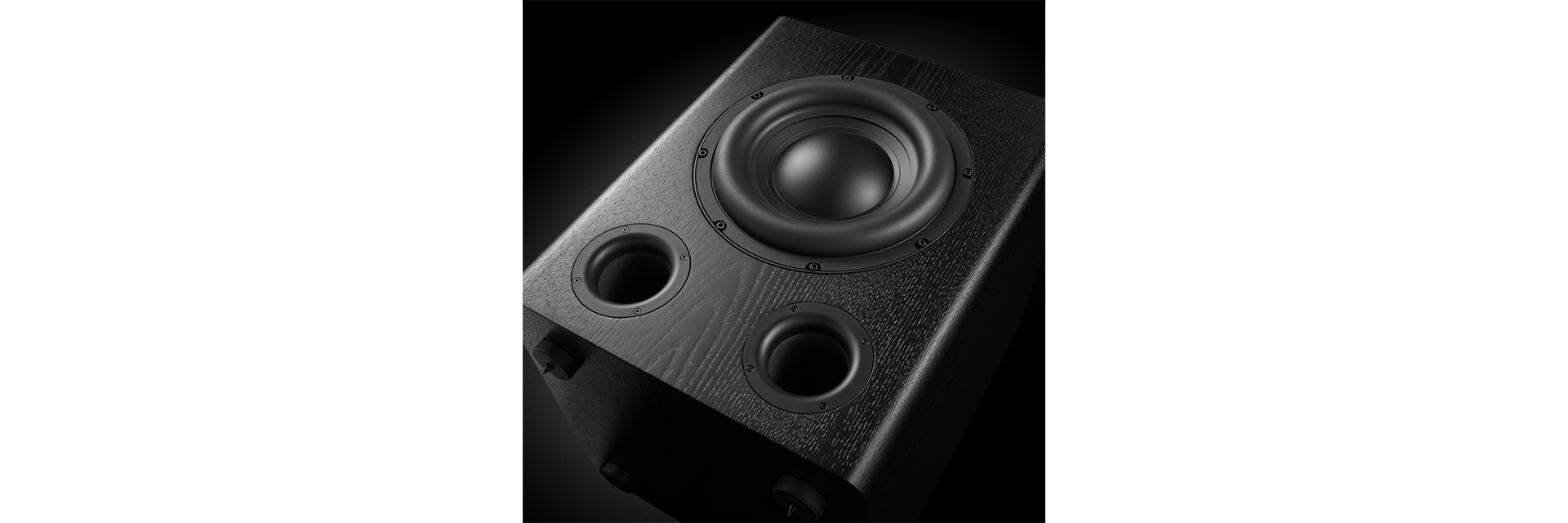

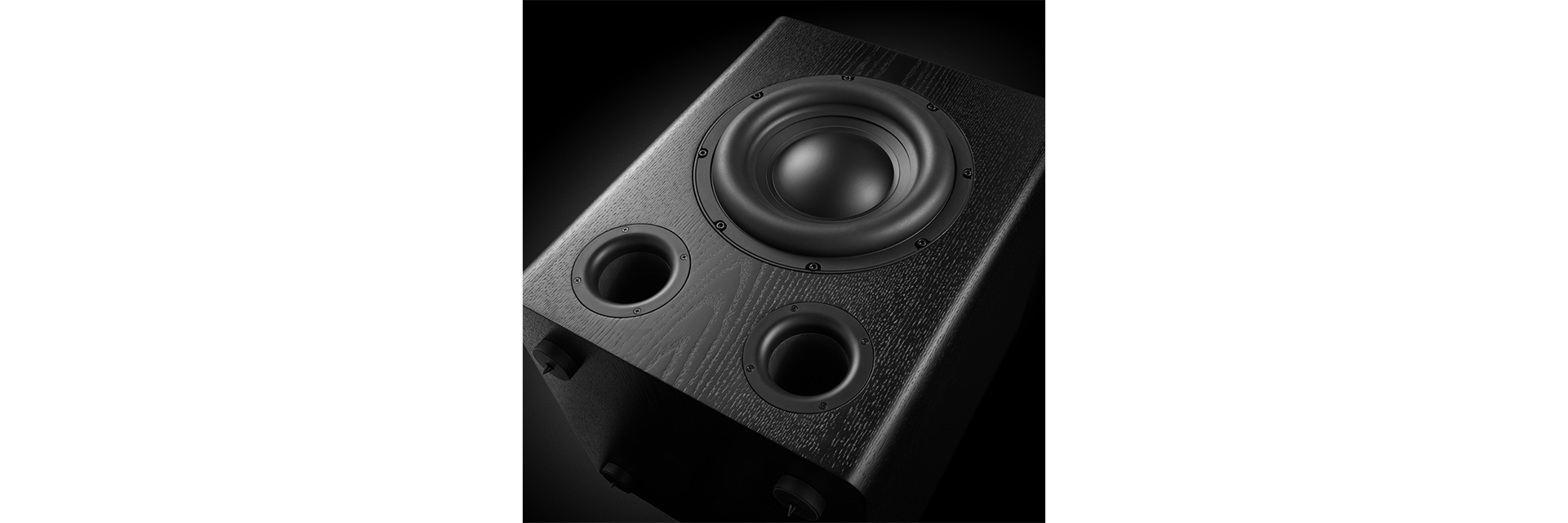

Bass-reflex design with dual front-firing ports

Bass-reflex design with dual front-firing ports

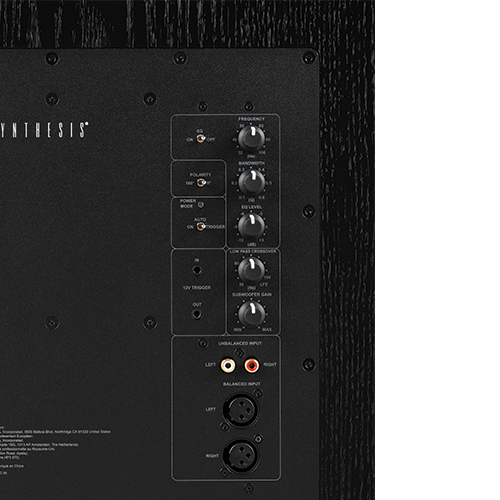

Installer-friendly features with a variety of connections and controls

Installer-friendly features with a variety of connections and controls

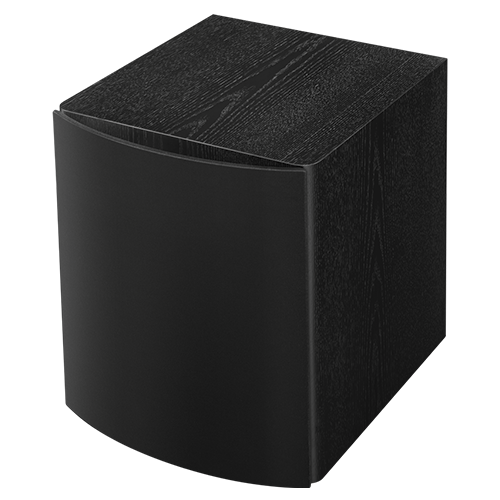

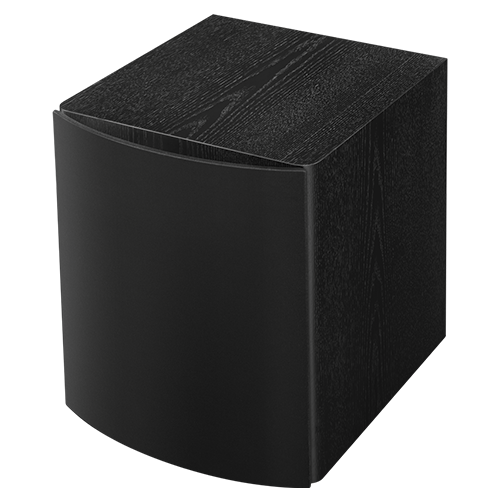

Magnetically attachable cloth grille

Magnetically attachable cloth grille

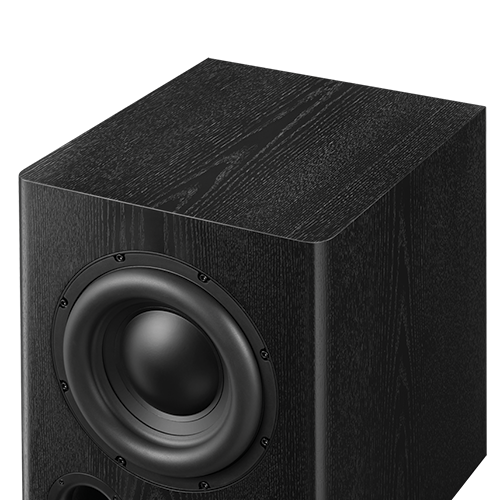

Satin black ash wood veneer finish

Satin black ash wood veneer finish

Specifications

General Specifications

Type 1000W RMS powered subwoofer
Low Frequency Driver 12-inch (300mm) black pure-pulp cone, cast frame woofer with 4-inch (100mm) voice coil
Controls Auto Power, Crossover, Level, Polarity, Single-band parametric EQ
Inputs 2x RCA (unbalanced), 2x XLR (balanced)
Frequency Response 24Hz – 20kHz (-6dB)
Crossover Frequencies 50Hz - 150Hz (variable) 24dB/octave, LFE selectable
Finished Dimensions with Grille (H x W x D) 21.7” x 16.9” x 20.5” (550mm x 430mm x 522mm)
Finished Dimensions without Grille (H x W x D) 21.7” x 16.9” x 19.1” (550mm x 430mm x 484mm)
Product Weight 104.5lb (47.4kg)
Shipping Weight 122.6lb (55.6kg)
Enclosure type Bass-reflex design with dual front-firing ports
Finish Black ash wood veneer with magnetically attachable cloth grille

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.

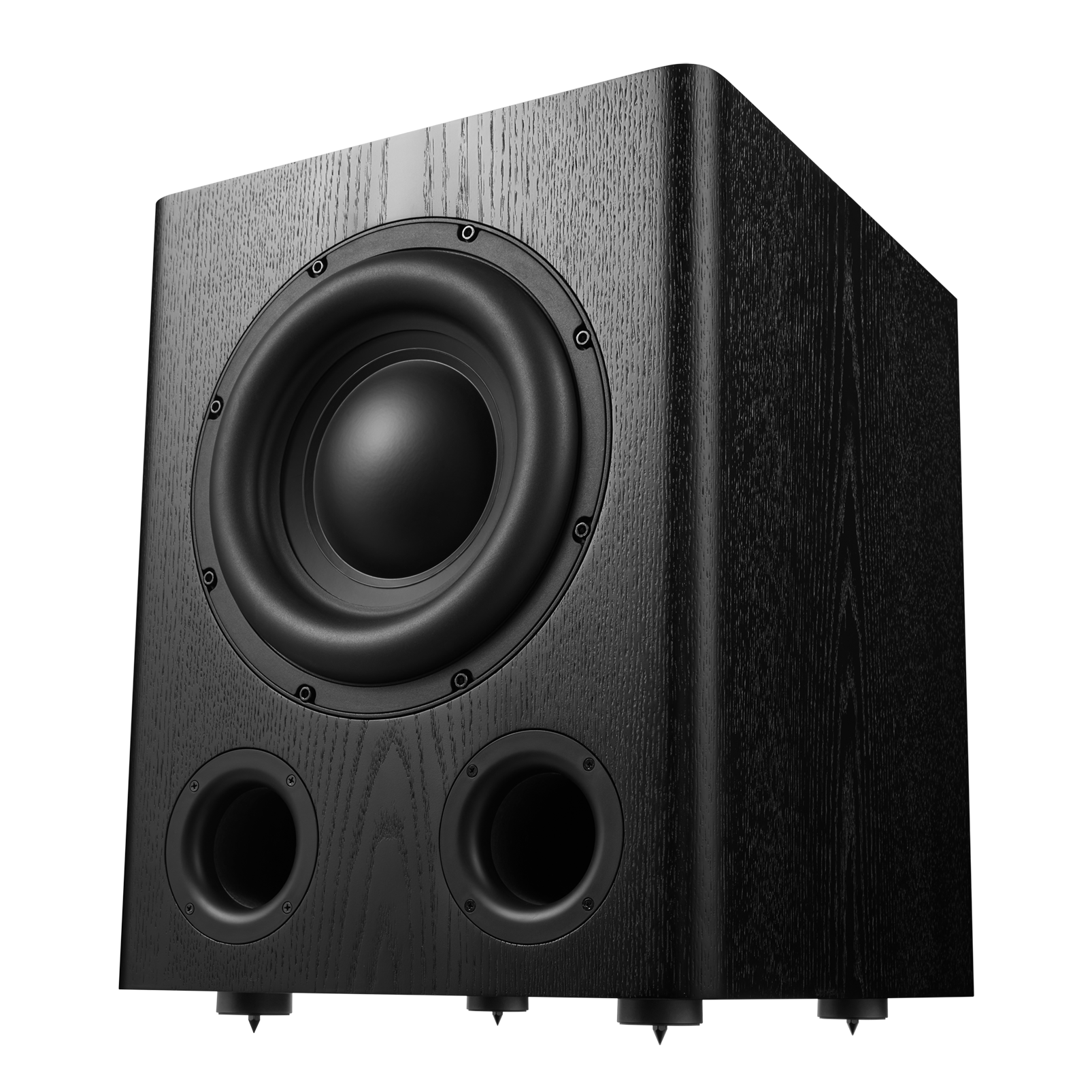

  • SSW-5 - Black - 12 -inch (300mm) 1,000W powered subwoofer - Hero

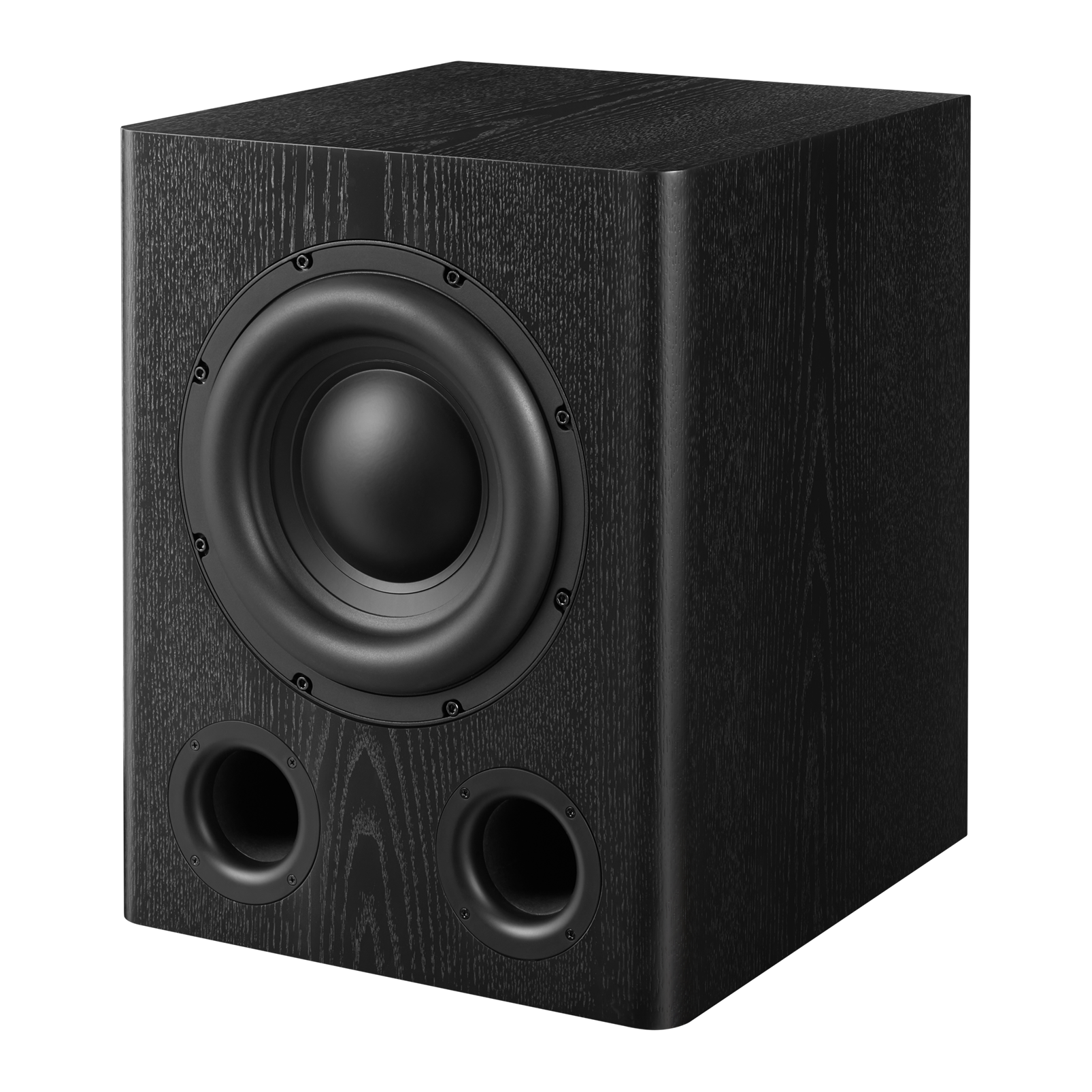

  • SSW-5 - Black - 12 -inch (300mm) 1,000W powered subwoofer - Front

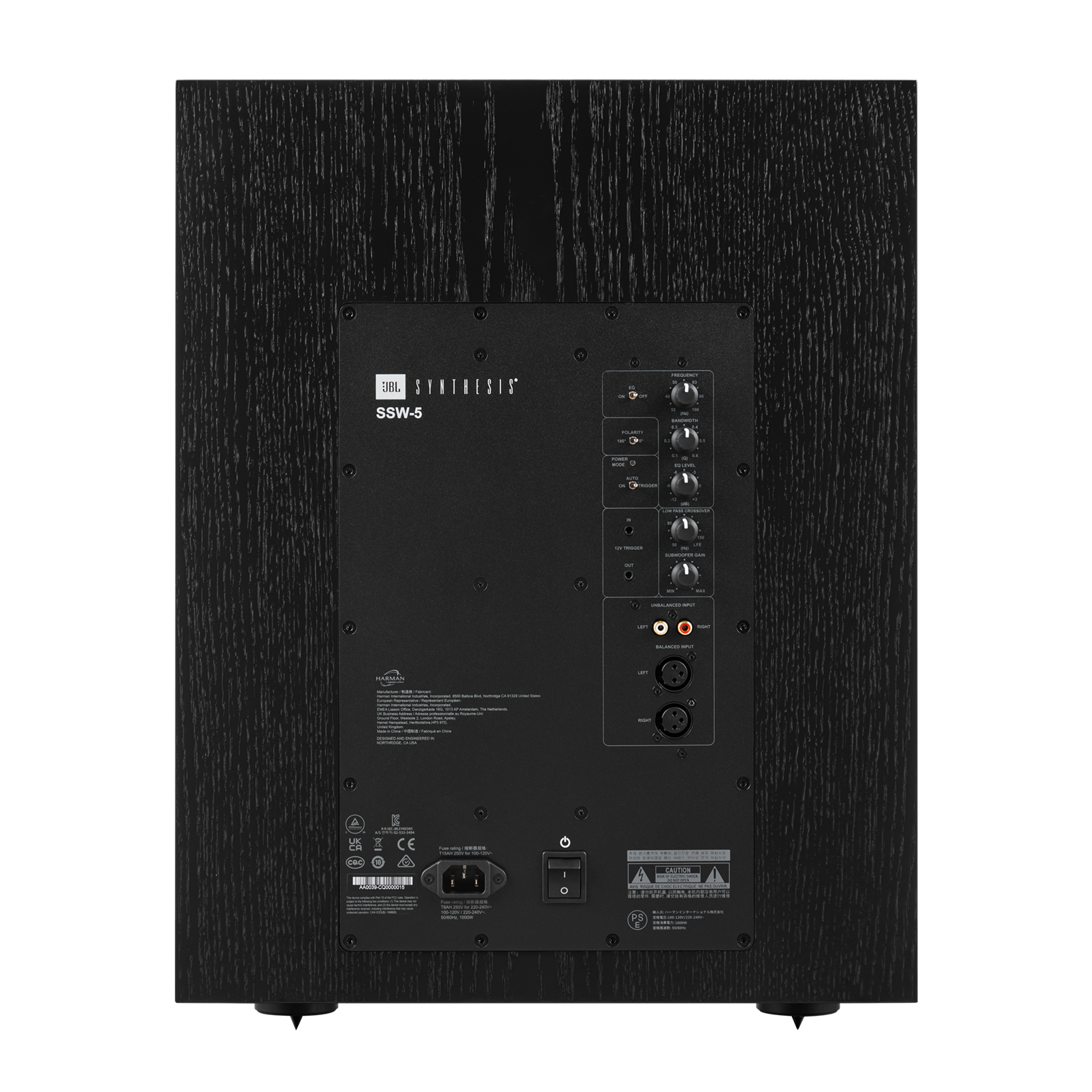

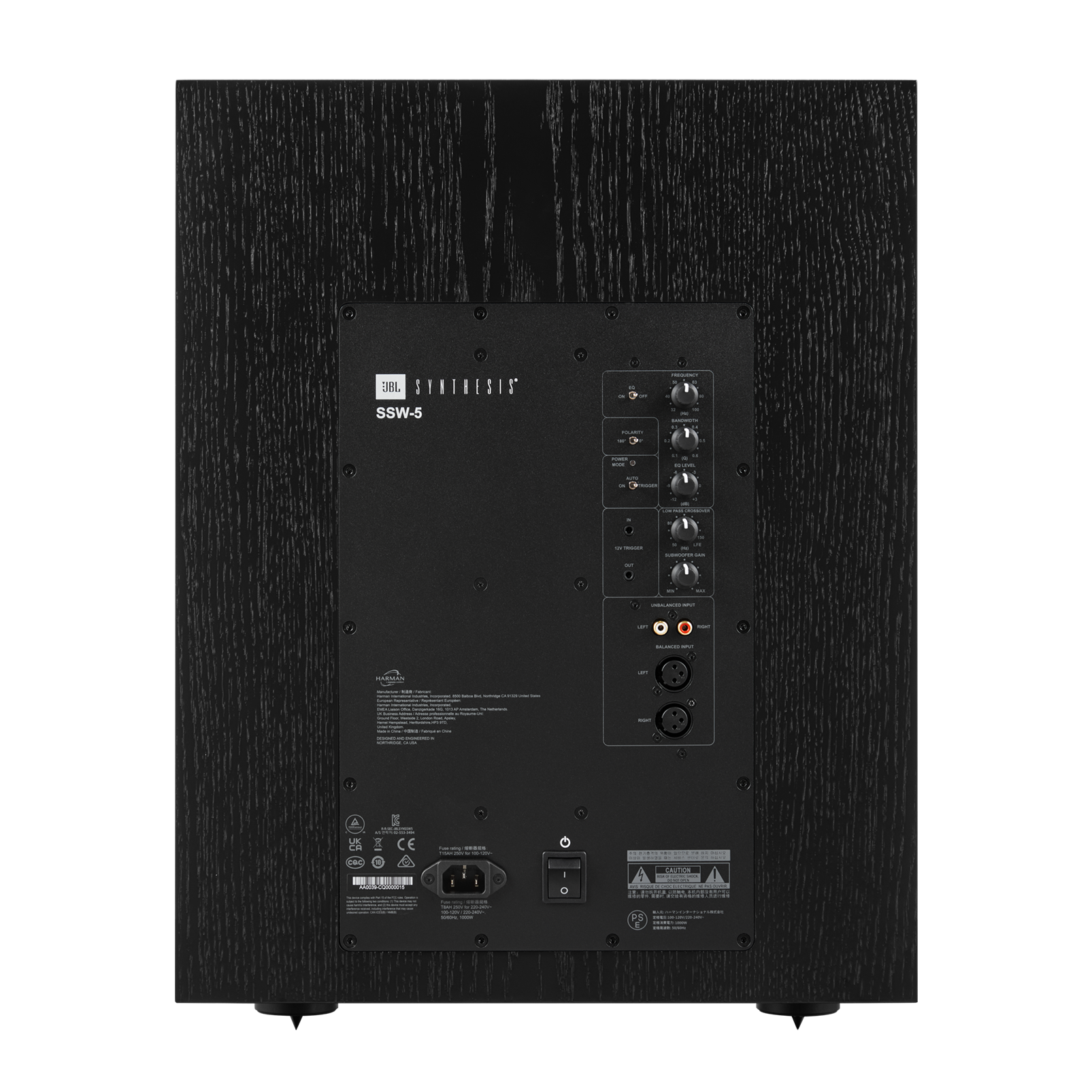

  • SSW-5 - Black - 12 -inch (300mm) 1,000W powered subwoofer - Back

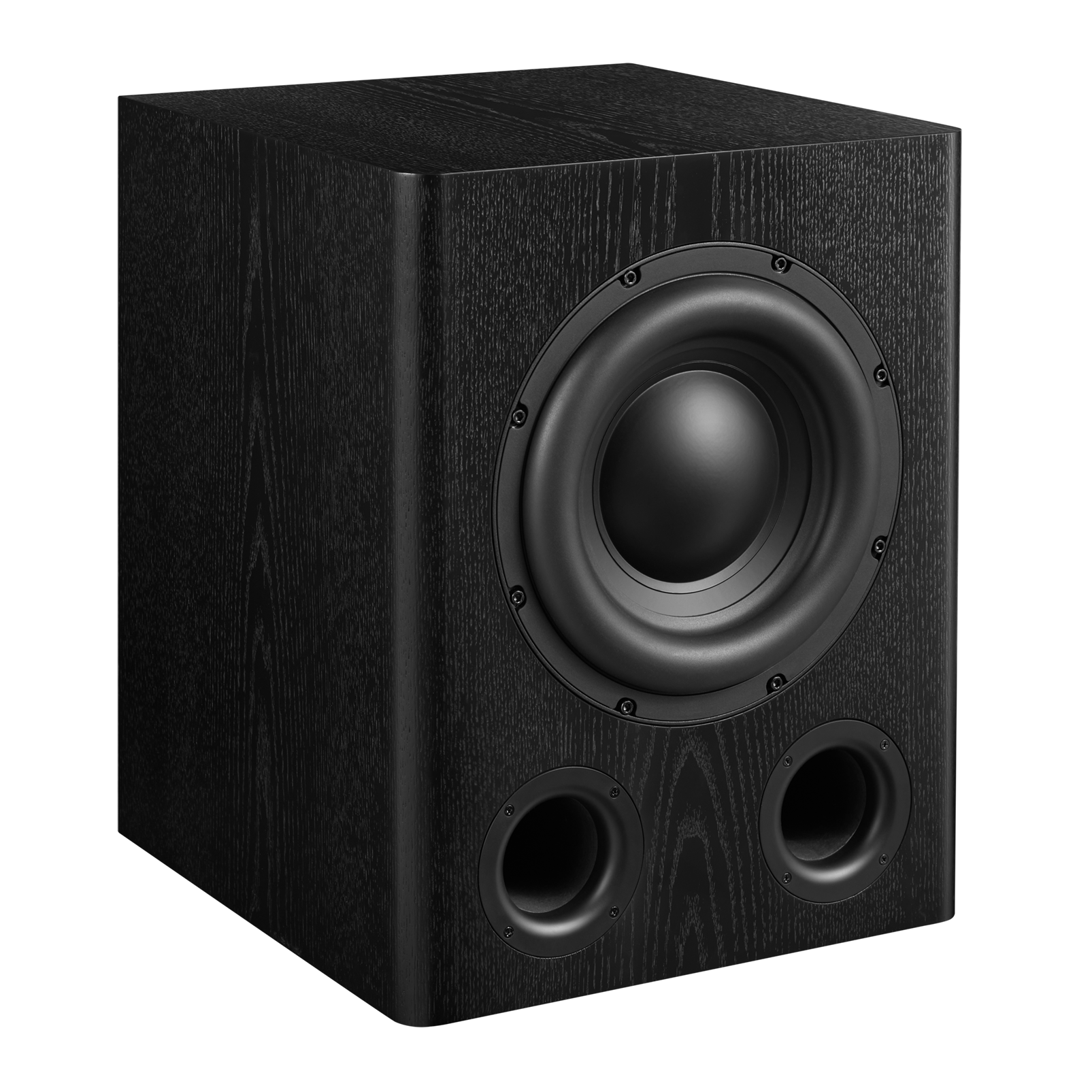

  • SSW-5 - Black - 12 -inch (300mm) 1,000W powered subwoofer - Right

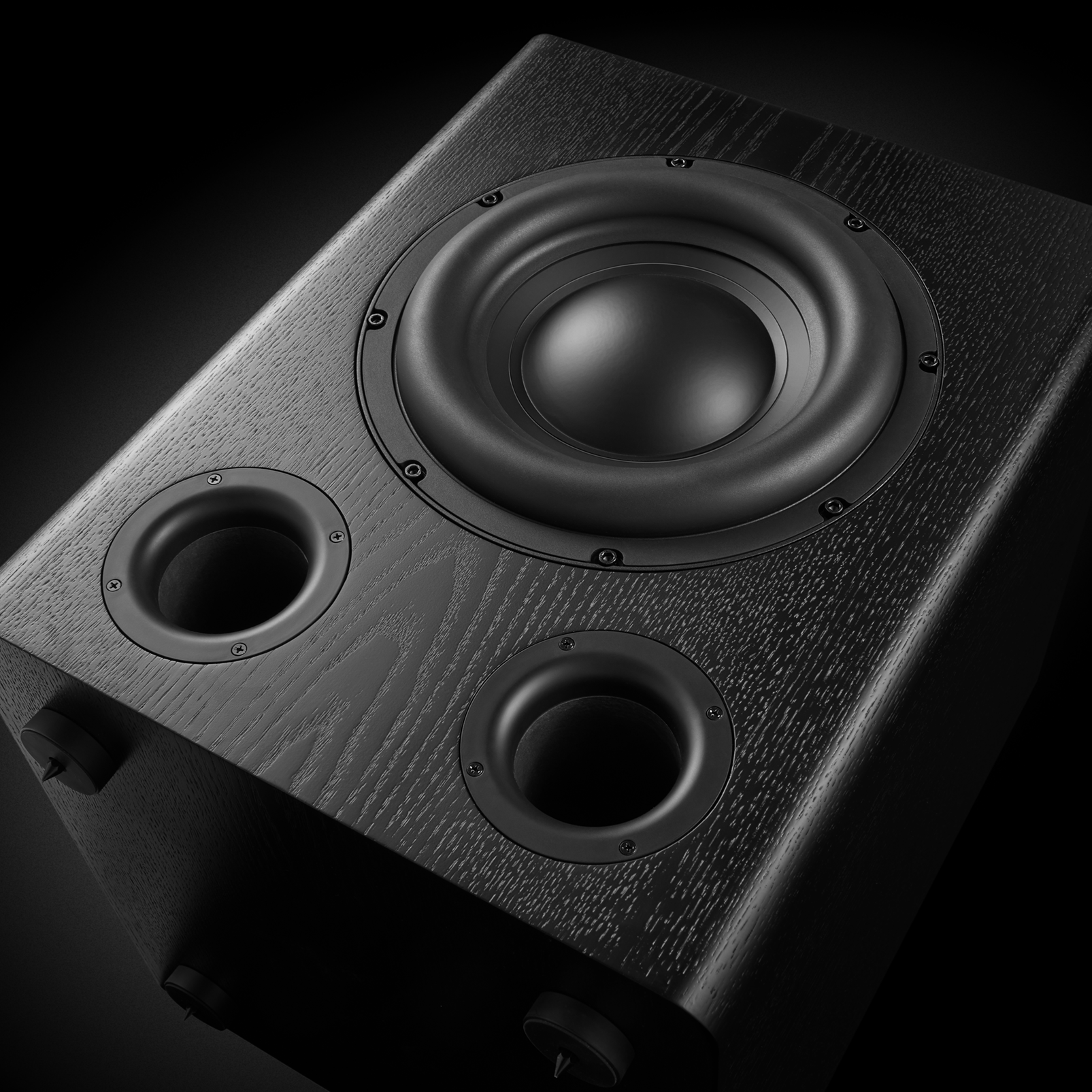

  • SSW-5 - Black - 12 -inch (300mm) 1,000W powered subwoofer - Detailshot 1

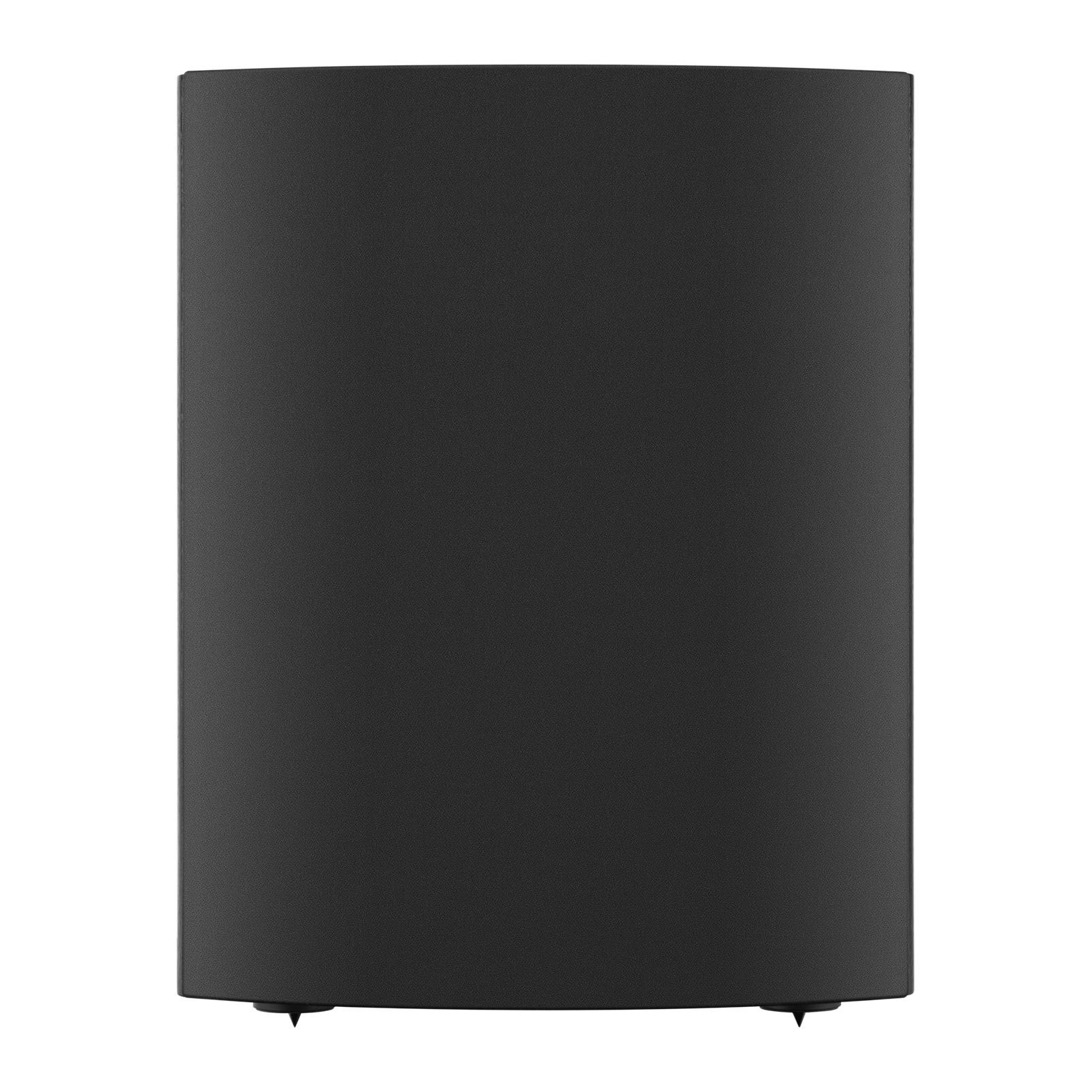

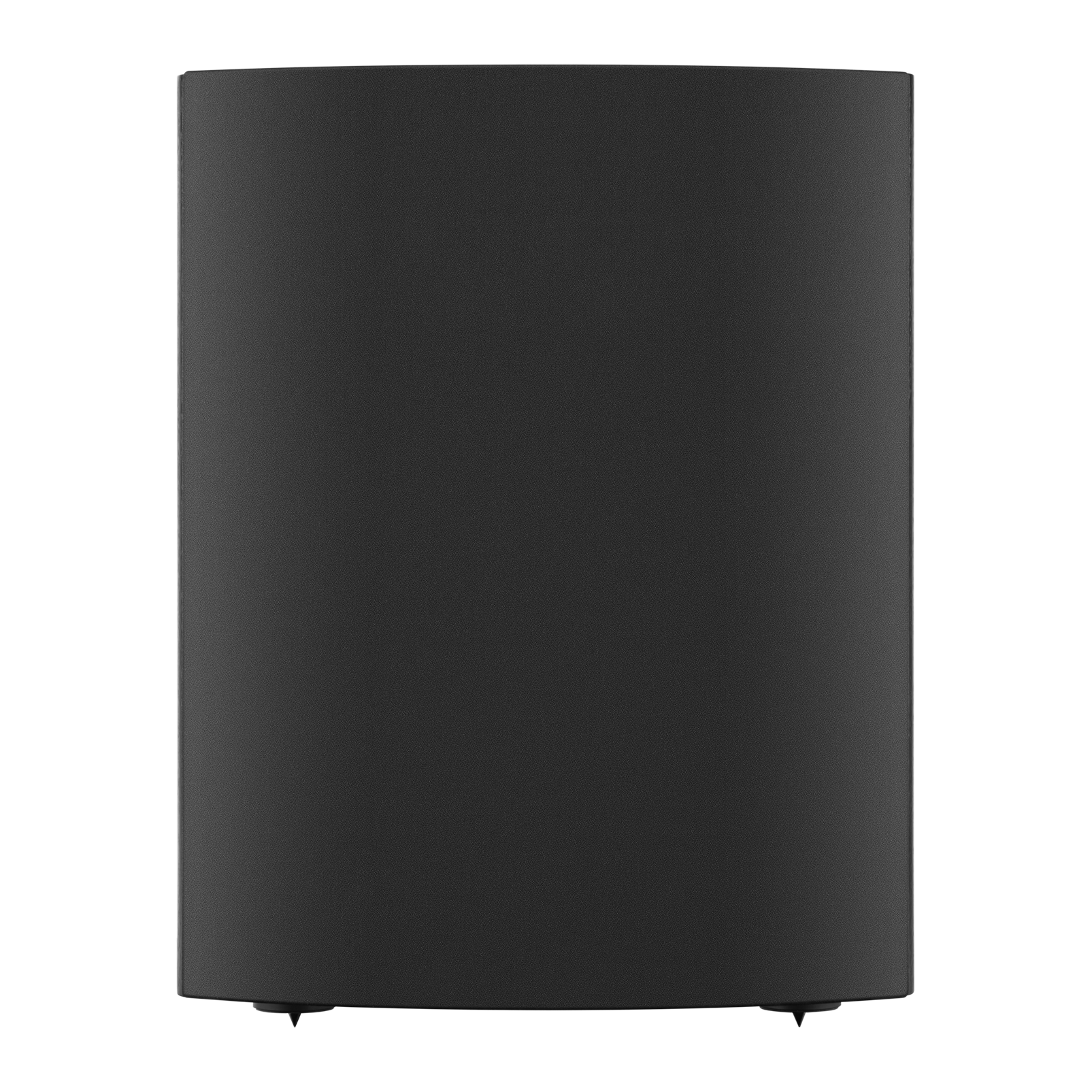

  • SSW-5 - Black - 12 -inch (300mm) 1,000W powered subwoofer - Detailshot 2
