SCL-9XL

2 ½ -way Quadruple 5.25-inch Surface Mount Loudspeaker

The SCL-9XL is a surface-mount loudspeaker featuring a symmetrical design to be used horizontally or vertically as an on-wall LCR or as an on-wall surround. It features JBL’s patented 2410H-2 1-inch (25mm) HF compression driver mated to a symmetrical High-Definition Imaging (HDI™) horn. Quadruple 5 ¼ -inch (130mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2 ½ -way network configuration. With a sealed enclosure, the low-profile design is both elegant and discreet while offering an easy and simple installation where in-wall fitting is not possible and performance is vital.

Find a Dealer

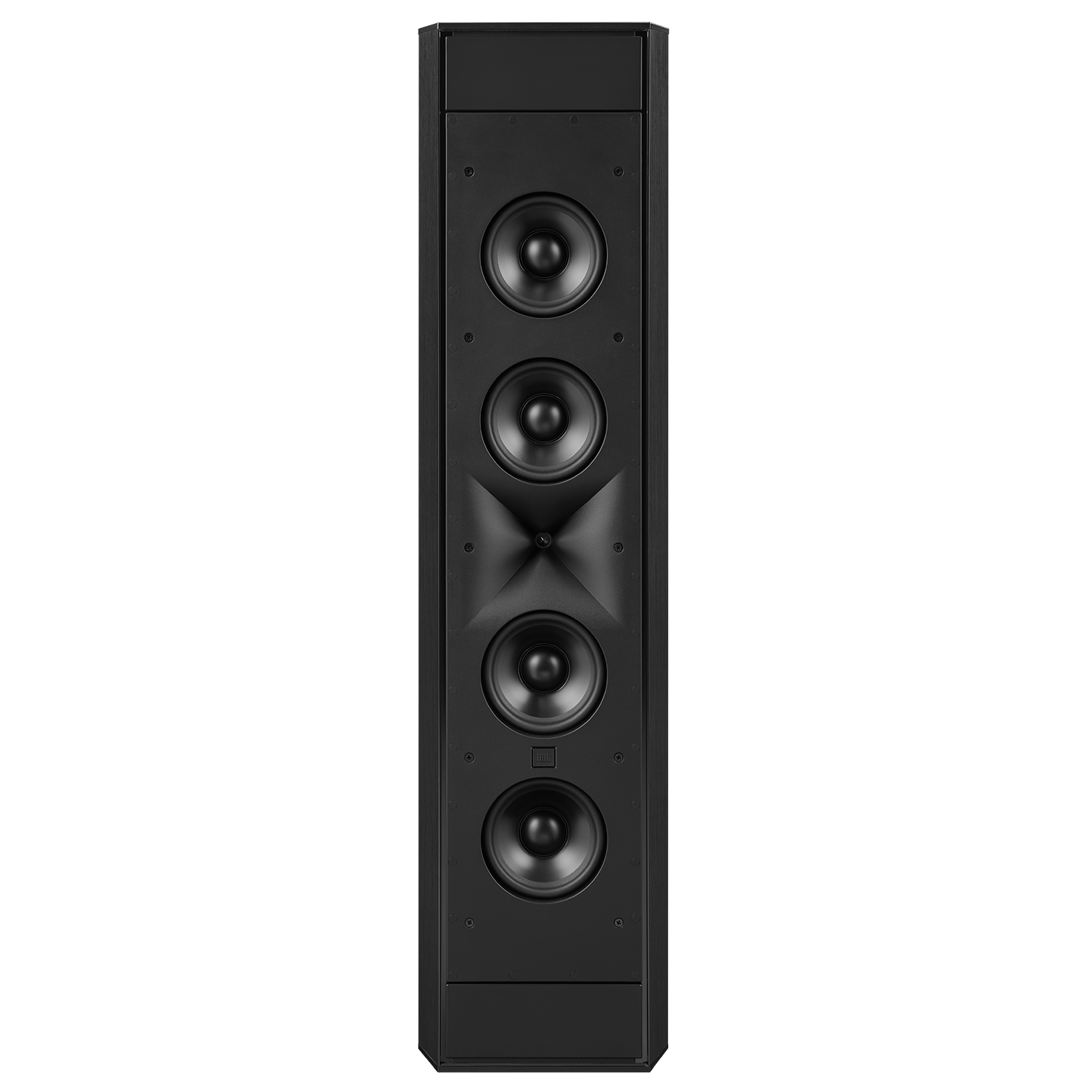

SCL-9XL - Black - 2 ½ -way Quadruple 5.25-inch Surface Mount Loudspeaker - Hero

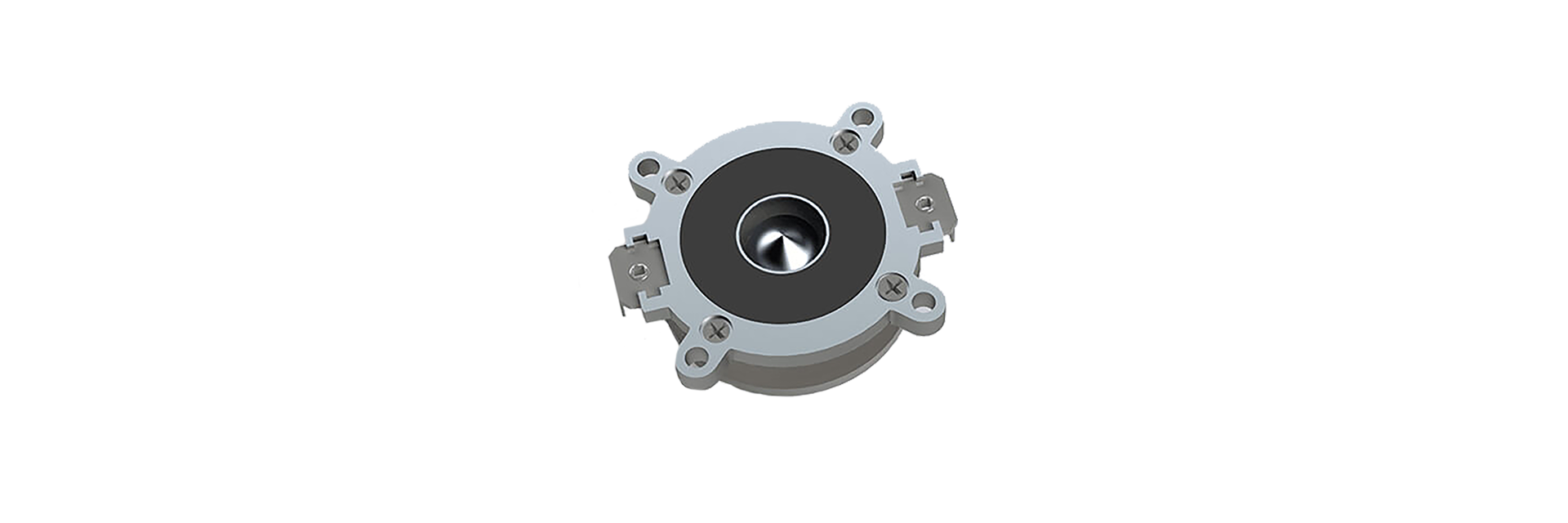

Patented 2410H-2 1-inch (25mm) HF compression driver

Patented 2410H-2 1-inch (25mm) HF compression driver

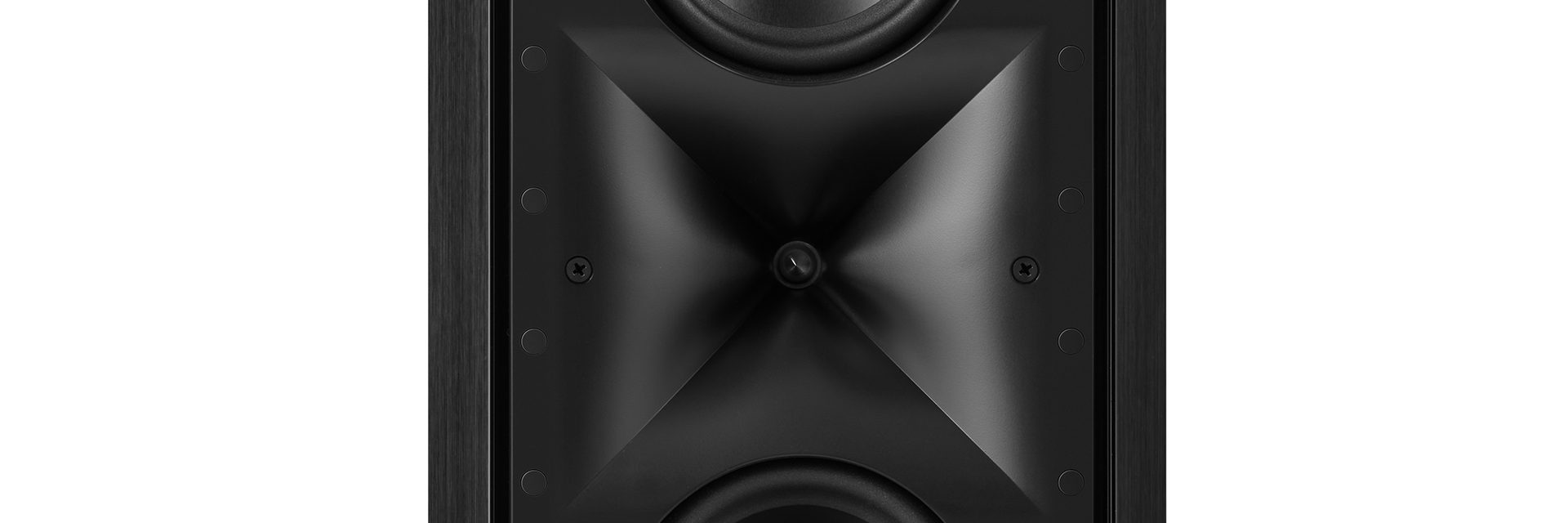

Patented High-Definition Imaging (HDI™) horn geometry

Patented High-Definition Imaging (HDI™) horn geometry

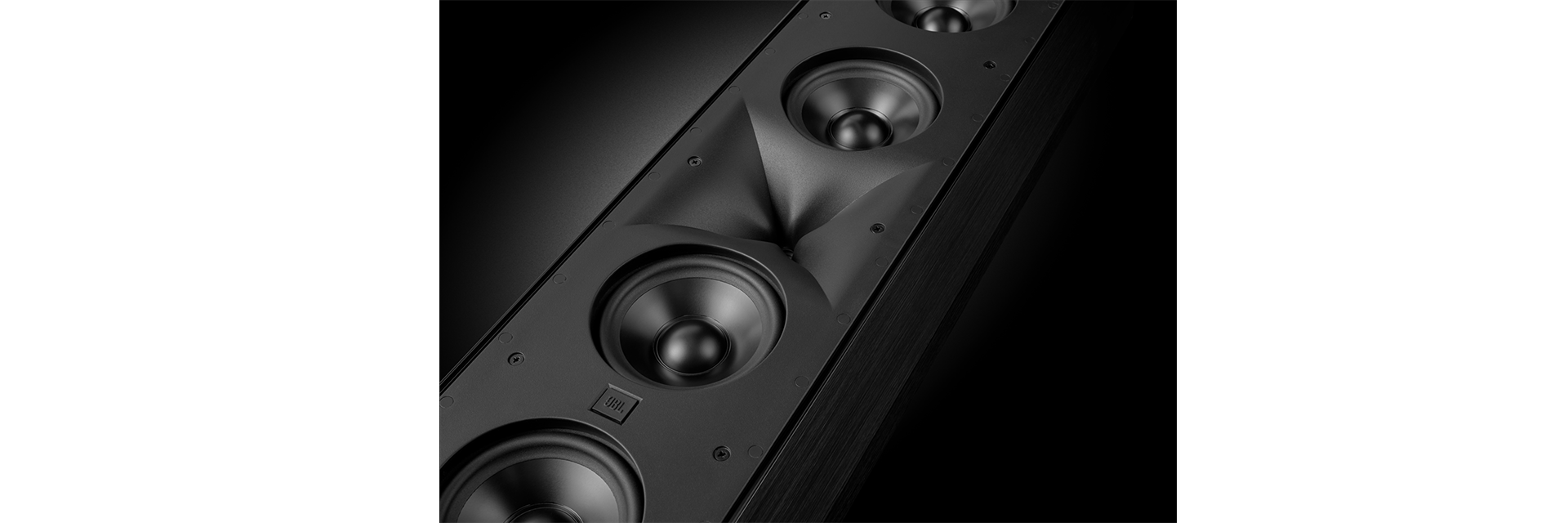

Quadruple 5 ¼ -inch (130mm) Advanced Aluminum Matrix cone, cast-frame woofers

Quadruple 5 ¼ -inch (130mm) Advanced Aluminum Matrix cone, cast-frame woofers

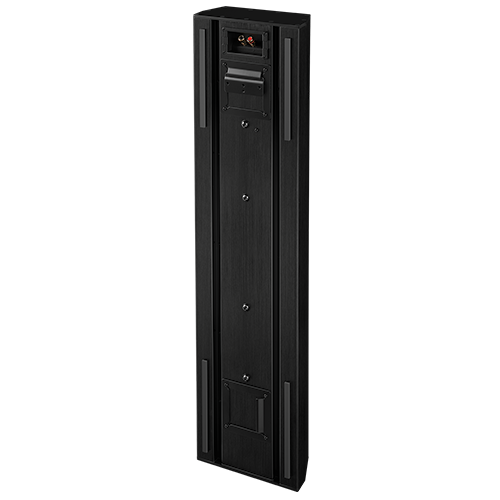

Molded baffle with integrated aluminum enclosure and isolation mounting system

Molded baffle with integrated aluminum enclosure and isolation mounting system

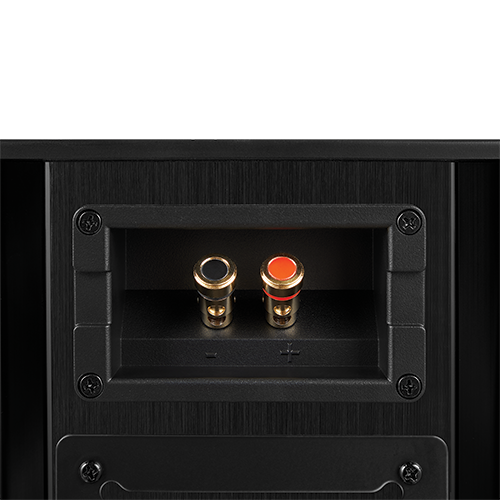

Premium network components & gold plated, spring-loaded binding posts

Premium network components & gold plated, spring-loaded binding posts

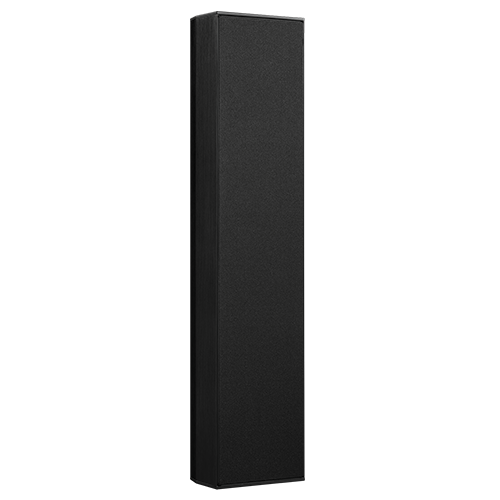

Magnetically attachable cloth grille

Magnetically attachable cloth grille

Specifications

General Specifications

Type 2½‑way on‑wall loudspeaker
Low Frequency Driver Quadruple 5¼‑inch (130mm) cast‑frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver 2410H‑2, 1‑inch (25mm) high frequency compression driver
Inputs Spring-loaded gold-plated binding posts
Power Handling 200W RMS (CEA-426B specification, at rated load impedance)
Frequency Response 64Hz – 20kHz (-6dB)
Coverage Angle (-6dB) 90° Horizontal, 90° Vertical, averaged over 2kHz-10kHz
Sensitivity (2.83V@1m) 90dB
Impedance 4Ω nominal, 3.0Ω minimum @ 197Hz
Crossover Frequencies 1.7kHz
Finished Dimensions with Grille (H x W x D) 37.3” x 9.5” x 4.3” (949mm x 243mm x 110mm)
Product Weight 34.8lbs (15.8kg)
Shipping Weight 43.2lbs (19.6kg)
Enclosure type Sealed, on-wall mount
Finish Black anodized brushed aluminum with magnetically attachable cloth grille

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.

  • SCL-9XL - Black - 2 ½ -way Quadruple 5.25-inch Surface Mount Loudspeaker - Hero

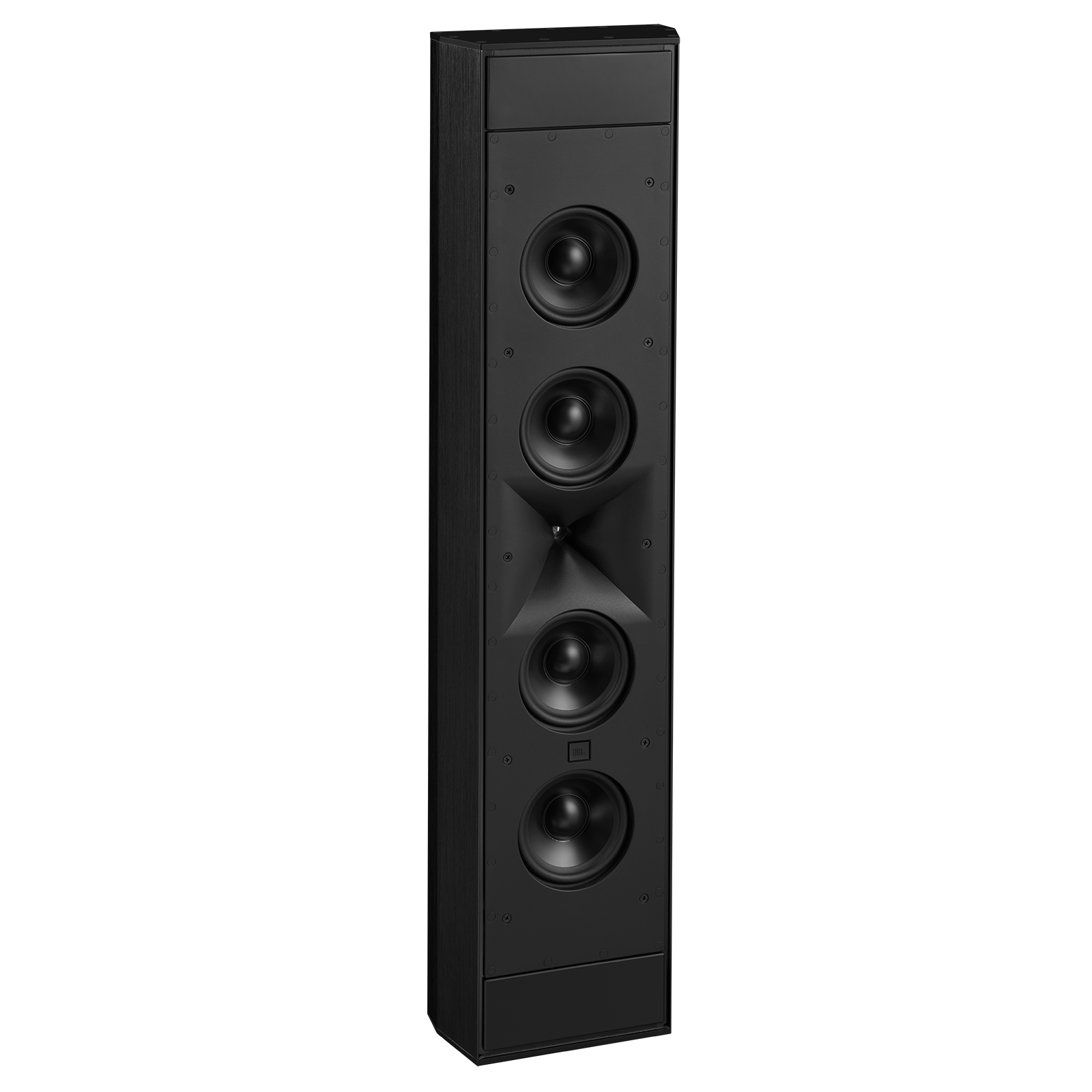

  • SCL-9XL - Black - 2 ½ -way Quadruple 5.25-inch Surface Mount Loudspeaker - Detailshot 1

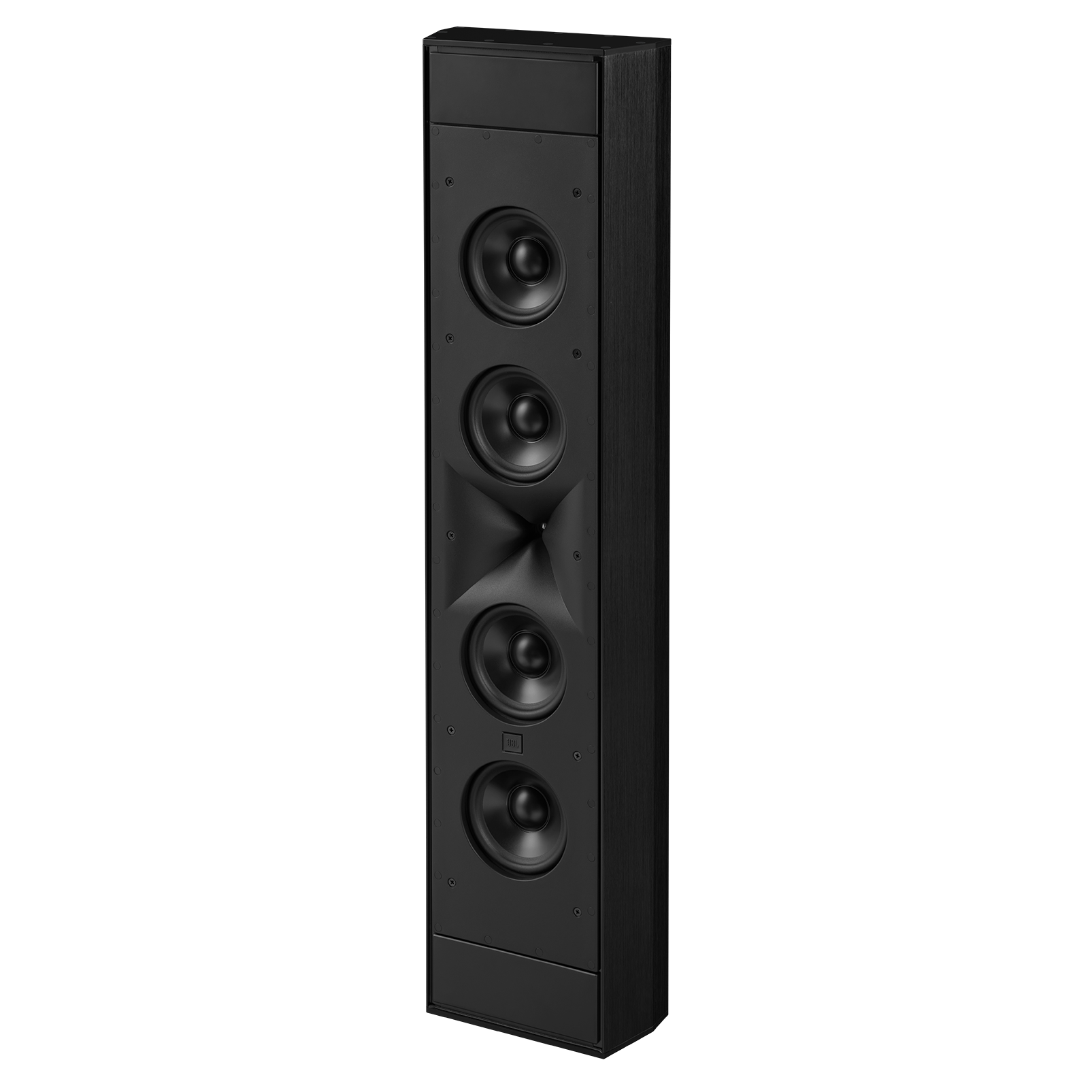

  • SCL-9XL - Black - 2 ½ -way Quadruple 5.25-inch Surface Mount Loudspeaker - Detailshot 2

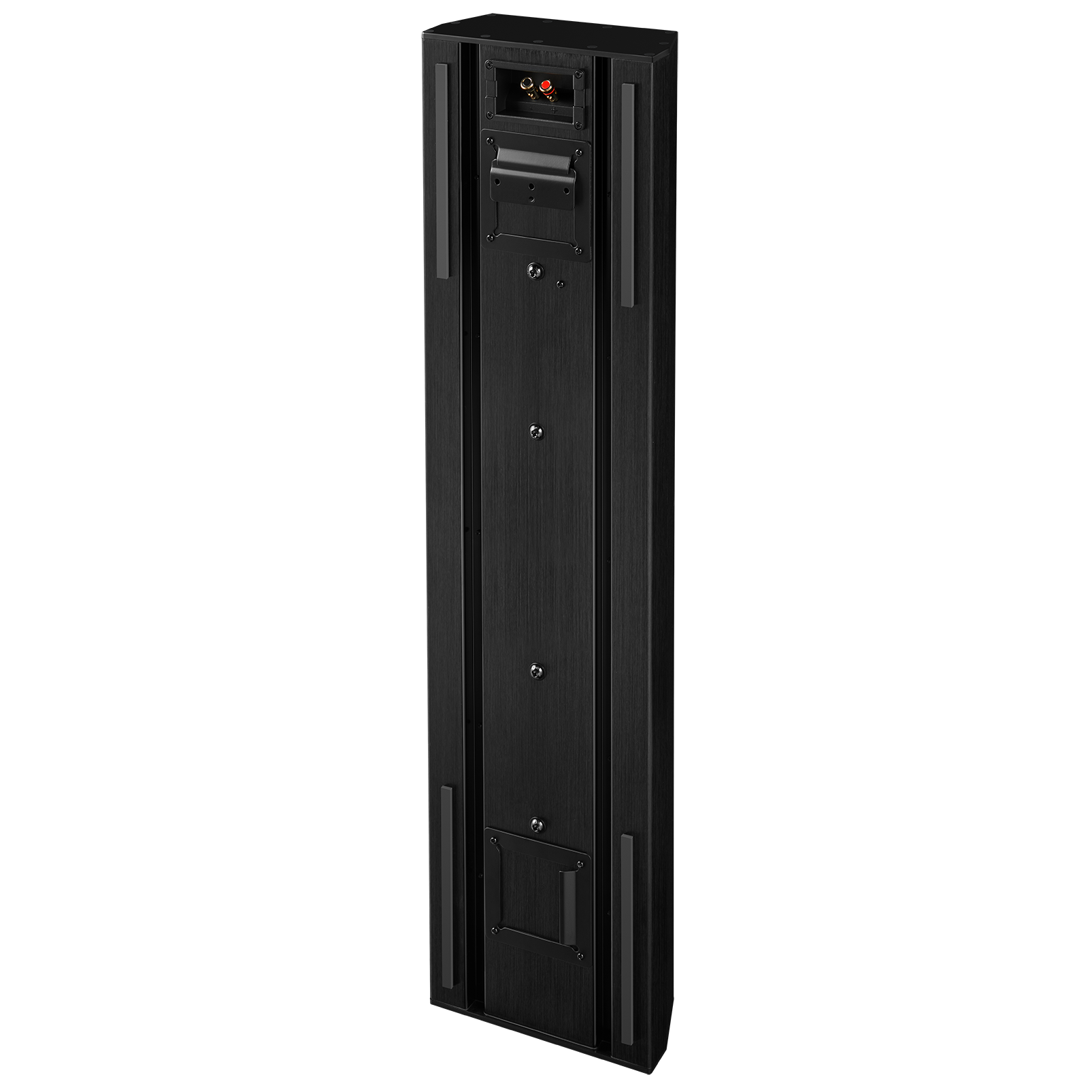

  • SCL-9XL - Black - 2 ½ -way Quadruple 5.25-inch Surface Mount Loudspeaker - Detailshot 3

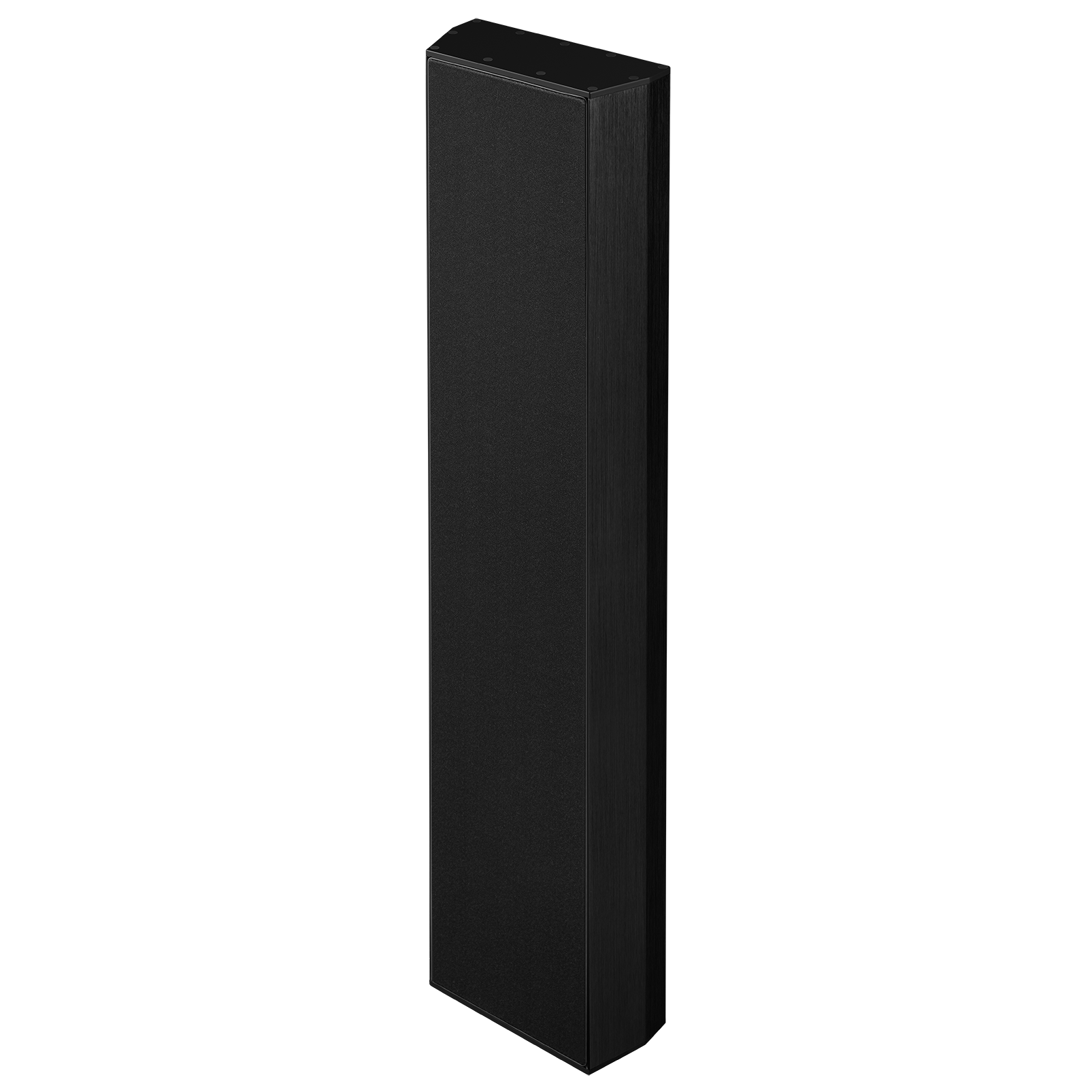

  • SCL-9XL - Black - 2 ½ -way Quadruple 5.25-inch Surface Mount Loudspeaker - Detailshot 4
