SCL-9

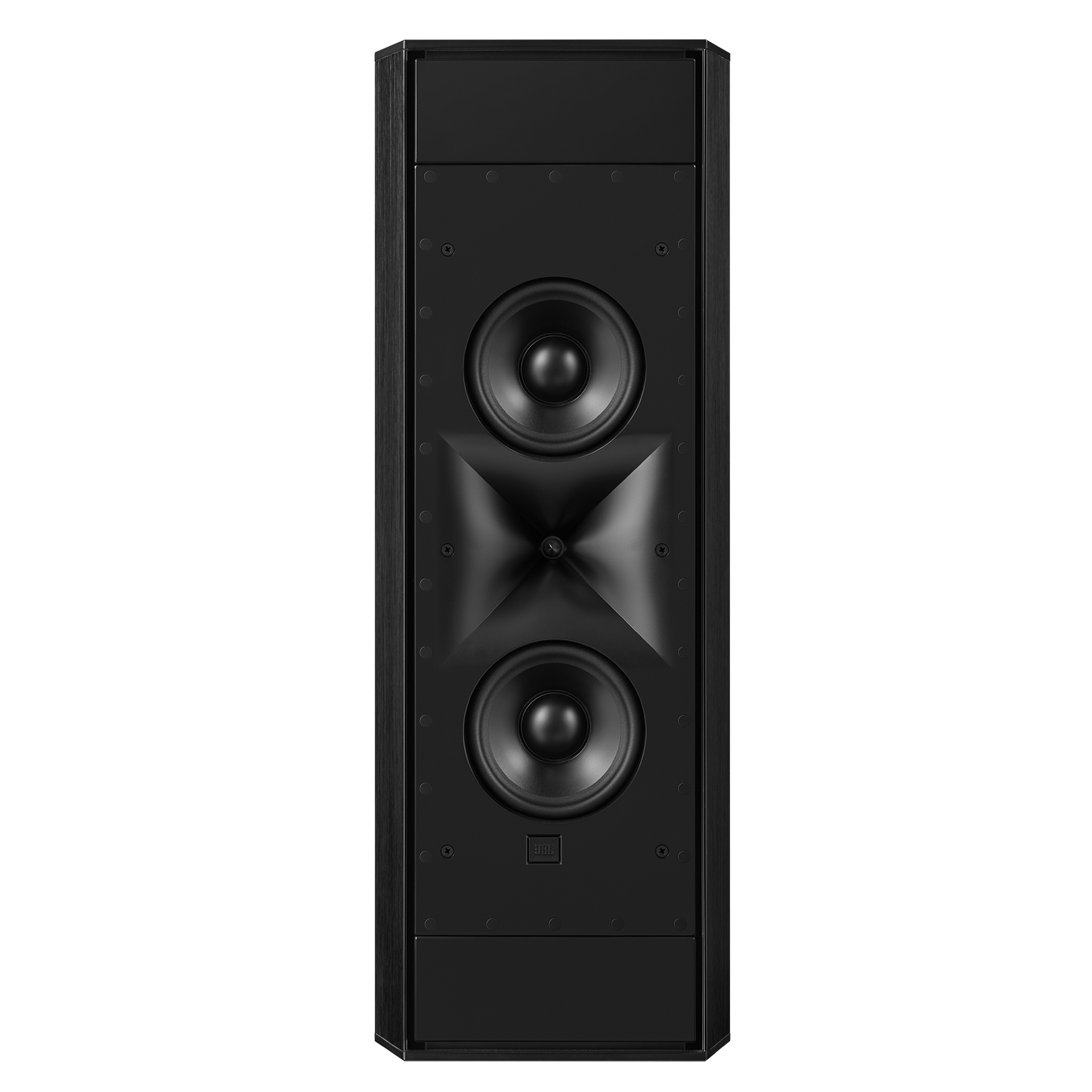

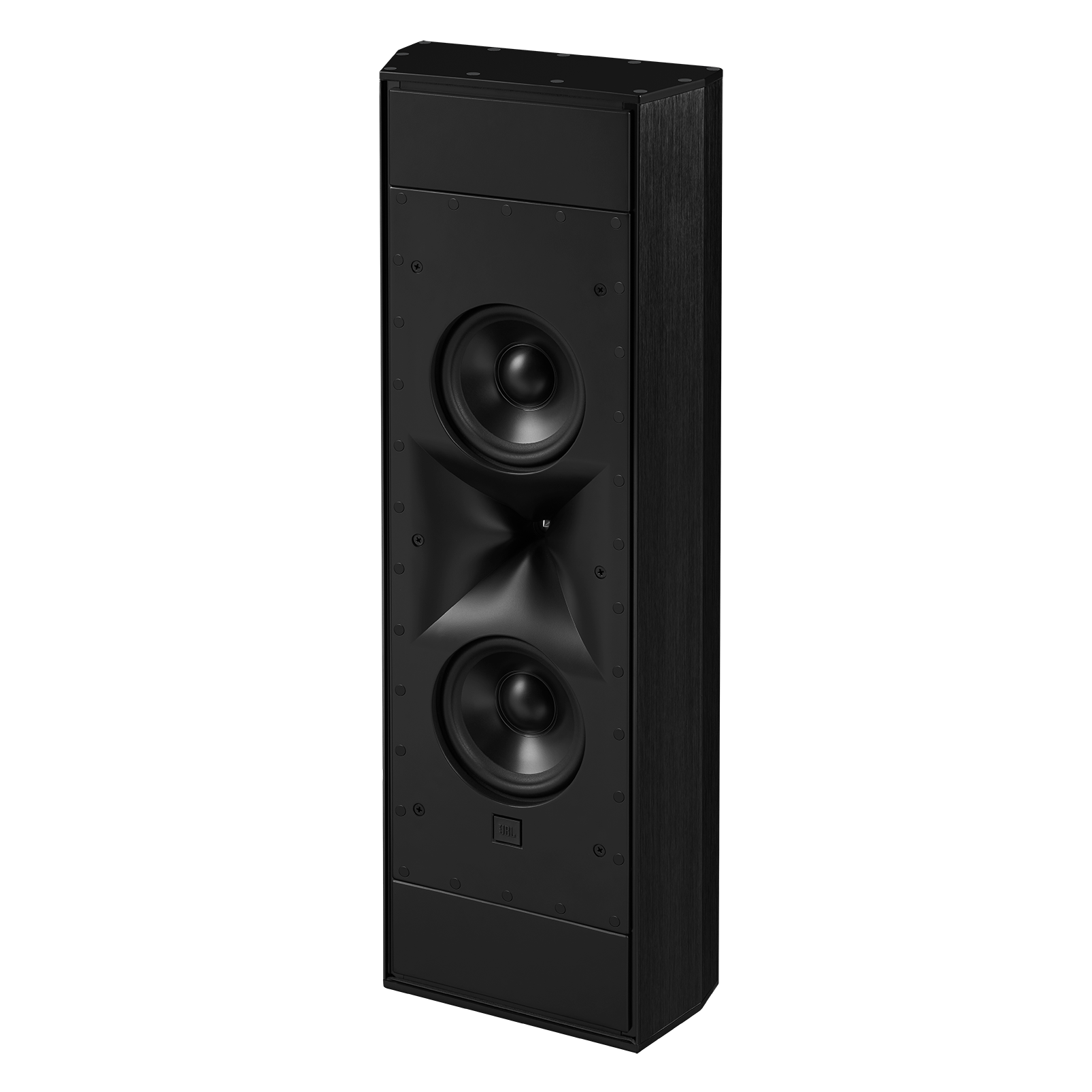

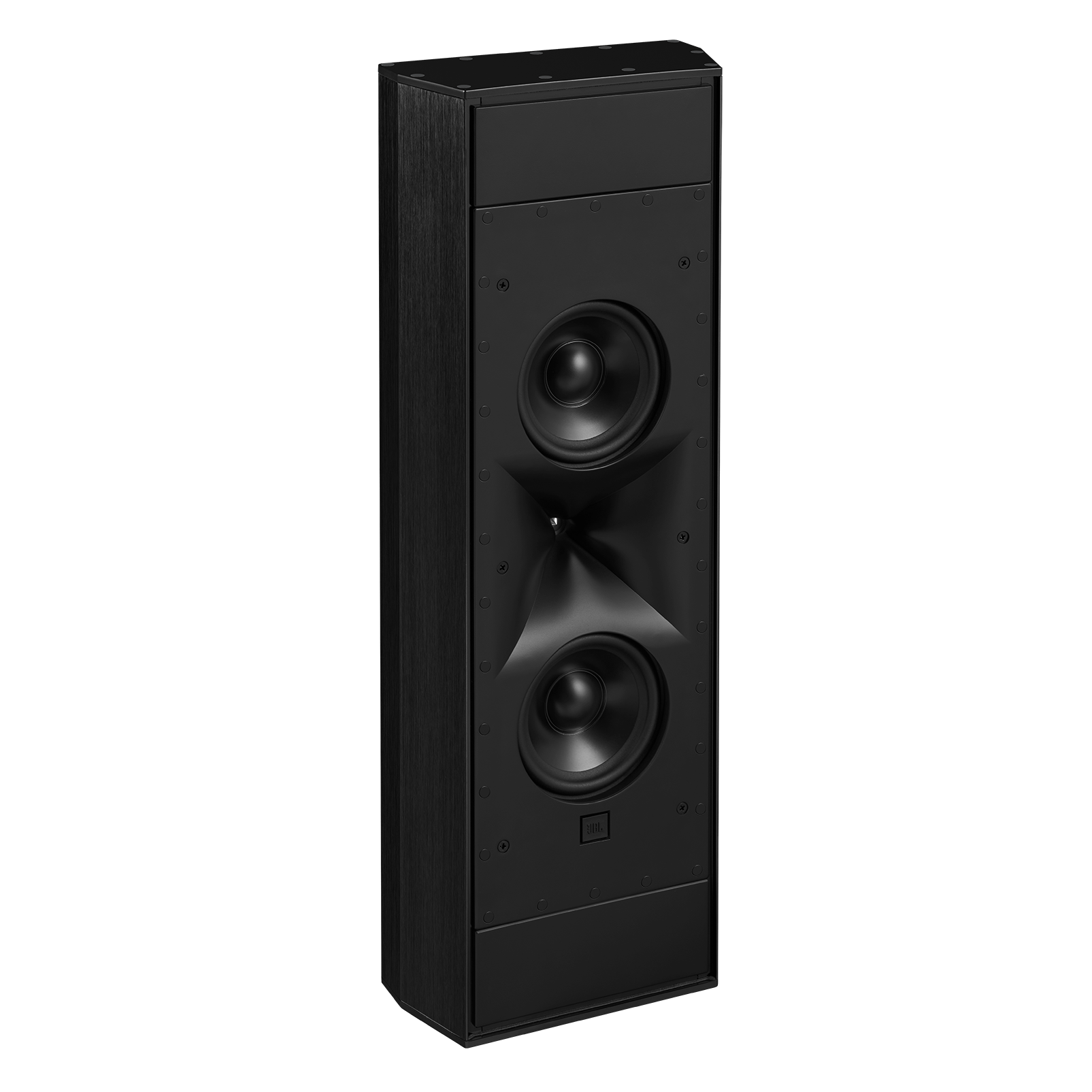

The SCL-9 is a surface-mount loudspeaker featuring a symmetrical design to be used horizontally or vertically as an on-wall LCR or as an on-wall surround. It features JBL’s patented 2410H-2 1-inch (25mm) HF compression driver mated to a symmetrical High-Definition Imaging (HDI™) horn. Dual 5 ¼ -inch (130mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2-way network configuration. With a sealed enclosure, the low-profile design is both elegant and discreet while offering an easy and simple installation where in-wall fitting is not possible and performance is vital.

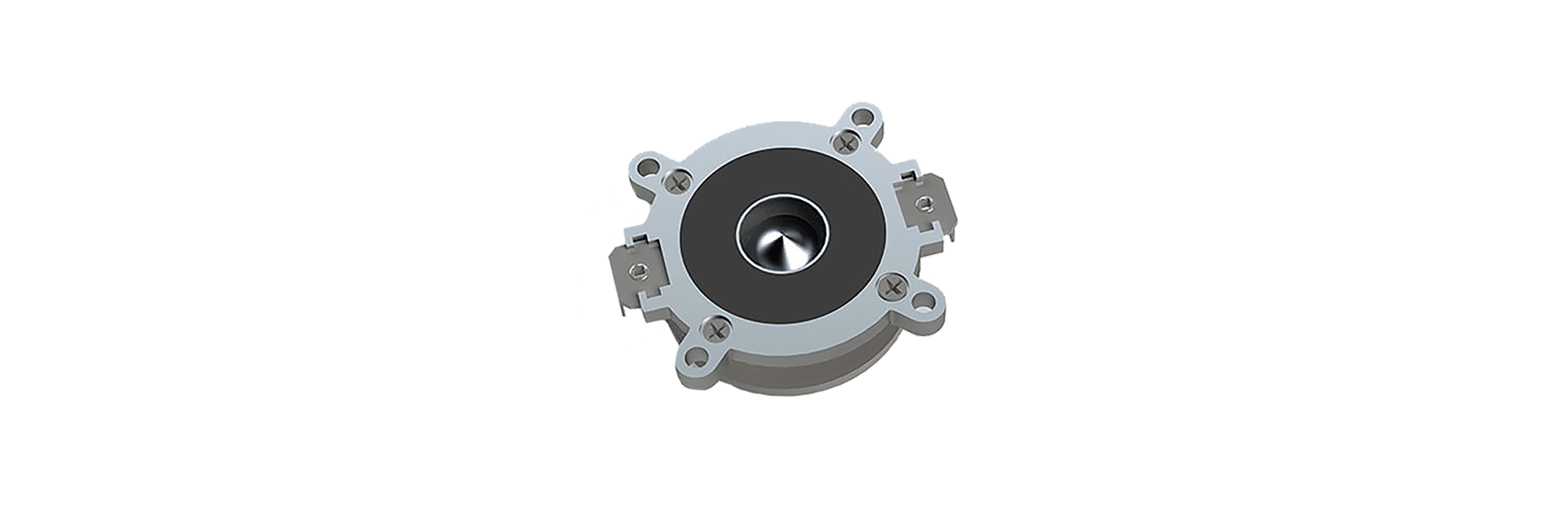

Patented 2410H-2 1-inch (25mm) HF compression driver

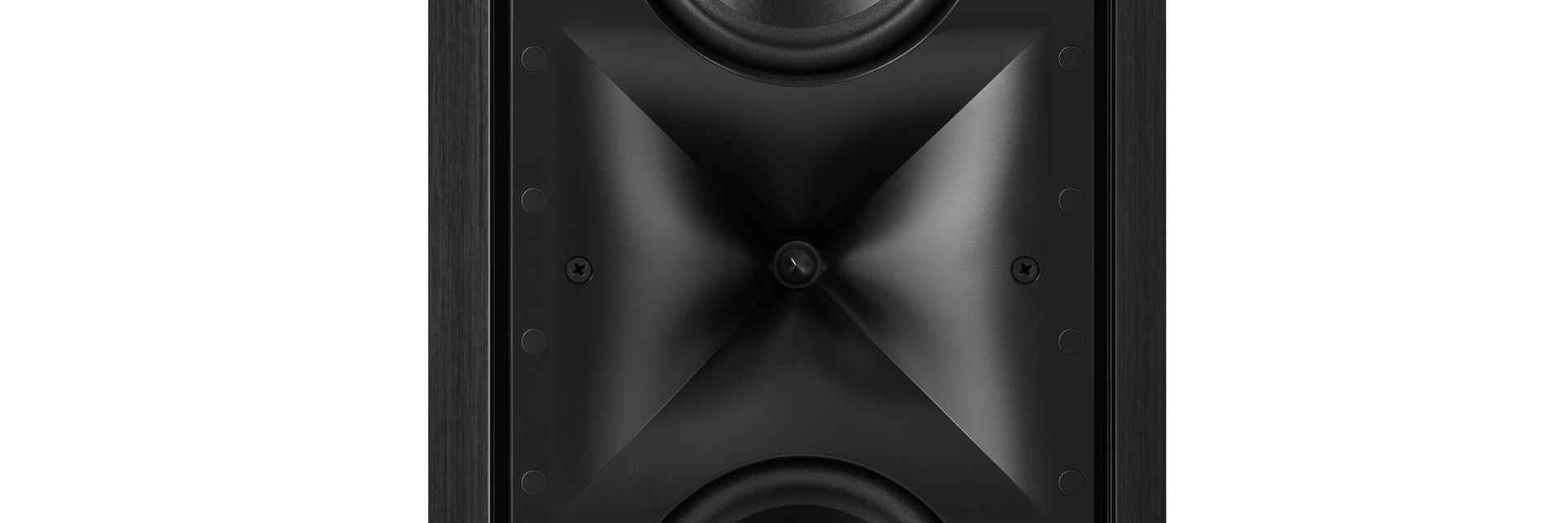

Patented High-Definition Imaging (HDI™) horn geometry

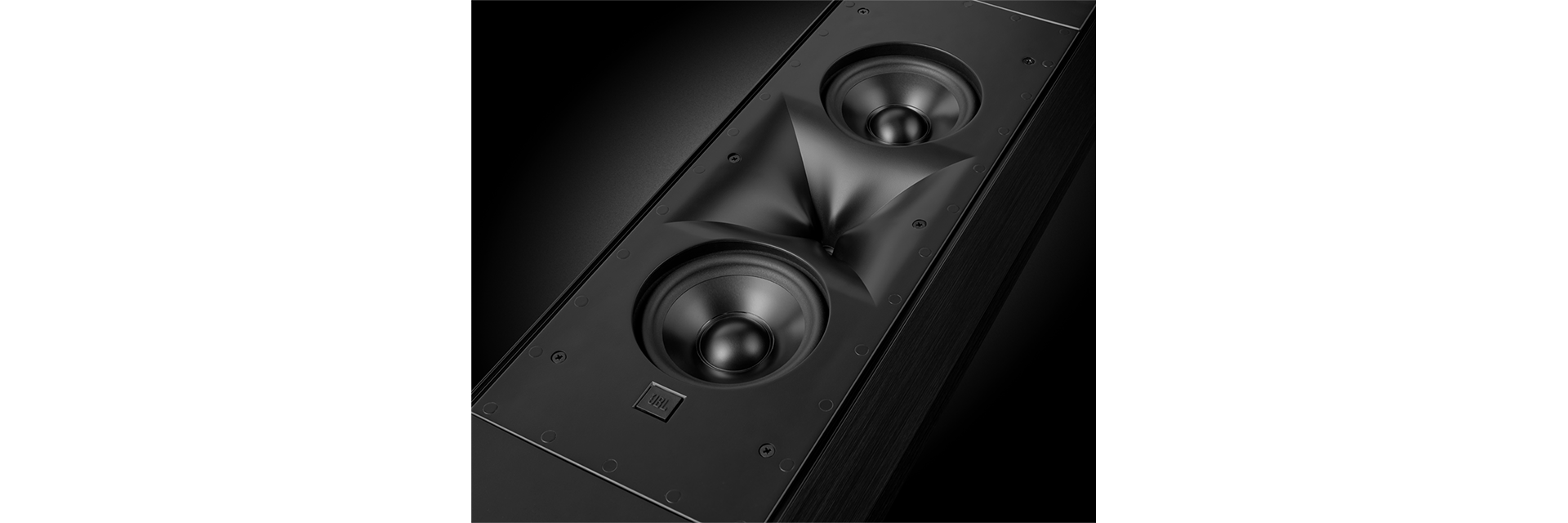

Dual 5 ¼ -inch (130mm) Advanced Aluminum Matrix cone, cast-frame woofers

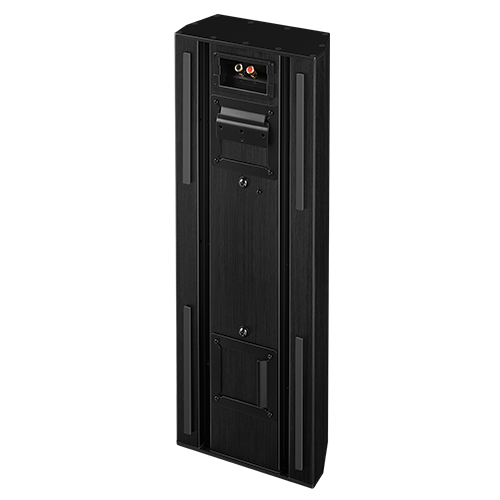

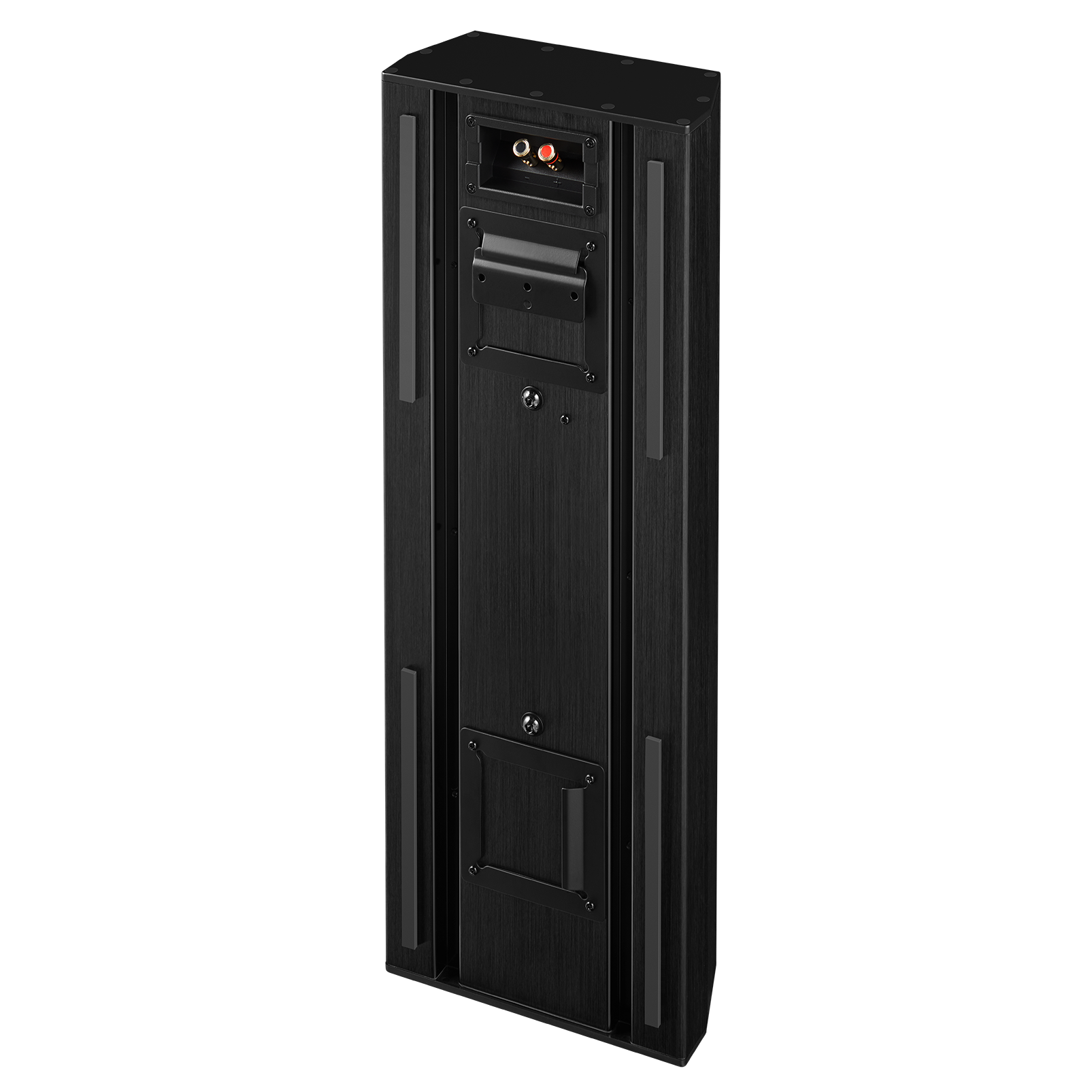

Molded baffle with integrated aluminum enclosure and isolation mounting system

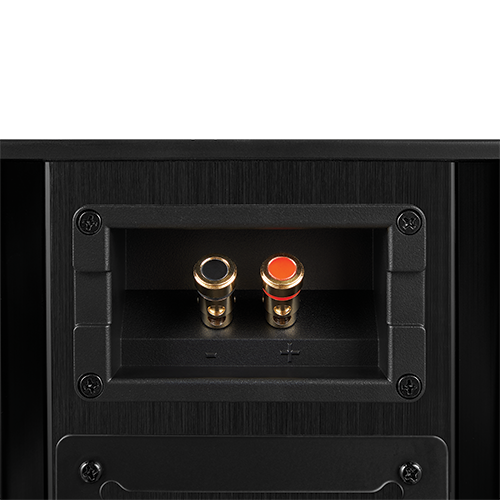

Premium network components & gold plated, spring-loaded binding posts

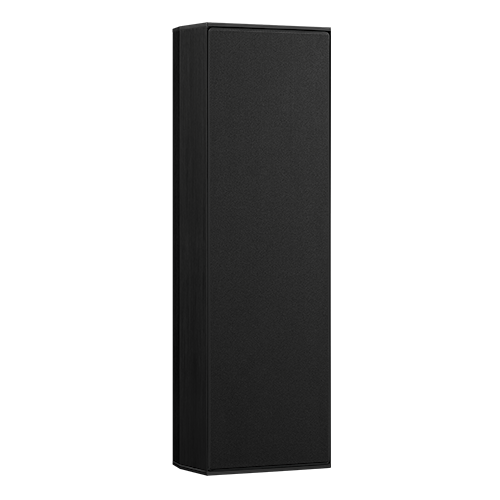

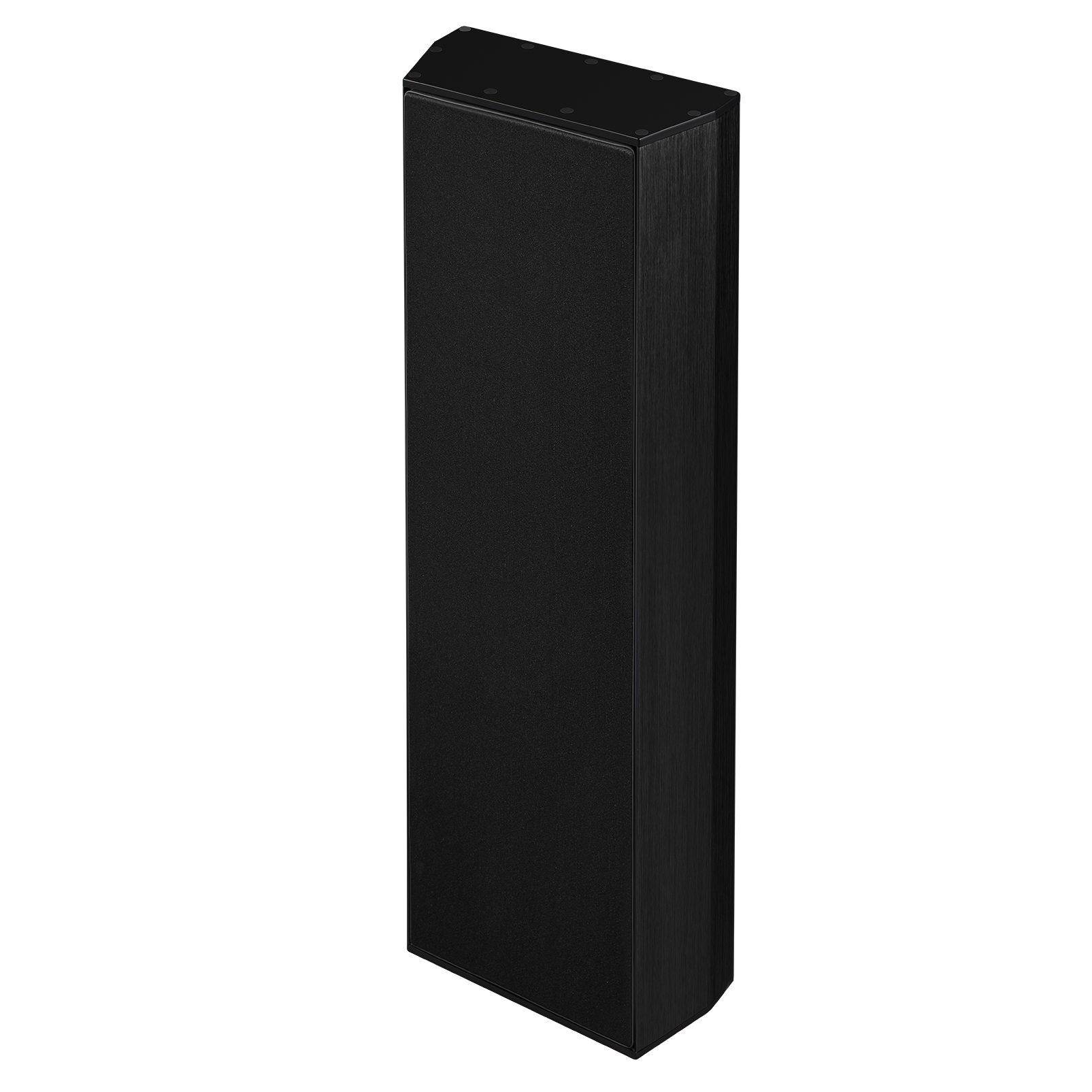

Magnetically attachable cloth grille
Specifications
General Specifications
Type
2‑way on‑wall loudspeaker
Low Frequency Driver
Dual 5¼‑inch (130mm) cast-frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver
2410H‑2, 1‑inch (25mm) high frequency compression driver
Inputs
Spring-loaded gold-plated binding posts
Power Handling
125W RMS (CEA-426B specification, at rated load impedance)
Frequency Response
64Hz – 20kHz (-6dB)
Coverage Angle (-6dB)
90° Horizontal, 90° Vertical, averaged over 2kHz-10kHz
Sensitivity (2.83V@1m)
87dB
Impedance
4Ω nominal, 4.0Ω minimum @ 503Hz
Crossover Frequencies
1.7kHz
Finished Dimensions with Grille (H x W x D)
25.5” x 9.2” x 4.2” (648mm x 233mm x 112mm)
Product Weight
22lbs (10kg)
Shipping Weight
29.1lbs (13.2kg)
Enclosure type
Sealed, on-wall mount
Finish
Black anodized brushed aluminum with magnetically attachable cloth grille
