SCL-10

2 -way Dual 6 ½ -inch Built-In Loudspeaker

The SCL-10 is a custom in-room/built-in loudspeaker designed as a built-in solution as LCR behind a projection screen, or in-room in custom cabinetry vertically or horizontally. It features JBL’s patented 2409 1-inch (25mm) compression driver mated to a High-Definition Imaging (HDI™) horn. Dual 6.5-inch (165mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2 -way network configuration allowing for installation vertically or horizontally without lobing or other acoustic issues found in traditional designs. The SCL-10 delivers extraordinary performance in a wide variety of applications and is ideal for use in medium and large-sized rooms.

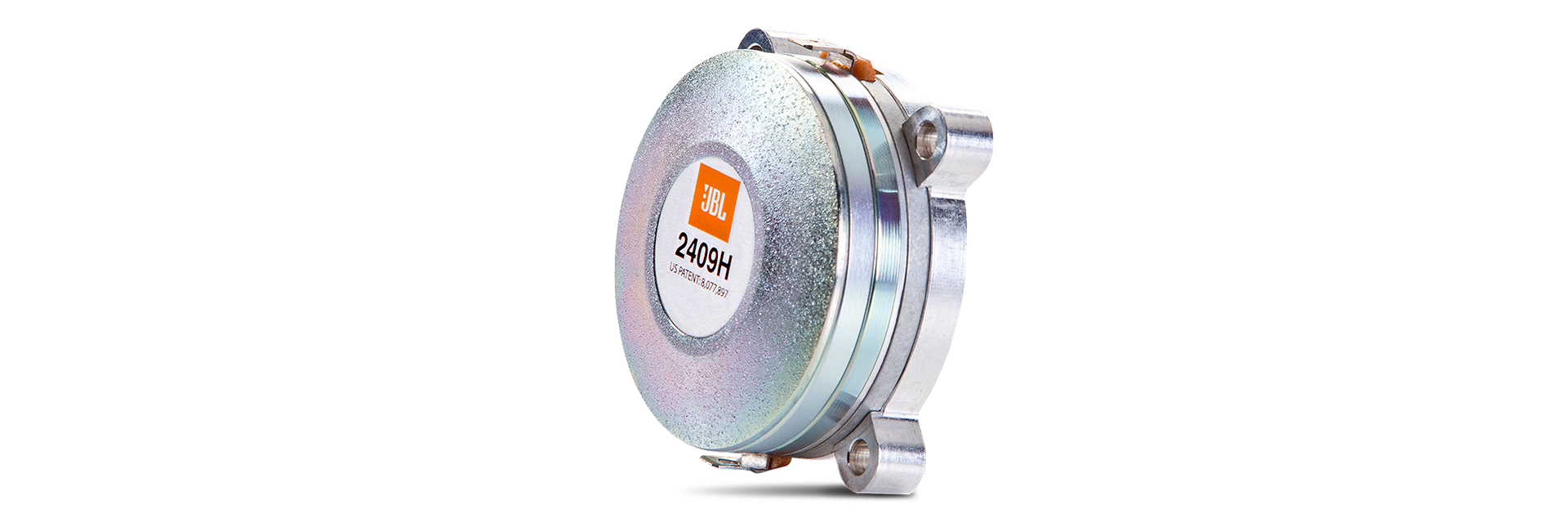

Patented JBL 2409H 1-inch (25mm) HF compression driver

Patented JBL 2409H 1-inch (25mm) HF compression driver

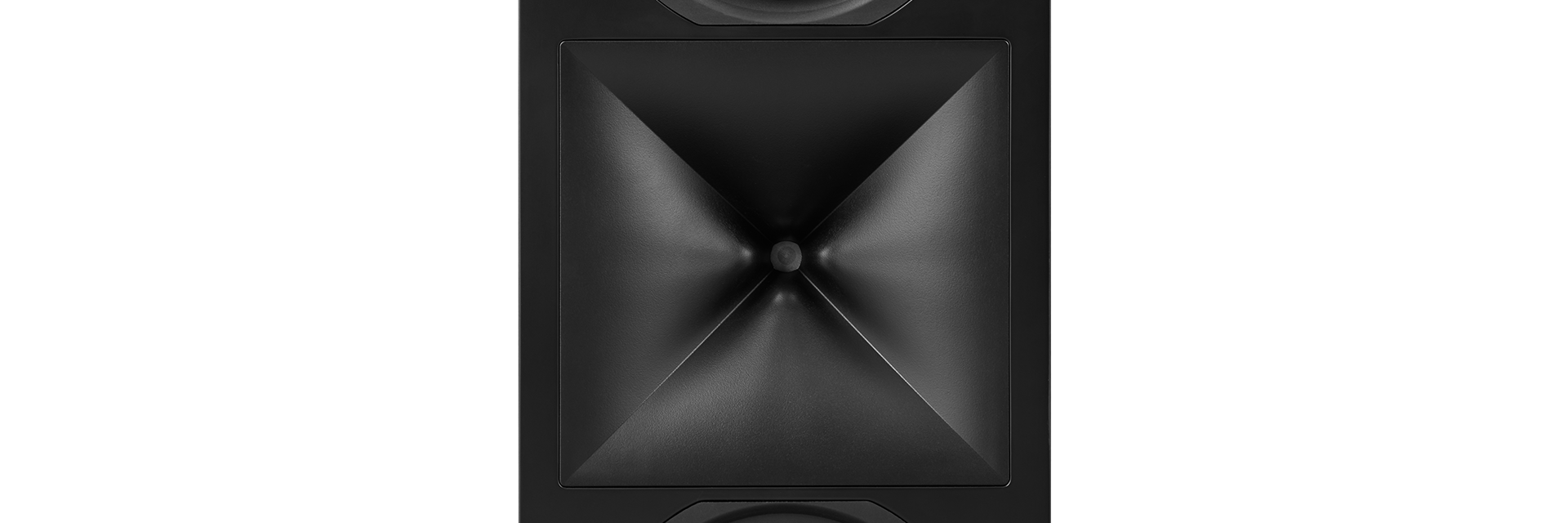

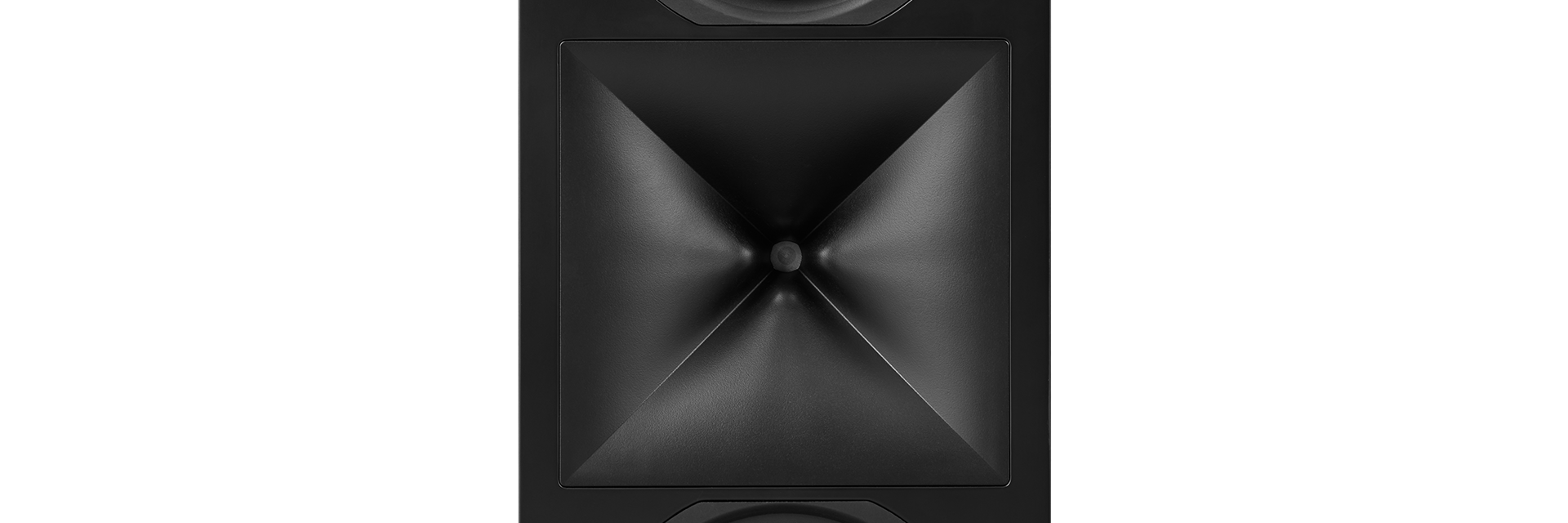

Patented High-Definition Imaging (HDI™) waveguide geometry

Patented High-Definition Imaging (HDI™) waveguide geometry

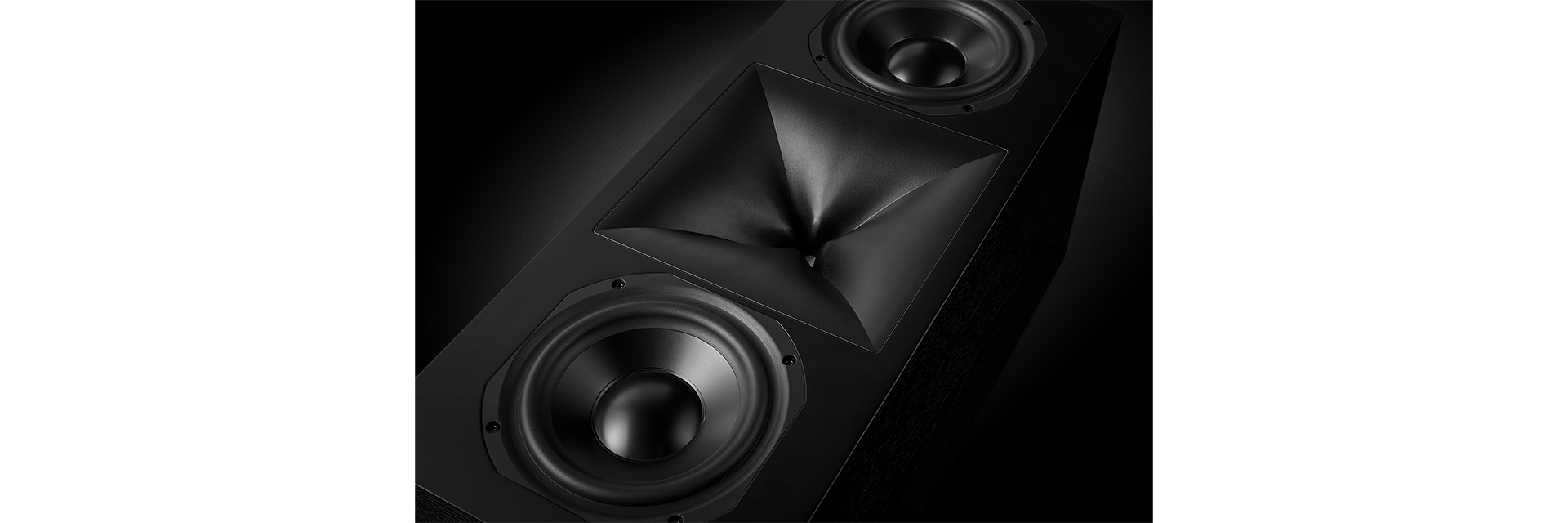

Dual 6.5-inch (165mm) Advanced Aluminum Matrix cone, cast-frame woofers

Dual 6.5-inch (165mm) Advanced Aluminum Matrix cone, cast-frame woofers

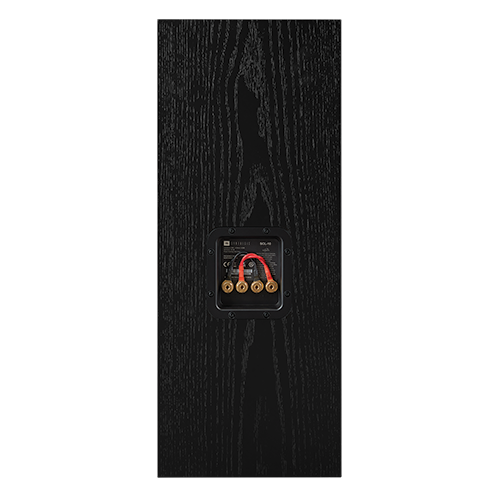

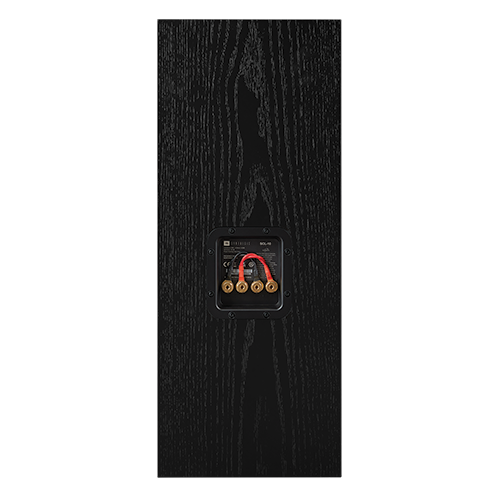

Advanced crossover network with bi-wire/bi-amp capability

Advanced crossover network with bi-wire/bi-amp capability

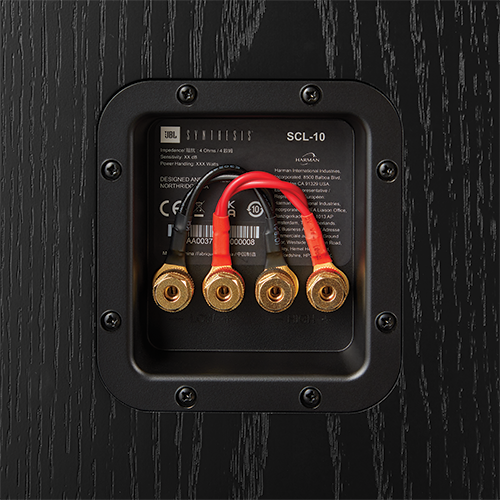

Dual set of gold-plated spring-loaded binding post input terminals

Dual set of gold-plated spring-loaded binding post input terminals

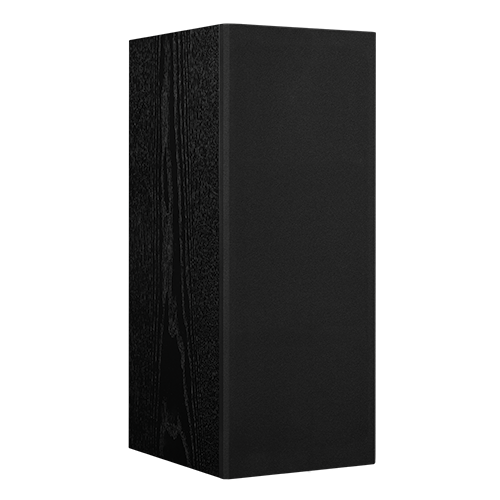

Magnetically attachable cloth grille

Magnetically attachable cloth grille

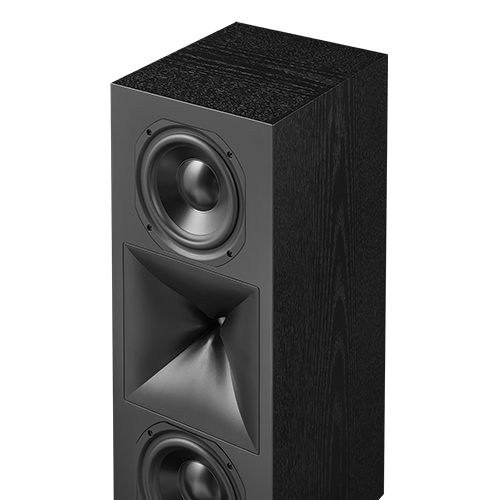

Satin black ash wood veneer finish

Satin black ash wood veneer finish

Specifications

General Specifications

Type 2‑way built‑in loudspeaker
Low Frequency Driver Dual 6½‑inch (165mm) cast‑frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver 2409H, 1‑inch (25mm) high frequency compression driver
Inputs Dual sets of gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling 200 Watts RMS (CEA-426B specification, at rated load impedance)
Frequency Response 53Hz – 20kHz (-6dB)
Coverage Angle (-6dB) 100° Horizontal, 80° Vertical, averaged over 2kHz-10kHz
Sensitivity (2.83V@1m) 88dB
Impedance 4Ω nominal, 4.0Ω minimum @ 197Hz
Crossover Frequencies 2.1kHzHz
Finished Dimensions with Grille (H x W x D) 23.6” x 9.5” x 11.6” (600mm x 241mm x 296mm)
Product Weight 38.6lbs (17.5)
Shipping Weight 48.3lbs (21.9kg)
Enclosure type Sealed
Finish Black ash wood veneer with magnetically attachable cloth grille

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.

  • SCL-10 - Black - 2 -way Dual 6 ½ -inch Built-In Loudspeaker - Hero

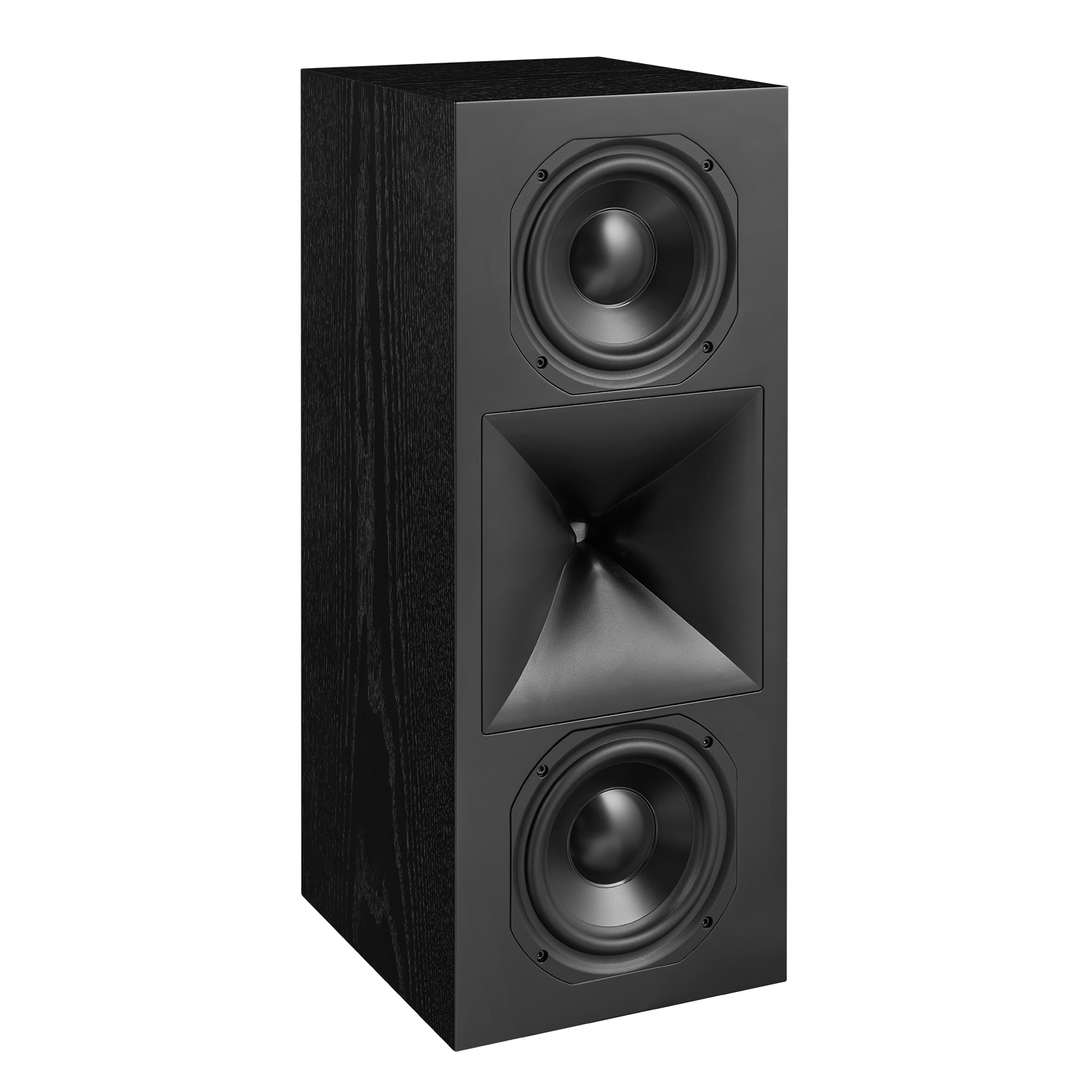

  • SCL-10 - Black - 2 -way Dual 6 ½ -inch Built-In Loudspeaker - Detailshot 1

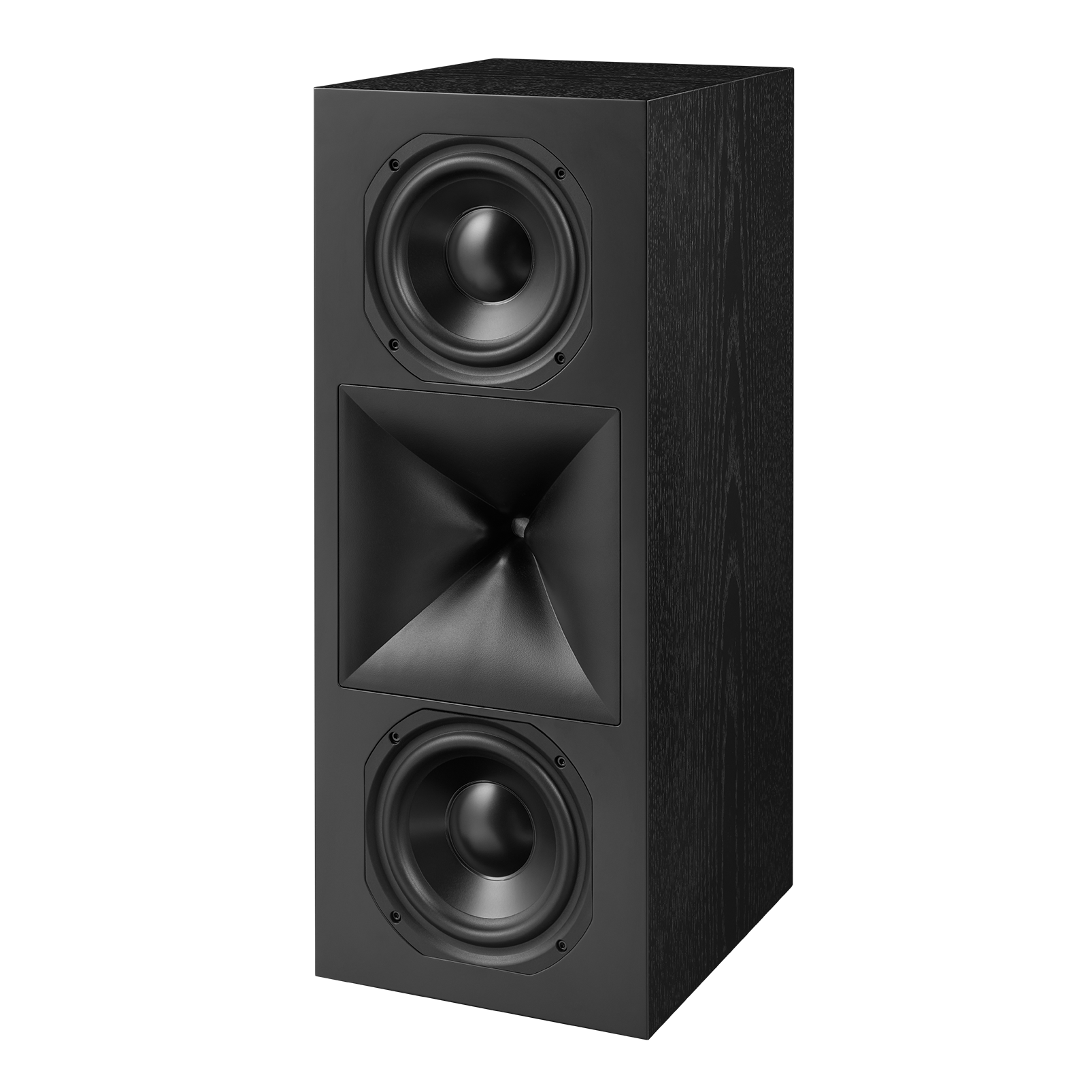

  • SCL-10 - Black - 2 -way Dual 6 ½ -inch Built-In Loudspeaker - Detailshot 2

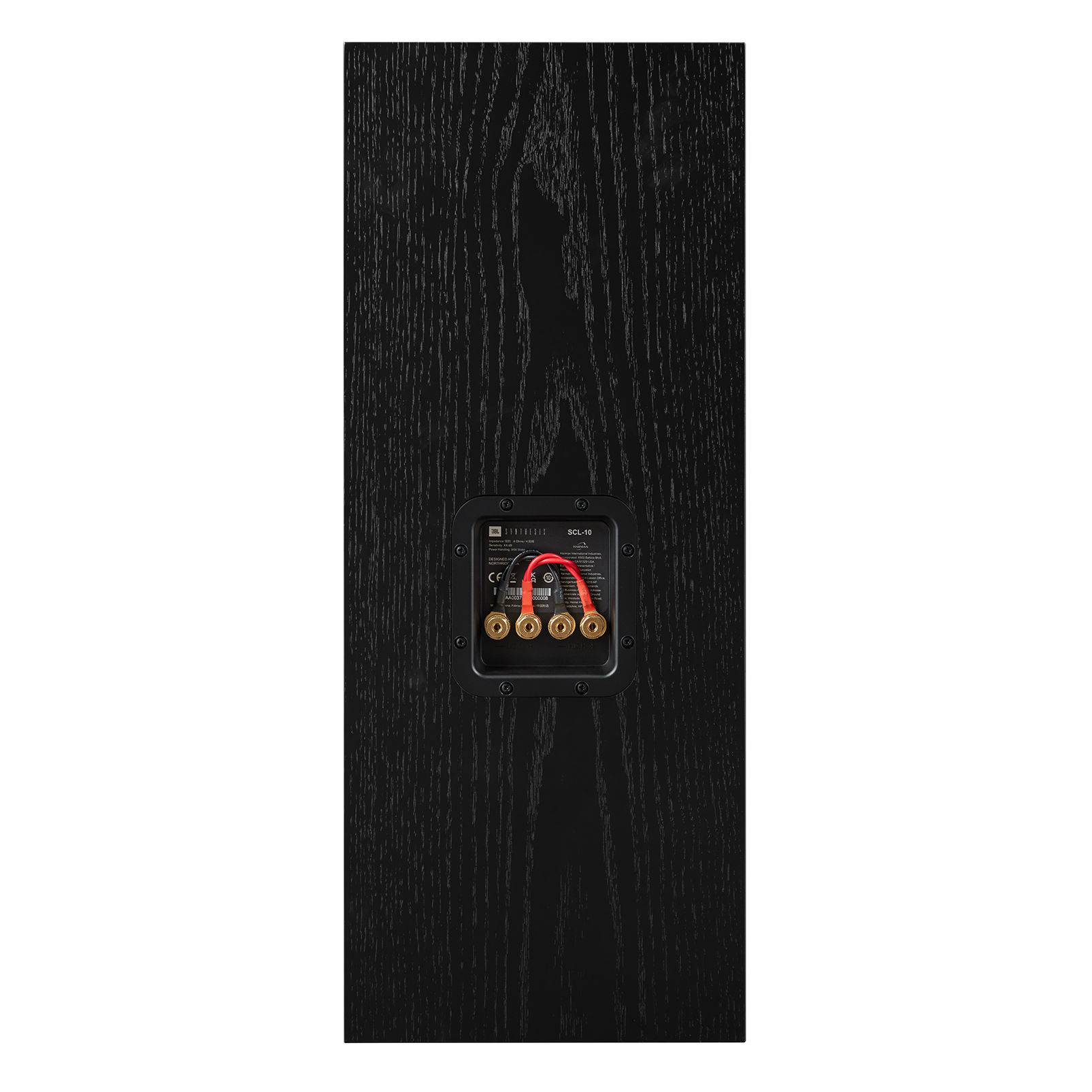

  • SCL-10 - Black - 2 -way Dual 6 ½ -inch Built-In Loudspeaker - Detailshot 3

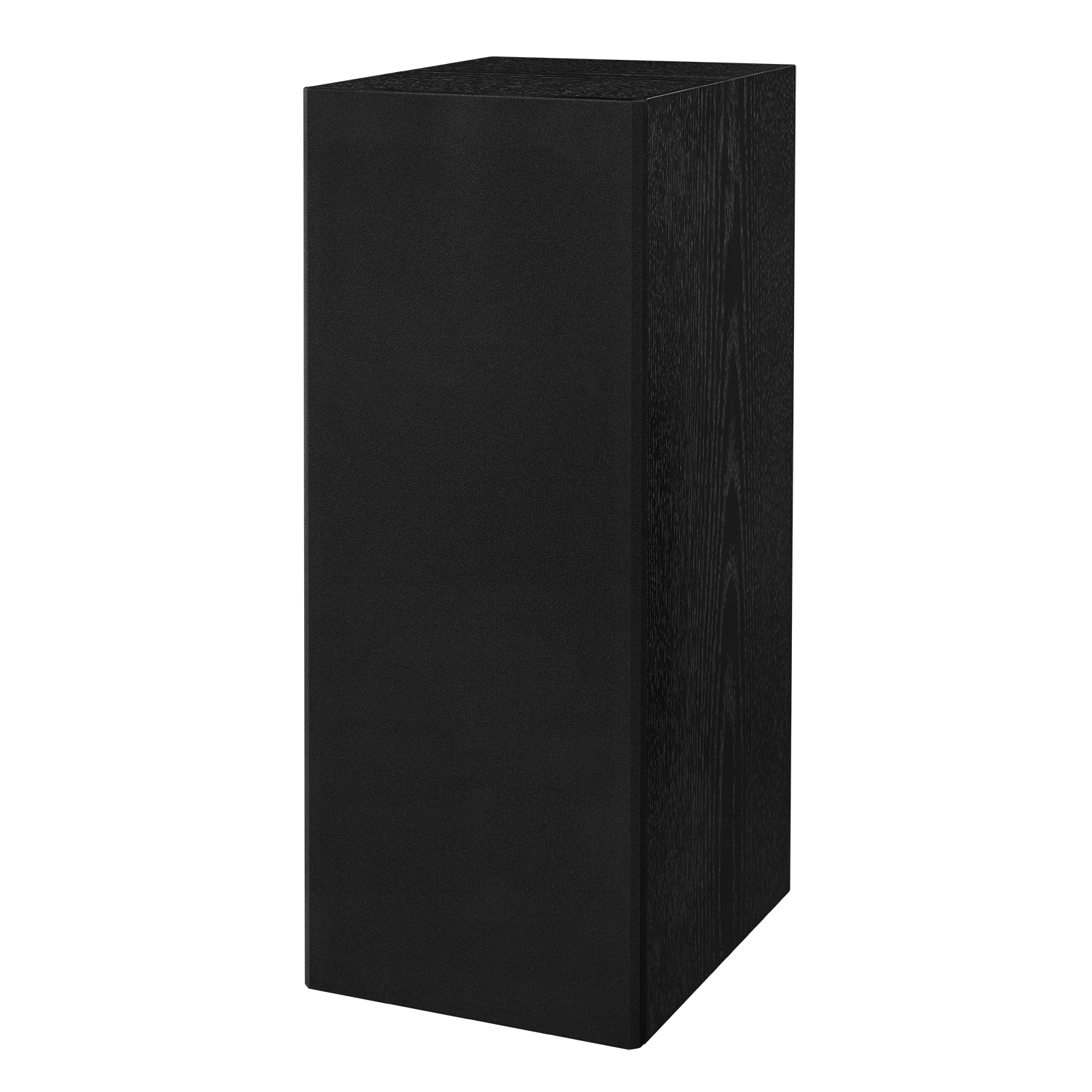

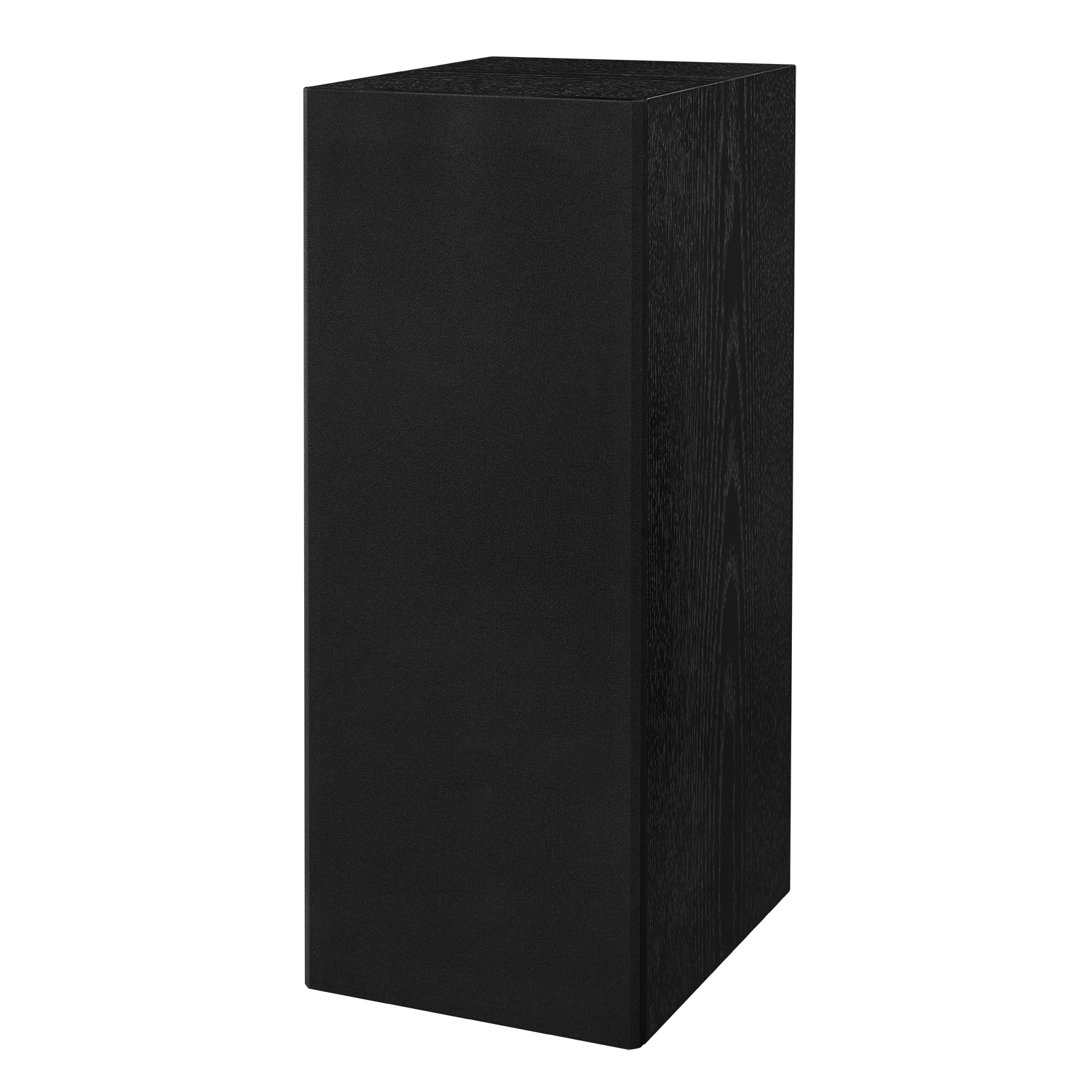

  • SCL-10 - Black - 2 -way Dual 6 ½ -inch Built-In Loudspeaker - Detailshot 4
