SDP-58

16-channel Immersive Surround Sound AV Preamplifier

The JBL Synthesis SDP-58 is designed to ensure exceptional performance without compromise and offers an unparalleled feature set that puts it far ahead of the competition. It features full support for Dolby ATMOS, DTS:X, and Auro-3D immersive audio formats. DIRAC Live with Bass Control room EQ with JBL Synthesis system enhancements provides exceptionally accurate system tuning. A full suite of digital and analog connectivity is included along DANTE digital audio networking and HDMI 2.1 (8K Ultra HD) AV switching with support for Dolby Vision and HDR10+ dynamic video, plus IMAX Enhanced certification. Network and Bluetooth streaming are included with Google Chromecast built-in, Apple Airplay 2, Spotify Connect and Tidal Connect, plus it is Roon Ready with Hi-Res and MQA support. Full external control allows for complete and easy system integration.

Dolby ATMOS, DTS:X, IMAX Enhanced & Auro-3D Immersive Audio Decoding

Dolby ATMOS, DTS:X, IMAX Enhanced & Auro-3D Immersive Audio Decoding

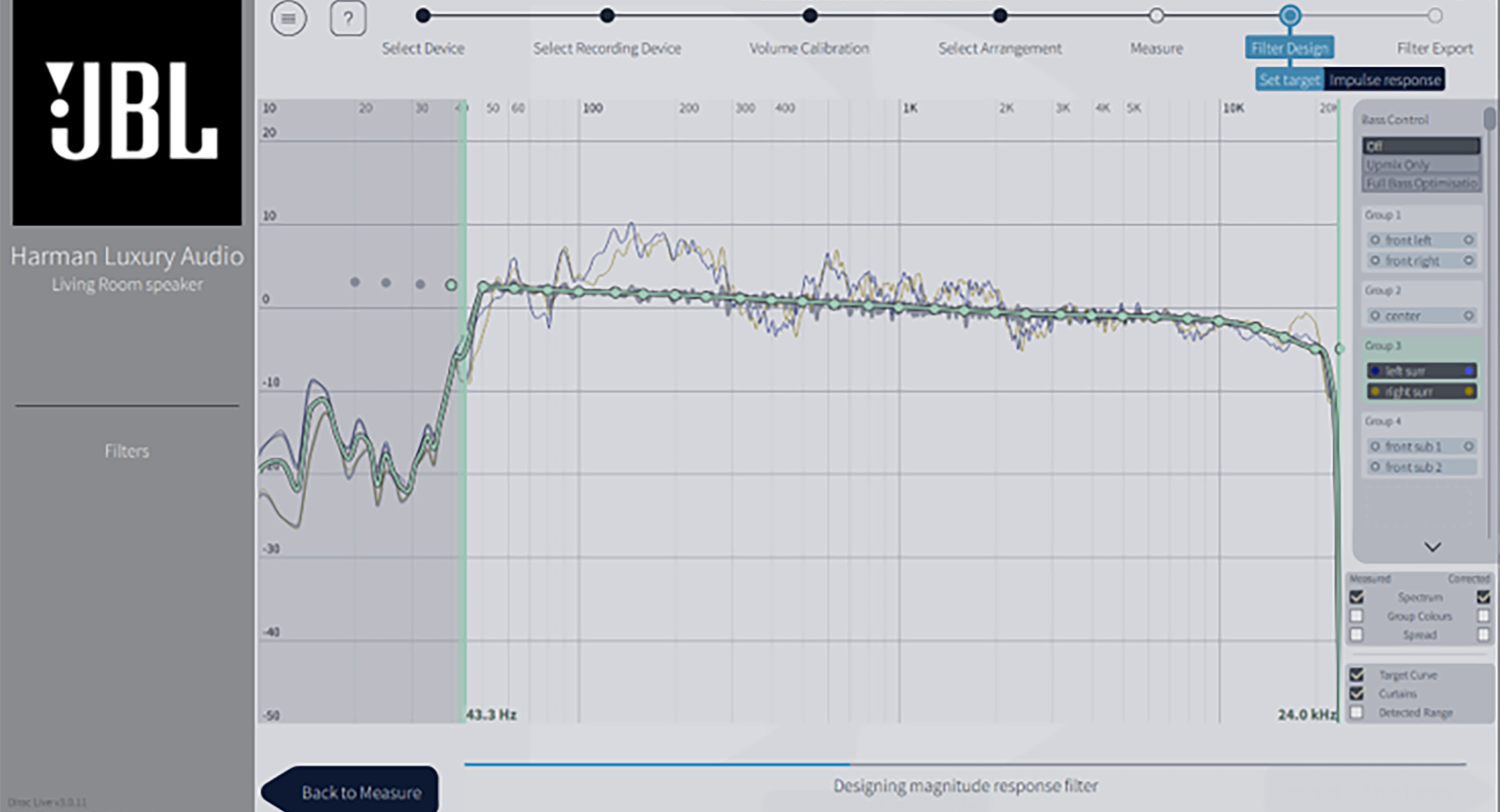

DIRAC Live with Bass Control Room EQ

DIRAC Live with Bass Control Room EQ

HDMI 2.1 8K Ultra HD with 8 Inputs and 2 Outputs, Plus Dolby Vision and HDR10+ Compatibility

HDMI 2.1 8K Ultra HD with 8 Inputs and 2 Outputs, Plus Dolby Vision and HDR10+ Compatibility

IMAX Enhanced Certification

IMAX Enhanced Certification

Bluetooth and Network streaming included with Google Chromecast built-in, Apple Airplay 2, Spotify Connect and Tidal Connect

Bluetooth and Network streaming included with Google Chromecast built-in, Apple Airplay 2, Spotify Connect and Tidal Connect

Roon Ready with Hi-Res Audio and MQA support.

Roon Ready with Hi-Res Audio and MQA support.

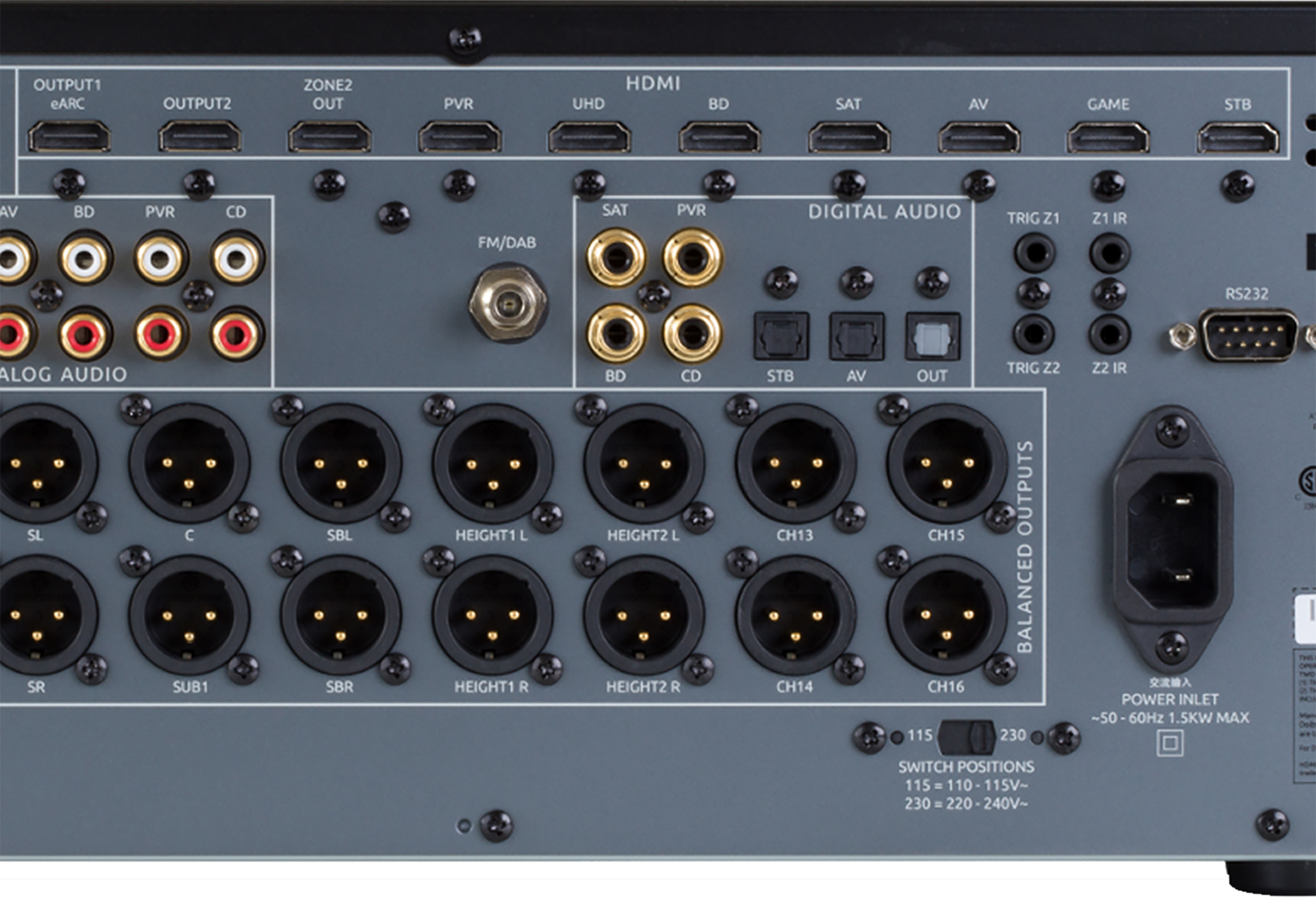

16 XLR Balanced and 16 RCA Unbalanced Analog Outputs

16 XLR Balanced and 16 RCA Unbalanced Analog Outputs

DANTE™ Digital Audio Networking

DANTE™ Digital Audio Networking

Specifications

General Specifications

Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.1dB
Single-Ended nominal output level 1V RMS (max. 5V RMS)
Balanced nominal output level 2V RMS (max. 10V RMS)
THD+N (20Hz—20kHz) –100dB
Maximum output level into 32Ω 5Vrms
Recommended headphone impedance 16Ω-64Ω
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 10.7kg
Weight (packed) 14.0kg
  • SDP-58 - Black - 16-channel Immersive Surround Sound AV Preamplifier - Hero

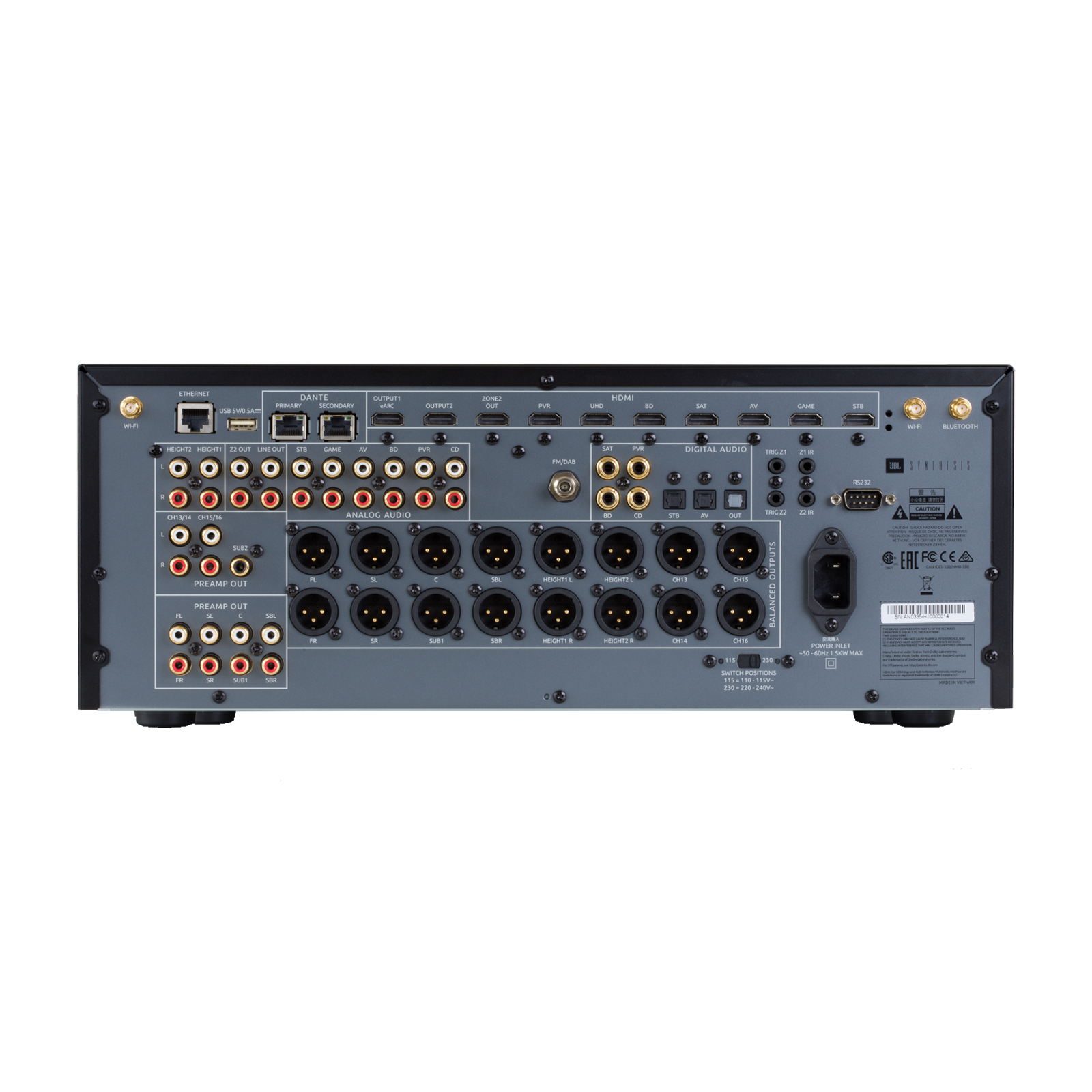

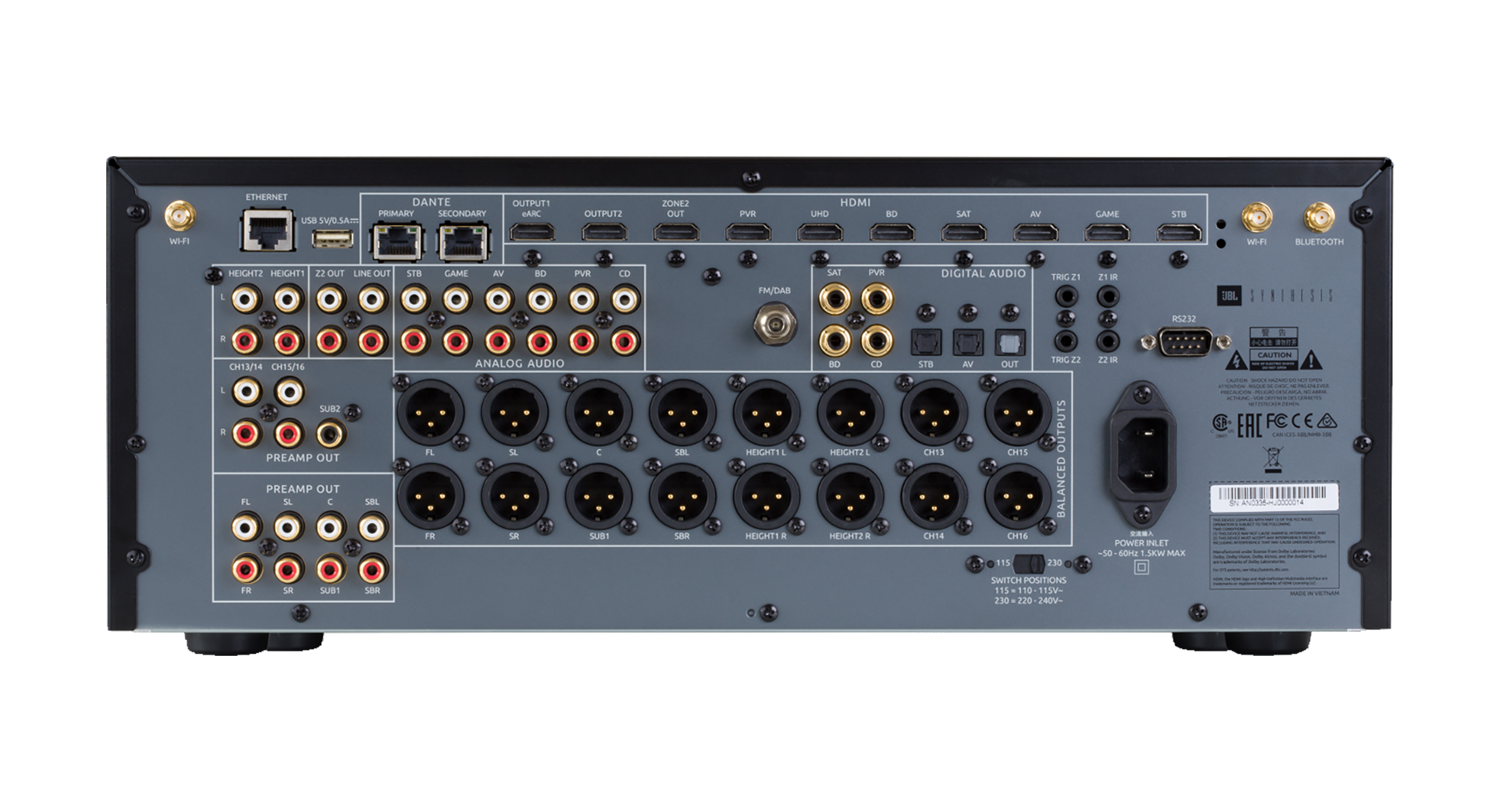

  • SDP-58 - Black - 16-channel Immersive Surround Sound AV Preamplifier - Back
